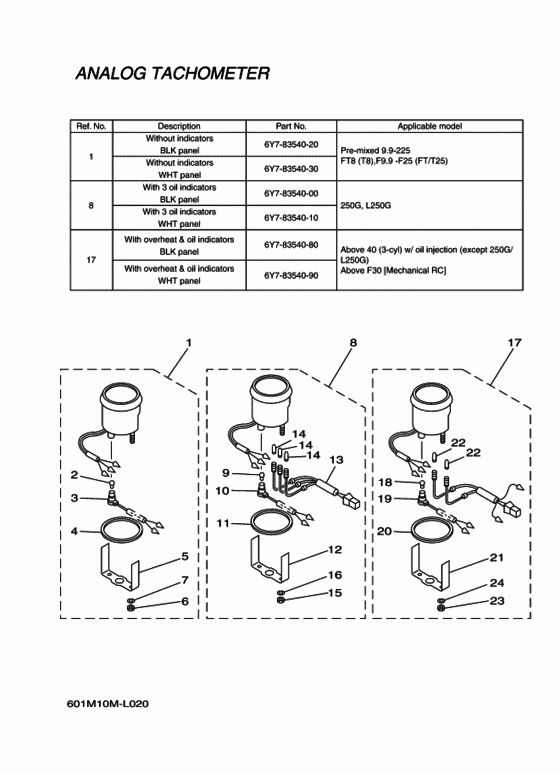

Meter 2 Diagram Yamaha Accessories
- Year
- 2013
- Model
- RIGGING METER
- Model code
- 601M
- Year
- 2013
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y7-83540-20-00 Tachometer AssyUR WITHOUT OIL LAMP |
6Y7-83540-20-00 |
US $348.16 |
||
|
1
|
1
6Y7-83540-30-00 Tachometer AssyUR WITHOUT OIL LAMP |
6Y7-83540-30-00 |
US $288.28 |
||
|
2
|
2
6Y5-83517-00-00 Bulb (T10, 12V-17W) |
6Y5-83517-00-00 |
from US $3.26 |
||
| replacement | |||||
|
2
|
2
3GM-83517-00-00 Bulb (12V-1.7W) |
3GM-83517-00-00 |
from US $3.26 |
||
|
3
|
3
6Y5-83536-40-00 Socket, MeterFOR 6Y7-83540-20 |
6Y5-83536-40-00 |
from US $10.34 |
||
|
3
|
3
6Y5-83536-10-00 Socket, MeterFOR 6Y7-83540-30 |
6Y5-83536-10-00 |
from US $10.34 |
||
| replacement | |||||
|
3
|
3
688-83536-00-00 Socket, MeterFOR 6Y7-83540-30 |
688-83536-00-00 |
from US $11.76 |
||
|
4
|
4
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
5
|
5
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
6
|
6
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
6Y7-83540-00-00 Tachometer AssyUR WITH OIL LAMP |
6Y7-83540-00-00 |
US $288.28 |
||
|
8
|
8
6Y7-83540-10-00 Tachometer AssyUR WITH OIL LAMP |
6Y7-83540-10-00 |
US $288.28 |
||
|
9
|
9
6Y5-83517-00-00 Bulb (T10, 12V-17W) |
6Y5-83517-00-00 |
from US $3.26 |
||
| replacement | |||||
|
9
|
9
3GM-83517-00-00 Bulb (12V-1.7W) |
3GM-83517-00-00 |
from US $3.26 |
||
|
10
|
10
6Y5-83536-40-00 Socket, Meter |
6Y5-83536-40-00 |
from US $10.34 |
||
|
11
|
11
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
12
|
12
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
13
|
13
6Y5-83509-03-00 Socket Cord Assy |
6Y5-83509-03-00 |
US $35.99 |
||
|
14
|
14
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
14
|
14
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $4.99 |
||
|
15
|
15
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
92903-05100-00 Washer, Spring |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
6Y7-83540-80-00 Tachometer AssyUR WITH OIL/TEMP LAMP |
6Y7-83540-80-00 |
US $348.16 |
||
|
17
|
17
6Y7-83540-90-00 Tachometer AssyUR WITH OIL/TEMP LAMP |
6Y7-83540-90-00 |
US $399.65 |
||
| replacements | |||||
|
17
|
17
6Y7-83540-91-00 PRO SERIES II TACH WHTUR WITH OIL/TEMP LAMP |
6Y7-83540-91-00 |
US $399.65 |
||
|
17
|
17
6Y7-83540-92-00 Tachometer AssyUR WITH OIL/TEMP LAMP |
6Y7-83540-92-00 |
US $747.23 |
||
|
18
|
18
6Y5-83517-00-00 Bulb (T10, 12V-17W) |
6Y5-83517-00-00 |
from US $3.26 |
||
| replacement | |||||
|
18
|
18
3GM-83517-00-00 Bulb (12V-1.7W) |
3GM-83517-00-00 |
from US $3.26 |
||
|
19
|
19
6Y5-83536-40-00 Socket, Meter |
6Y5-83536-40-00 |
from US $10.34 |
||
|
20
|
20
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
21
|
21
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
22
|
22
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
22
|
22
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $4.99 |
||
|
23
|
23
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
24
|
24
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
