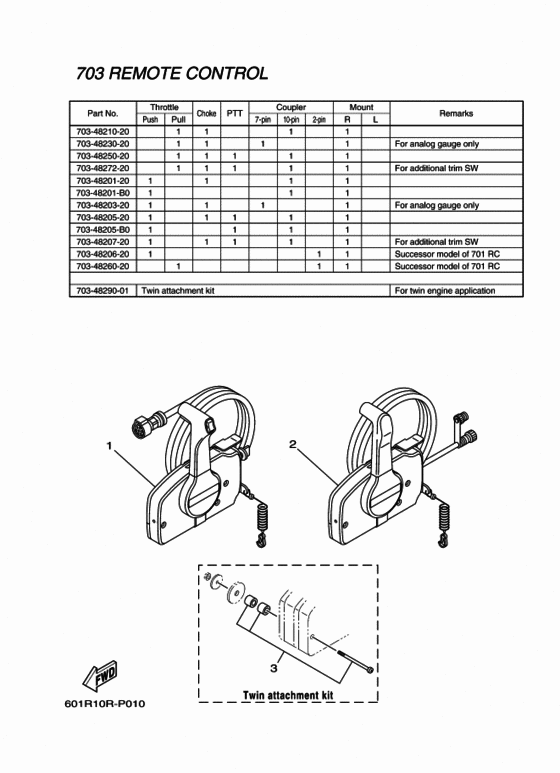

Remote control box 1 Diagram Yamaha Accessories
- Year
- 2015
- Model
- RIGGING REMOCON
- Model code
- 601R
- Year
- 2015
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
703-48210-20-00 Remote Control Assy (10P)UR WITHOUT PT/T SW. |
703-48210-20-00 |
US $906.84 |
||
|
1
|
1
703-48230-20-00
Remote Control Assy (7P)
UR WITHOUT PT/T SW. |
703-48230-20-00 |
— | ||
| replacements | |||||
|
1
|
1
703-48230-21-00 Remote Control :obUR WITHOUT PT/T SW. |
703-48230-21-00 |
US $842.16 |
||
|
1
|
1
703-48230-24-00 Remote Control Assy (7P)UR WITHOUT PT/T SW. |
703-48230-24-00 |
US $595.35 |
||
|
1
|
1
703-48250-20-00 Remote Control Assy (10P, Ptt)UR WITH PT/T SW. |
703-48250-20-00 |
US $953.04 |
||
|
1
|
1
703-48272-20-00 Remote Control Assy (10P, Ptt)UR WITH PT/T SW. |
703-48272-20-00 |
US $945.12 |
||
|
1
|
1
703-48201-20-00 Remote Control Assy (10P)UR WITHOUT PT/T SW. |
703-48201-20-00 |
US $842.16 |
||
| replacement | |||||
|
1
|
1
703-48201-21-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48201-21-00 |
US $842.16 |
||
|
1
|
1
703-48201-B0-00 Remote Control Assy (10P)UR WITHOUT PT/T SW. |
703-48201-B0-00 |
US $704.88 |
||
|
1
|
1
703-48203-20-00 Remote Control Assy (7P)UR WITHOUT PT/T SW. |
703-48203-20-00 |
US $842.16 |
||
|
1
|
1
703-48205-20-00 Remote Control Assy (10P, Ptt)UR WITH PT/T SW. |
703-48205-20-00 |
from US $619.65 |
||
|
1
|
1
703-48205-B0-00 Remote Control Assy (10P, Ptt)UR WITH PT/T SW. |
703-48205-B0-00 |
US $661.32 |
||
| replacements | |||||
|
1
|
1
703-48205-B1-00 Remote Control Assy (10P, Ptt)UR WITH PT/T SW. |
703-48205-B1-00 |
US $661.32 |
||
|
1
|
1
703-48205-B5-00 Remote Control Assy (10P, Ptt)UR WITH PT/T SW. |
703-48205-B5-00 |
from US $582.60 |
||
|
1
|
1
703-48207-20-00 Remote Control Assy (10P, Ptt)UR WITH PT/T SW. |
703-48207-20-00 |
US $798.60 |
||
| replacements | |||||
|
1
|
1
703-48207-22-00 703 SIDE/MNT ES W/TRUR WITH PT/T SW. |
703-48207-22-00 |
US $798.60 |
||
|
1
|
1
703-48207-25-00 REMOTE CONTROL ASSY 10P PTTUR WITH PT/T SW. |
703-48207-25-00 |
from US $584.36 |
||
|
2
|
2
703-48206-20-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48206-20-00 |
US $510.14 |
||
| replacement | |||||
|
2
|
2
703-48206-23-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48206-23-00 |
US $595.35 |
||
|
2
|
2
703-48260-20-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48260-20-00 |
US $564.96 |
||
| replacements | |||||
|
2
|
2
703-48260-23-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48260-23-00 |
US $530.55 |
||
|
2
|
2
703-48260-23-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48260-23-00 |
US $530.55 |
||
|
3
|
3
703-48290-01-00 Twin AttachmentFOR TWIN |
703-48290-01-00 |
US $59.69 |
||
