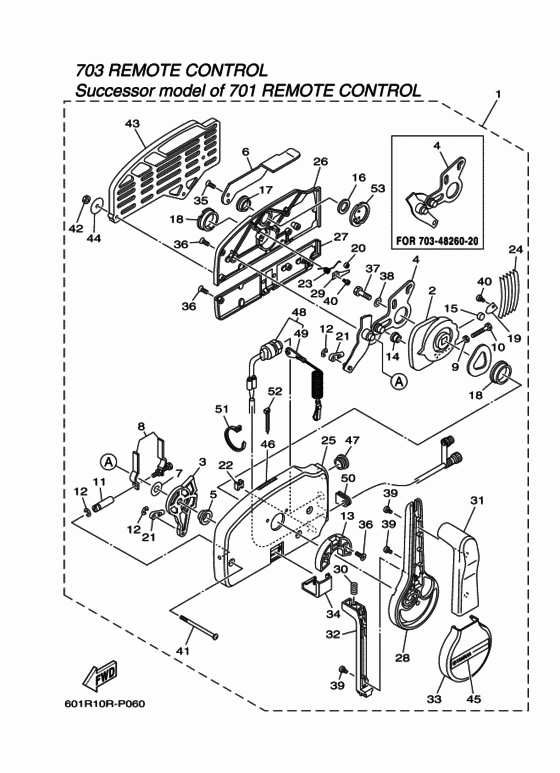

Remote control assy 3 Diagram Yamaha Accessories
- Year
- 2016
- Model
- RIGGING REMOCON
- Model code
- 601R
- Year
- 2016
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
703-48206-20-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48206-20-00 |
US $510.14 |
||
| replacement | |||||
|
1
|
1
703-48206-23-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48206-23-00 |
US $595.35 |
||
|
1
|
1
703-48260-20-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48260-20-00 |
US $564.96 |
||
| replacements | |||||
|
1
|
1
703-48260-23-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48260-23-00 |
US $530.55 |
||
|
1
|
1
703-48260-23-00 Remote Control AssyUR WITHOUT PT/T SW. |
703-48260-23-00 |
US $530.55 |
||
|
2
|
2
703-48232-00-00 Gear |
703-48232-00-00 |
from US $33.86 |
||
|
3
|
3
703-48271-00-00 Arm, Shift |
703-48271-00-00 |
from US $15.16 |
||
|
4
|
4
703-48261-01-00 Arm, ThrottleFOR 703-48206-20 |
703-48261-01-00 |
from US $79.58 |
||
|
4
|
4
703-48261-11-00 Arm, ThrottleFOR 703-48260-20 |
703-48261-11-00 |
from US $79.58 |
||
|
5
|
5
703-48235-00-00 Bushing |
703-48235-00-00 |
from US $3.54 |
||
|
6
|
6
703-48152-10-00 Knob, Free Accel |
703-48152-10-00 |
from US $12.89 |
||
|
7
|
7
703-48268-00-00 Spacer |
703-48268-00-00 |
from US $1.56 |
||
|
8
|
8
703-48264-00-00 Friction, Throttle |
703-48264-00-00 |
from US $11.76 |
||
|
9
|
9
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
97380-05025-00 Bolt |
97380-05025-00 |
US $4.11 |
||
| replacements | |||||
|
10
|
10
970-95050-25-00
Bolt, Hexagon
|
970-95050-25-00 |
— | ||
|
10
|
10
970-80050-25-00
Bolt, Hexagon
|
970-80050-25-00 |
— | ||
|
11
|
11
703-48265-00-00 Shaft, Friction |
703-48265-00-00 |
from US $3.74 |
||
|
12
|
12
93430-06024-00 Circlip |
93430-06024-00 |
from US $2.13 |
||
|
13
|
13
703-48245-00-00 Plate, Lock |
703-48245-00-00 |
from US $6.80 |
||
|
14
|
14
703-48252-00-00 Roller, Cam |
703-48252-00-00 |
from US $6.94 |
||
|
15
|
15
701-48248-00-00 Roller, Free Accel |
701-48248-00-00 |
from US $1.98 |
||
|
16
|
16
703-48198-00-00 Washer, Wave |
703-48198-00-00 |
from US $1.56 |
||
|
17
|
17
703-48243-00-00 Bushing |
703-48243-00-00 |
from US $1.70 |
||
|
18
|
18
703-48236-00-00 Bushing 1 |
703-48236-00-00 |
from US $1.34 |
||
|
19
|
19
703-48189-00-00 Retainer |
703-48189-00-00 |
from US $2.13 |
||
|
20
|
20
703-48234-00-00 Roller, Detent |
703-48234-00-00 |
from US $2.55 |
||
|
21
|
21
703-48345-01-00 Cable End, Remote Control 2 |
703-48345-01-00 |
from US $4.39 |
||
|
22
|
22
703-48358-00-00 Anchor, Cable |
703-48358-00-00 |
US $3.26 |
||
|
23
|
23
703-48244-00-00 Spring, Free Accel |
703-48244-00-00 |
from US $2.41 |
||
|
24
|
24
703-48238-00-00 Spring, Detent |
703-48238-00-00 |
from US $1.56 |
||
|
25
|
25
703-48211-10-00 Housing,1 |
703-48211-10-00 |
from US $90.49 |
||
|
26
|
26
703-48212-10-00 Back Plate 1 |
703-48212-10-00 |
from US $51.12 |
||
|
27
|
27
703-48213-10-00 Back Plate 2 |
703-48213-10-00 |
from US $28.48 |
||
|
28
|
28
703-48221-10-00 Lever, Control |
703-48221-10-00 |
from US $51.53 |
||
|
29
|
29
703-48246-00-00 Spacer |
703-48246-00-00 |
from US $2.98 |
||
|
30
|
30
703-48227-00-00 Spring, Neutral Lock |
703-48227-00-00 |
from US $2.13 |
||
|
31
|
31
703-48222-30-00 Grip, Control LeverWITHOUT PT/T SW. |
703-48222-30-00 |
from US $15.16 |
||
|
32
|
32
703-48223-10-00 Lock, Neutral |
703-48223-10-00 |
from US $13.46 |
||
|
33
|
33
703-48225-10-00 Cover |
703-48225-10-00 |
from US $7.93 |
||
|
34
|
34
703-48219-10-00 Cover, Lead |
703-48219-10-00 |
from US $4.39 |
||
|
35
|
35
703-48281-00-00 Screw |
703-48281-00-00 |
from US $6.94 |
||
|
36
|
36
703-44189-20-00 Screw |
703-44189-20-00 |
from US $1.98 |
||
|
37
|
37
973-80080-30-00
Bolt
|
973-80080-30-00 |
— | ||
| replacement | |||||
|
37
|
37
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
38
|
38
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
39
|
39
703-48128-10-00 Screw 2 |
703-48128-10-00 |
from US $2.13 |
||
|
40
|
40
98580-04006-00 Screw, Pan Head |
98580-04006-00 |
from US $1.56 |
||
|
41
|
41
703-44189-30-00 Screw |
703-44189-30-00 |
from US $5.67 |
||
|
42
|
42
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
43
|
43
703-48293-10-00 Spacer, Remote ControlSINGLE |
703-48293-10-00 |
US $32.44 |
||
|
44
|
44
701-48287-00-00 Washer |
701-48287-00-00 |
from US $4.53 |
||
|
45
|
45
703-48215-10-00
Graphic
|
703-48215-10-00 |
— | ||
| replacement | |||||
|
45
|
45
703-48215-11-00 Graphic |
703-48215-11-00 |
from US $17.28 |
||
|
46
|
46
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
from US $4.68 |
||
|
47
|
47
703-48138-00-00 Cap, Lock Arm |
703-48138-00-00 |
US $12.76 |
||
|
48
|
48
701-82575-53-00 Engine Stop Switch Assy |
701-82575-53-00 |
US $65.76 |
||
|
49
|
49
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
50
|
50
703-48284-20-00
Grommet
|
703-48284-20-00 |
— | ||
|
51
|
51
703-82591-00-00
Band
|
703-82591-00-00 |
— | ||
| replacement | |||||
|
51
|
51
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
52
|
52
703-82592-00-00
Band
|
703-82592-00-00 |
— | ||
| replacement | |||||
|
52
|
52
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
53
|
53
703-48153-00-00 Shaft, Free Accel |
703-48153-00-00 |
from US $21.54 |
||
