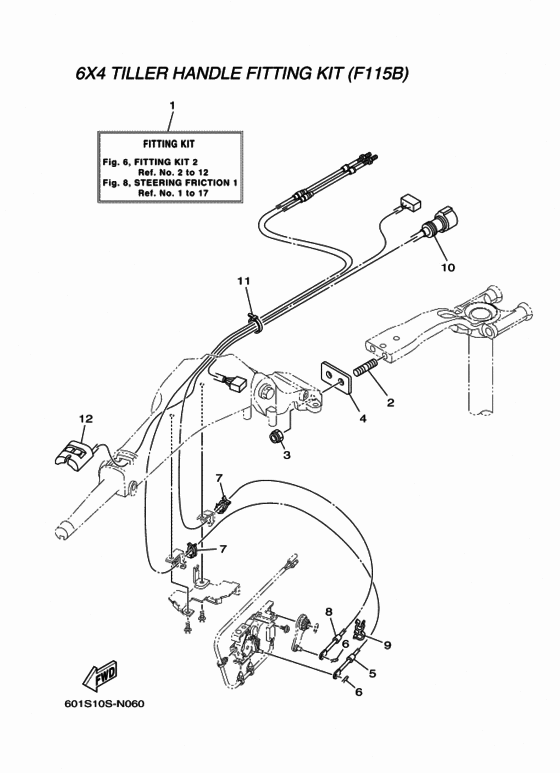

Fitting kit 2 Diagram Yamaha Accessories
- Year
- 2015
- Model
- RIGGING STEERING
- Model code
- 601S
- Year
- 2015
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6X4-42102-C0-00
Fitting Kit
LM |
6X4-42102-C0-00 |
— | ||
| replacements | |||||
|
1
|
1
6X4-42102-C1-00
Fitting Kit F115B
LM |
6X4-42102-C1-00 |
— | ||
|
1
|
1
6X4-42102-H1-00
Fitting Kit F115B
LM |
6X4-42102-H1-00 |
— | ||
|
1
|
1
6X4-42102-H3-00 Fitting Kit F115BLM |
6X4-42102-H3-00 |
US $571.05 |
||
|
1
|
1
6X4-42102-H3-00 Fitting Kit F115BLM |
6X4-42102-H3-00 |
US $571.05 |
||
|
2
|
2
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
3
|
3
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
4
|
4
6EK-42121-00-00 Bracket |
6EK-42121-00-00 |
from US $39.38 |
||
|
5
|
5
6EK-48321-00-00 Cable |
6EK-48321-00-00 |
from US $93.95 |
||
|
6
|
6
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
7
|
7
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
8
|
8
6EK-26301-00-00 Throttle Cable Assy |
6EK-26301-00-00 |
from US $115.78 |
||
|
9
|
9
90464-09M42-00 Clamp |
90464-09M42-00 |
from US $3.68 |
||
|
10
|
10
6X4-82586-10-00 Ext., Wire Harness (L:950Mm) |
6X4-82586-10-00 |
US $316.39 |
||
|
11
|
11
904-6513M-24-00
Band, Switch Cord
|
904-6513M-24-00 |
— | ||
| replacement | |||||
|
11
|
11
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
12
|
12
6X4-81860-00-00 Switch Assy |
6X4-81860-00-00 |
from US $149.21 |
||
