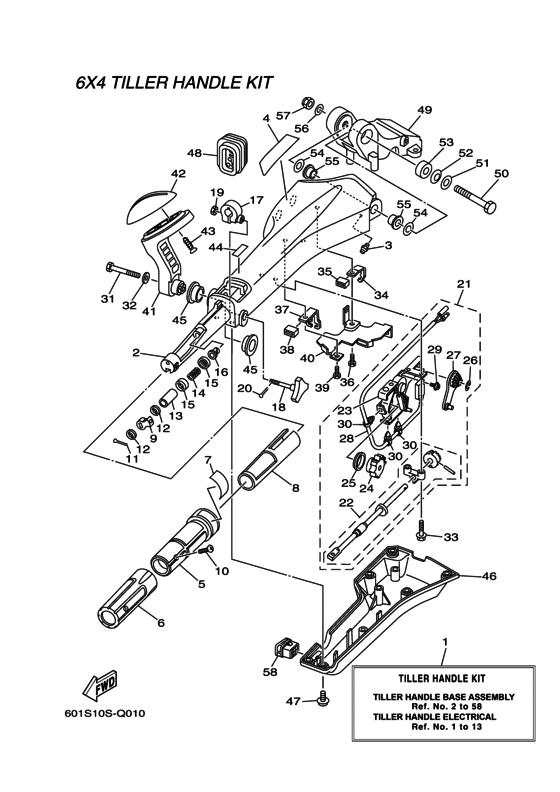

Tiller Handle Base Assembly Diagram Yamaha Accessories
- Year
- 2016
- Model
- RIGGING STEERING
- Year
- 2016
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6X4-42103-55-00
Steering Handle :ob
LM |
6X4-42103-55-00 |
— | ||
| replacements | |||||
|
1
|
1
6X4-42103-56-00
HANDLE, STEERING MAI
LM |
6X4-42103-56-00 |
— | ||
|
1
|
1
6X4-42103-58-00
6X4-42103-5B-00
LM |
6X4-42103-58-00 |
— | ||
|
1
|
1
6X4-42103-5B-00
Handle, Steering Mai
LM |
6X4-42103-5B-00 |
— | ||
|
1
|
1
6X4-42103-5C-00 Handle, Steering Main AssyLM |
6X4-42103-5C-00 |
US $866.70 |
||
|
1
|
1
6X4-42103-5C-00 Handle, Steering Main AssyLM |
6X4-42103-5C-00 |
US $866.70 |
||
|
2
|
2
6X4-42111-02-8D Handle, Steering |
6X4-42111-02-8D |
from US $244.54 |
||
|
3
|
3
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
4
|
4
6X4-48215-00-00 Graphic |
6X4-48215-00-00 |
from US $7.65 |
||
|
5
|
5
6X4-42119-01-00 Grip, Steering Handle |
6X4-42119-01-00 |
from US $31.88 |
||
|
6
|
6
6X4-42177-00-00 Rubber, Handle |
6X4-42177-00-00 |
US $15.68 |
||
|
7
|
7
6X4-42137-00-00 Indicator, Throttle |
6X4-42137-00-00 |
from US $4.39 |
||
|
8
|
8
6X4-41291-00-00 Bushing |
6X4-41291-00-00 |
from US $7.23 |
||
|
9
|
9
6X4-44139-01-00 Collar |
6X4-44139-01-00 |
from US $16.86 |
||
|
10
|
10
901-52050-07-00 Screw, Countersunk |
901-52050-07-00 |
from US $2.55 |
||
|
11
|
11
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
12
|
12
6X4-44177-00-00 Washer |
6X4-44177-00-00 |
from US $1.42 |
||
|
13
|
13
6X4-42128-00-00 Collar, Distance 1 |
6X4-42128-00-00 |
from US $7.93 |
||
|
14
|
14
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
15
|
15
6X4-44188-00-00 Washer |
6X4-44188-00-00 |
from US $2.64 |
||
|
16
|
16
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
17
|
17
63D-42126-00-00 Friction, Steering Handle Grip |
63D-42126-00-00 |
from US $10.77 |
||
|
18
|
18
6X4-48154-00-00 Knob, Throttle |
6X4-48154-00-00 |
from US $31.88 |
||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
21
|
21
6X4-44100-01-00 Shift Link Assy |
6X4-44100-01-00 |
from US $514.23 |
||
|
22
|
22
6X4-42115-00-00 Shaft, Steering Handle |
6X4-42115-00-00 |
from US $137.47 |
||
|
23
|
23
6X4-44102-00-00 Shift Assist Assy |
6X4-44102-00-00 |
from US $185.13 |
||
|
24
|
24
6X4-47731-01-00 Gear, Drive |
6X4-47731-01-00 |
from US $53.61 |
||
|
25
|
25
6X4-44132-00-00 Bushing |
6X4-44132-00-00 |
from US $8.08 |
||
|
26
|
26
6X4-14137-00-00 Clip |
6X4-14137-00-00 |
from US $2.69 |
||
|
27
|
27
6X4-48261-00-00 Arm, Throttle |
6X4-48261-00-00 |
from US $57.34 |
||
|
28
|
28
6X4-82540-00-00 Neutral Switch Assy |
6X4-82540-00-00 |
from US $117.57 |
||
|
29
|
29
703-48129-00-00 Screw 3 |
703-48129-00-00 |
from US $1.07 |
||
|
30
|
30
6X4-42821-00-00 Band, Clamp |
6X4-42821-00-00 |
from US $1.56 |
||
|
31
|
31
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.68 |
||
|
32
|
32
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
33
|
33
97595-06530-00 Bolt, With Washer |
97595-06530-00 |
US $0.79 |
||
| replacement | |||||
|
33
|
33
97E95-06530-00 Bolt, Hexagon W/w De |
97E95-06530-00 |
from US $0.79 |
||
|
34
|
34
6X4-48538-00-00 Clamp, Cable 1 |
6X4-48538-00-00 |
from US $7.65 |
||
|
35
|
35
6X4-26367-00-00 Protector |
6X4-26367-00-00 |
US $4.39 |
||
|
36
|
36
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
36
|
36
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
37
|
37
6X4-48538-10-00 Clamp, Cable 1 |
6X4-48538-10-00 |
from US $7.65 |
||
|
38
|
38
6X4-26367-00-00 Protector |
6X4-26367-00-00 |
US $4.39 |
||
|
39
|
39
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
39
|
39
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
40
|
40
6X4-42159-00-00 Stay |
6X4-42159-00-00 |
from US $37.99 |
||
|
41
|
41
6X4-44159-00-8D Handle, Gear Shift |
6X4-44159-00-8D |
US $88.84 |
||
| replacements | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
6X4-44159-A0-8D Handle, Gear Shift |
6X4-44159-A0-8D |
from US $88.84 |
||
|
41
|
41
6X4-44159-A0-8D Handle, Gear Shift |
6X4-44159-A0-8D |
from US $88.84 |
||
|
42
|
42
6X4-44173-00-00 Lever, Shift Control |
6X4-44173-00-00 |
from US $10.63 |
||
|
43
|
43
97780-60920-00 Screw, Tapping |
97780-60920-00 |
from US $3.26 |
||
|
44
|
44
6G8-44191-00-00 Indicator, Shift |
6G8-44191-00-00 |
from US $7.93 |
||
|
45
|
45
90386-26MA3-00 Bush |
90386-26MA3-00 |
from US $7.51 |
||
|
46
|
46
6X4-42131-01-00 Cover, Handle Steering |
6X4-42131-01-00 |
from US $14.31 |
||
|
47
|
47
97985-06216-00 Screw, With Washer |
97985-06216-00 |
from US $1.42 |
||
|
48
|
48
6X4-42725-01-00 Grommet |
6X4-42725-01-00 |
from US $12.18 |
||
|
49
|
49
63D-42121-22-8D Bracket |
63D-42121-22-8D |
from US $176.84 |
||
| replacement | |||||
|
49
|
49
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
50
|
50
90101-12014-00 Bolt |
90101-12014-00 |
from US $19.98 |
||
|
51
|
51
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
52
|
52
90206-12M22-00 Washer, Wave |
90206-12M22-00 |
from US $7.51 |
||
|
53
|
53
90387-12M02-00 Collar |
90387-12M02-00 |
from US $16.09 |
||
|
54
|
54
90201-12035-00 Washer, Plate |
90201-12035-00 |
from US $2.55 |
||
|
55
|
55
90386-12003-00 Bush |
90386-12003-00 |
from US $5.13 |
||
|
56
|
56
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
57
|
57
90185-12M12-00 Nut, Self-Locking |
90185-12M12-00 |
from US $12.80 |
||
|
58
|
58
6X4-42728-10-00 Cap |
6X4-42728-10-00 |
from US $3.26 |
||
