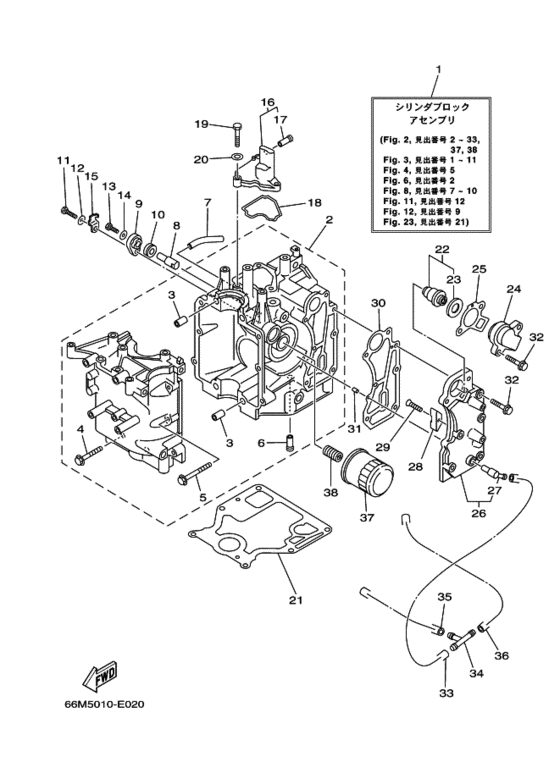

ｼﾘﾝﾀﾞ & ｸﾗﾝｸｹｰｽ 1 Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2006
- Model
- F15A
- Model code
- 66M
- Year
- 2006
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Japan (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66M-W009B-04-1S Cylinder Block Assy |
66M-W009B-04-1S |
US $2,334.36 |
||
| replacement | |||||
|
1
|
1
66M-W009B-05-1S Cylinder Block Assy (With Reli |
66M-W009B-05-1S |
from US $2,334.36 |
||
|
2
|
2
66M-15100-02-1S Crankcase Assyクランクケースアセンブリ; |
66M-15100-02-1S |
US $784.94 |
||
| replacement | |||||
|
2
|
2
66M-15100-03-00 Crankcase Assyクランクケースアセンブリ; |
66M-15100-03-00 |
from US $784.94 |
||
|
3
|
3
995-10101-14-00
Pin, Dowel
．ピン，ダウエル; |
995-10101-14-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-10114-00 Pin, Dowel．ピン，ダウエル; |
99530-10114-00 |
from US $1.66 |
||
|
4
|
4
90119-08M66-00 Bolt, With Washer．ボルト，ウイズワツシヤ; |
90119-08M66-00 |
from US $5.22 |
||
|
5
|
5
90119-06M14-00 Bolt, With Washer．ボルト，ウイズワツシヤ; |
90119-06M14-00 |
from US $9.35 |
||
|
6
|
6
6E5-24377-00-00 Pipe, Joint 2．パイプ，ジヨイント ３; |
6E5-24377-00-00 |
from US $9.07 |
||
|
7
|
7
90445-10M46-00 Hose (L65)ホース ; Ｌ６５ |
90445-10M46-00 |
from US $3.68 |
||
| replacement | |||||
|
7
|
7
904-45107-52-00 Hose (L170)ホース ; Ｌ６５ |
904-45107-52-00 |
from US $3.68 |
||
|
8
|
8
66M-11325-00-00 Anodeアノード; |
66M-11325-00-00 |
from US $7.93 |
||
|
9
|
9
66M-11327-00-94 Cover, Anode |
66M-11327-00-94 |
from US $5.24 |
||
|
10
|
10
66M-11328-00-00 Grommet, Anode |
66M-11328-00-00 |
US $1.84 |
||
|
11
|
11
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
11
|
11
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
12
|
12
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
97095-05012-00 Boltボルト; |
97095-05012-00 |
from US $1.55 |
||
|
14
|
14
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
66M-12535-00-00 Plate |
66M-12535-00-00 |
from US $3.54 |
||
|
16
|
16
66M-11168-00-1S Cover, Breatherカバー，ブリーザ; |
66M-11168-00-1S |
from US $35.10 |
||
|
17
|
17
6E5-24377-00-00 Pipe, Joint 2．パイプ，ジヨイント ３; |
6E5-24377-00-00 |
from US $9.07 |
||
|
18
|
18
66M-11357-00-00 Seal, Cylinder 3シール，シリンダ ３; |
66M-11357-00-00 |
from US $5.95 |
||
|
19
|
19
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
19
|
19
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
20
|
20
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
21
|
21
66M-11351-10-00 Gasket, Cylinder |
66M-11351-10-00 |
from US $38.36 |
||
|
22
|
22
66M-12411-01-00 Thermostatサーモスタツト; |
66M-12411-01-00 |
from US $40.34 |
||
|
23
|
23
688-12412-00-00 Seal, Thermostat．シール，サーモスタツト; |
688-12412-00-00 |
from US $3.40 |
||
|
24
|
24
6H3-12413-00-1S Cover, Thermostatカバー，サーモスタツト; |
6H3-12413-00-1S |
from US $29.47 |
||
|
25
|
25
62Y-12414-00-00 Gasket, Coverガスケツト，カバー; |
62Y-12414-00-00 |
from US $4.68 |
||
| replacement | |||||
|
25
|
25
62Y-12414-01-00 GASKET COVERガスケツト，カバー; |
62Y-12414-01-00 |
from US $4.68 |
||
|
26
|
26
66M-41113-20-1S
Outer Cover, Exhaust
アウタカバー，エキゾースト; |
66M-41113-20-1S |
— | ||
|
27
|
27
676-11372-00-00 Nipple, Hose．ニツプル，ホース; |
676-11372-00-00 |
from US $8.28 |
||
|
28
|
28
6E5-11325-00-00 Anodeアノード; |
6E5-11325-00-00 |
from US $4.96 |
||
|
29
|
29
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
29
|
29
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.34 |
||
|
30
|
30
66M-41114-01-00 Gasket, Exhaust Outer Coverガスケツト，エキゾーストアウタカバー; |
66M-41114-01-00 |
from US $21.06 |
||
|
31
|
31
93604-12M07-00 Pin, Dowelピン，ダウエル; |
93604-12M07-00 |
US $1.84 |
||
| replacement | |||||
|
31
|
31
93604-10M03-00 Pin, Dowelピン，ダウエル; |
93604-10M03-00 |
from US $1.66 |
||
|
32
|
32
90119-06MA4-00 Bolt, With Washer |
90119-06MA4-00 |
from US $1.34 |
||
|
33
|
33
90445-09061-00 Hose (L65)ホース ; Ｌ６５ |
90445-09061-00 |
from US $4.11 |
||
| replacements | |||||
|
33
|
33
90445-094K7-00 Hose (L180)ホース ; Ｌ６５ |
90445-094K7-00 |
from US $4.11 |
||
|
33
|
33
904-45090-87-00 Hose (L170)ホース ; Ｌ６５ |
904-45090-87-00 |
US $3.67 |
||
|
34
|
34
688-24378-00-00 Pipe, Joint 3パイプ，ジヨイント ４; |
688-24378-00-00 |
from US $6.94 |
||
|
35
|
35
90445-09086-00 Hose (L170)ホース ; Ｌ１７０ |
90445-09086-00 |
from US $6.52 |
||
| replacements | |||||
|
35
|
35
904-45090-F6-00 Hose (L1500)ホース ; Ｌ１７０ |
904-45090-F6-00 |
from US $6.30 |
||
|
35
|
35
904-45092-K1-00 Hose (L420)ホース ; Ｌ１７０ |
904-45092-K1-00 |
from US $4.96 |
||
|
36
|
36
90445-09104-00 Hose (L420)ホース ; Ｌ３００ |
90445-09104-00 |
from US $6.52 |
||
| replacements | |||||
|
36
|
36
904-45092-K1-00 Hose (L420)ホース ; Ｌ３００ |
904-45092-K1-00 |
from US $4.96 |
||
|
36
|
36
904-45090-F6-00 Hose (L1500)ホース ; Ｌ３００ |
904-45090-F6-00 |
from US $6.30 |
||
|
37
|
37
5GH-13440-00-00
Element Assy, Oil Cleaner
エレメントアセンブリ，オイルクリーナ; |
5GH-13440-00-00 |
— | ||
| replacement | |||||
|
37
|
37
5GH-13440-71-00 ELEMENT ASSY, OIL CLEANERエレメントアセンブリ，オイルクリーナ; |
5GH-13440-71-00 |
from US $14.99 |
||
|
38
|
38
90401-20M00-00 Bolt, Unionボルト，ユニオン; |
90401-20M00-00 |
from US $9.21 |
||
