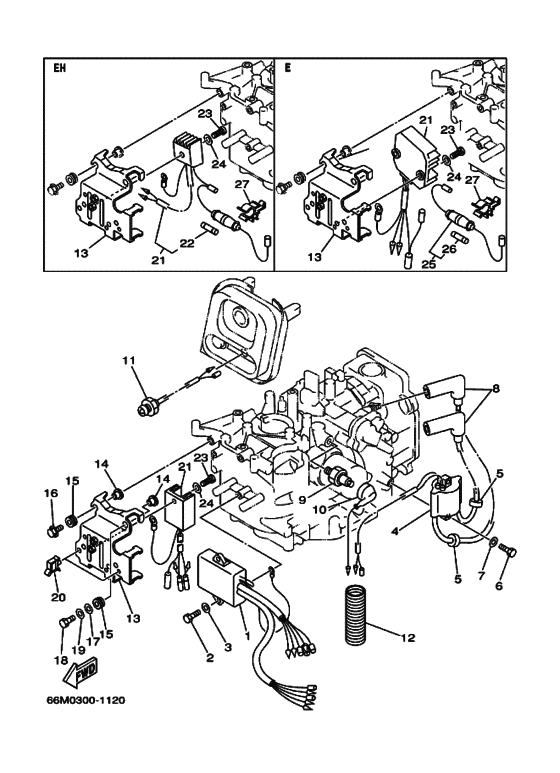

Electrical 1 Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2001
- Model
- F15A
- Model code
- 66M
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (200)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66M-85540-01-00 C.d.i. Unit Assy |
66M-85540-01-00 |
from US $263.95 |
||
|
2
|
2
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
2
|
2
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
3
|
3
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
4
|
4
66M-85570-00-00 Ignition Coil Assy |
66M-85570-00-00 |
US $124.62 |
||
| replacements | |||||
|
4
|
4
66M-85570-01-00
Ignition Coil Assy
|
66M-85570-01-00 |
— | ||
|
4
|
4
66M-85570-04-00 Ignition Coil Assy |
66M-85570-04-00 |
US $190.24 |
||
|
5
|
5
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
6
|
6
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
7
|
7
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
6G8-82370-30-00 Plug Cap Assy |
6G8-82370-30-00 |
US $20.69 |
||
|
9
|
9
62Y-82504-10-00 Oil Pressure Switch Assy |
62Y-82504-10-00 |
from US $43.52 |
||
|
10
|
10
66M-82127-10-00 Wire, Lead 2 |
66M-82127-10-00 |
from US $9.87 |
||
|
11
|
11
65W-85410-01-00 Emergency Signal Light Assy |
65W-85410-01-00 |
from US $47.79 |
||
|
12
|
12
6H1-83557-00-00 Tube |
6H1-83557-00-00 |
US $4.11 |
||
| replacement | |||||
|
12
|
12
6N7-83557-00-00 Tube (I.dia:22Mm) |
6N7-83557-00-00 |
from US $4.11 |
||
|
13
|
13
66M-85542-00-00 Bracket |
66M-85542-00-00 |
US $45.47 |
||
|
14
|
14
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.38 |
||
|
15
|
15
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $4.82 |
||
|
16
|
16
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
16
|
16
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
16
|
16
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
16
|
16
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
17
|
17
90201-06M05-00 Washer, Plate |
90201-06M05-00 |
US $1.56 |
||
| replacement | |||||
|
17
|
17
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
18
|
18
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
19
|
19
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
904-6409M-13-00
Clamp
|
904-6409M-13-00 |
— | ||
| replacement | |||||
|
20
|
20
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.84 |
||
|
21
|
21
6G1-81970-61-00
Rectifier Assy
|
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
21
|
21
6G1-81970-62-00 Rectifier Assy |
6G1-81970-62-00 |
US $88.98 |
||
|
21
|
21
6G1-81970-63-00 Rectifier Assy |
6G1-81970-63-00 |
from US $94.08 |
||
|
22
|
22
6G1-82151-00-00 Fuse (10A)10A |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $1.66 |
||
|
23
|
23
97880-05025-00 Screw, Pan Head |
97880-05025-00 |
US $1.35 |
||
| replacement | |||||
|
23
|
23
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
24
|
24
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
27
|
27
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2 |
||
