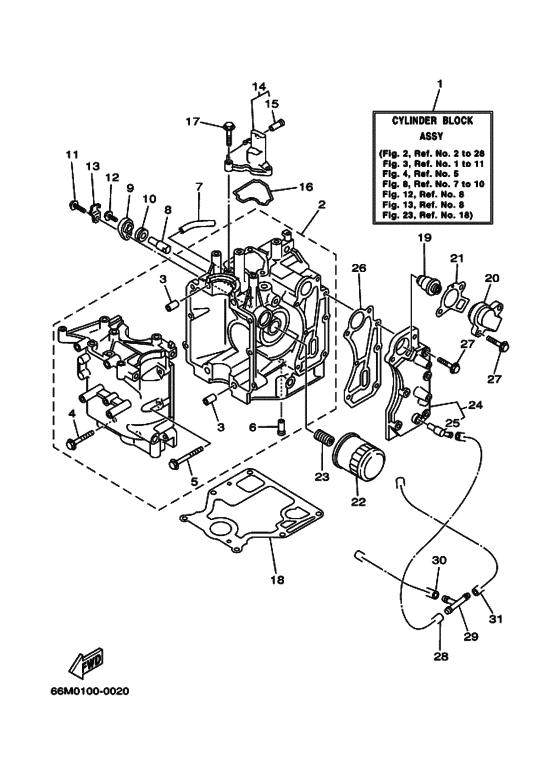

Cylinder & crankcase Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2000
- Model
- F15A
- Model code
- 66M
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (100)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66M-W009B-01-1S Cylinder Block Assy |
66M-W009B-01-1S |
US $2,334.36 |
||
| replacements | |||||
|
1
|
1
66M-W009B-05-1S Cylinder Block Assy (With Reli |
66M-W009B-05-1S |
from US $2,334.36 |
||
|
1
|
1
66M-W009B-04-1S Cylinder Block Assy |
66M-W009B-04-1S |
US $2,334.36 |
||
|
2
|
2
66M-15100-01-1S Crankcase Assy |
66M-15100-01-1S |
US $799.96 |
||
| replacement | |||||
|
2
|
2
66M-15100-03-00 Crankcase Assy |
66M-15100-03-00 |
from US $784.94 |
||
|
3
|
3
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
4
|
4
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
from US $5.22 |
||
|
5
|
5
90119-06M14-00 Bolt, With Washer |
90119-06M14-00 |
from US $9.35 |
||
|
6
|
6
6E5-24377-00-00 Pipe, Joint 2 |
6E5-24377-00-00 |
from US $9.07 |
||
|
7
|
7
90445-10M46-00 Hose (L65) |
90445-10M46-00 |
from US $3.68 |
||
| replacement | |||||
|
7
|
7
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $3.68 |
||
|
8
|
8
66M-11325-00-00 Anode |
66M-11325-00-00 |
from US $7.93 |
||
|
9
|
9
66M-11327-00-94 Cover, Anode |
66M-11327-00-94 |
from US $5.24 |
||
|
10
|
10
66M-11328-00-00 Grommet, Anode |
66M-11328-00-00 |
US $1.84 |
||
|
11
|
11
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
11
|
11
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
12
|
12
97595-05512-00 Bolt, With Washer |
97595-05512-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.55 |
||
|
13
|
13
66M-12535-00-00 Plate |
66M-12535-00-00 |
from US $3.54 |
||
|
14
|
14
66M-11168-00-1S Cover, Breather |
66M-11168-00-1S |
from US $35.10 |
||
|
15
|
15
6E5-24377-00-00 Pipe, Joint 2 |
6E5-24377-00-00 |
from US $9.07 |
||
|
16
|
16
66M-11357-00-00 Seal, Cylinder 3 |
66M-11357-00-00 |
from US $5.95 |
||
|
17
|
17
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
17
|
17
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
17
|
17
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
18
|
18
66M-11351-00-00 Gasket, Cylinder |
66M-11351-00-00 |
US $58.72 |
||
| replacement | |||||
|
18
|
18
66M-11351-10-00 Gasket, Cylinder |
66M-11351-10-00 |
from US $38.36 |
||
|
19
|
19
66M-12411-00-00 Thermostat |
66M-12411-00-00 |
US $40.34 |
||
| replacement | |||||
|
19
|
19
66M-12411-01-00 Thermostat |
66M-12411-01-00 |
from US $40.34 |
||
|
20
|
20
6H3-12413-00-1S Cover, Thermostat |
6H3-12413-00-1S |
from US $29.47 |
||
|
21
|
21
62Y-12414-00-00 Gasket, Cover |
62Y-12414-00-00 |
from US $4.68 |
||
| replacement | |||||
|
21
|
21
62Y-12414-01-00 GASKET COVER |
62Y-12414-01-00 |
from US $4.68 |
||
|
22
|
22
5GH-13440-00-00
Element Assy, Oil Cleaner
|
5GH-13440-00-00 |
— | ||
| replacement | |||||
|
22
|
22
5GH-13440-71-00 ELEMENT ASSY, OIL CLEANER |
5GH-13440-71-00 |
from US $14.99 |
||
|
23
|
23
90401-20M00-00 Bolt, Union |
90401-20M00-00 |
from US $9.21 |
||
|
24
|
24
66M-41113-01-1S
Outer Cover, Exhaust
|
66M-41113-01-1S |
— | ||
| replacement | |||||
|
24
|
24
66M-41113-03-1S
GASKET, EXHAUST OUTE
|
66M-41113-03-1S |
— | ||
|
25
|
25
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.28 |
||
|
26
|
26
66M-41114-00-00 Gasket, Exhaust Outer Cover |
66M-41114-00-00 |
US $28.62 |
||
| replacement | |||||
|
26
|
26
66M-41114-01-00 Gasket, Exhaust Outer Cover |
66M-41114-01-00 |
from US $21.06 |
||
|
27
|
27
97513-06530-00 Bolt W/washer (63M) |
97513-06530-00 |
from US $2 |
||
| replacement | |||||
|
27
|
27
90119-06M06-00
Bolt, With Washer
|
90119-06M06-00 |
— | ||
|
28
|
28
90445-09061-00 Hose (L65) |
90445-09061-00 |
from US $4.11 |
||
| replacements | |||||
|
28
|
28
90445-094K7-00 Hose (L180) |
90445-094K7-00 |
from US $4.11 |
||
|
28
|
28
904-45090-87-00 Hose (L170) |
904-45090-87-00 |
US $3.67 |
||
|
29
|
29
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $6.94 |
||
|
30
|
30
90445-09086-00 Hose (L170) |
90445-09086-00 |
from US $6.52 |
||
| replacements | |||||
|
30
|
30
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
30
|
30
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
31
|
31
90445-09105-00 Hose (L300) |
90445-09105-00 |
from US $6.52 |
||
| replacement | |||||
|
31
|
31
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
