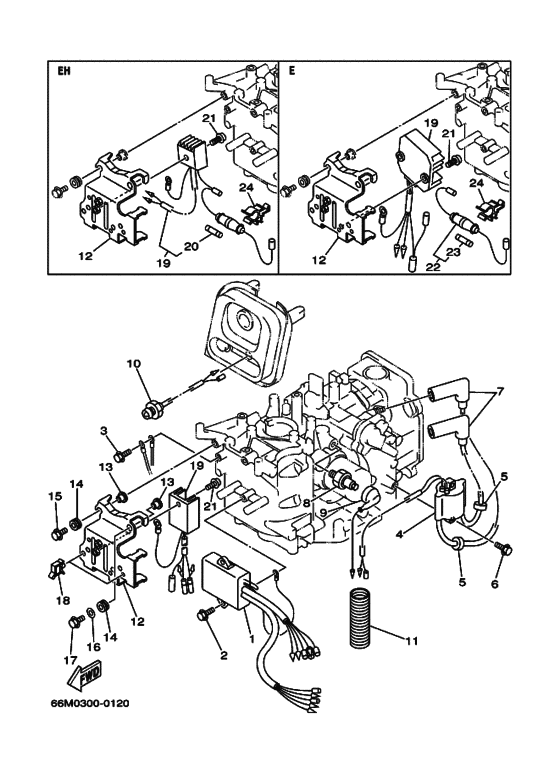

Partie electrique 1 Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2000
- Model
- F15A
- Model code
- 66M
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (120)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66M-85540-01-00 C.d.i. Unit Assy |
66M-85540-01-00 |
from US $263.95 |
||
|
2
|
2
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
2
|
2
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
2
|
2
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
3
|
3
97595-06616-00 Bolt, With Washer |
97595-06616-00 |
US $1.07 |
||
|
4
|
4
66M-85570-00-00 Ignition Coil Assy |
66M-85570-00-00 |
US $124.62 |
||
| replacements | |||||
|
4
|
4
66M-85570-01-00
Ignition Coil Assy
|
66M-85570-01-00 |
— | ||
|
4
|
4
66M-85570-04-00 Ignition Coil Assy |
66M-85570-04-00 |
US $190.24 |
||
|
5
|
5
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
6
|
6
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
6
|
6
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
6
|
6
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
7
|
7
6G8-82370-30-00 Plug Cap Assy |
6G8-82370-30-00 |
US $20.69 |
||
|
8
|
8
62Y-82504-10-00 Oil Pressure Switch Assy |
62Y-82504-10-00 |
from US $43.52 |
||
|
9
|
9
66M-82127-10-00 Wire, Lead 2 |
66M-82127-10-00 |
from US $9.87 |
||
|
10
|
10
65W-85410-01-00 Emergency Signal Light Assy |
65W-85410-01-00 |
from US $47.79 |
||
|
11
|
11
6H1-83557-00-00 Tube |
6H1-83557-00-00 |
US $4.11 |
||
| replacement | |||||
|
11
|
11
6N7-83557-00-00 Tube (I.dia:22Mm) |
6N7-83557-00-00 |
from US $4.11 |
||
|
12
|
12
66M-85542-00-00 Bracket |
66M-85542-00-00 |
US $45.47 |
||
|
13
|
13
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.38 |
||
|
14
|
14
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $4.82 |
||
|
15
|
15
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
15
|
15
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
15
|
15
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
15
|
15
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
16
|
16
90201-06M05-00 Washer, Plate |
90201-06M05-00 |
US $1.56 |
||
| replacement | |||||
|
16
|
16
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
17
|
17
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
17
|
17
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
17
|
17
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.07 |
||
|
18
|
18
904-6409M-13-00
Clamp
|
904-6409M-13-00 |
— | ||
| replacement | |||||
|
18
|
18
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.84 |
||
|
19
|
19
6J8-81960-00-00 Rectifier & Regulator Assy |
6J8-81960-00-00 |
from US $109.15 |
||
|
21
|
21
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
21
|
21
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
