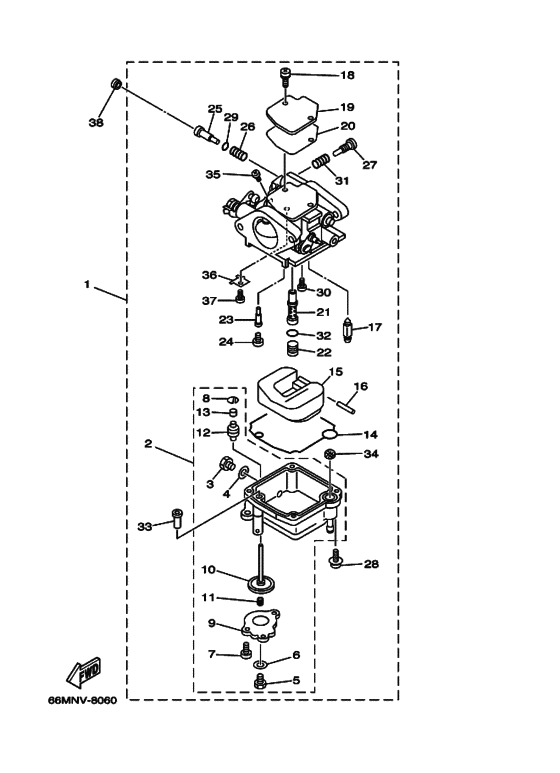

Carburetor Diagram Yamaha F15 M(E/W)HS/L
- Year
- 1998
- Model
- F15A
- Model code
- 66M
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66M-14301-00-00
Carburetor Assy 1
UR F15A STD |
66M-14301-00-00 |
— | ||
|
1
|
1
66M-14301-20-00
Carburetor Assy 1
UR F15A FOR EMISSION CONTR |
66M-14301-20-00 |
— | ||
| replacement | |||||
|
1
|
1
66M-14301-21-00 Carburetor Assy 1UR F15A FOR EMISSION CONTR |
66M-14301-21-00 |
US $274.63 |
||
|
1
|
1
66N-14301-00-00 Carburetor Assy 1UR F9.9C STD |
66N-14301-00-00 |
US $349.54 |
||
|
1
|
1
66N-14301-20-00
Carburetor Assy 1
UR F9.9C ECM |
66N-14301-20-00 |
— | ||
|
2
|
2
66M-14381-00-00 Body, Float ChamberUR F15A STD |
66M-14381-00-00 |
US $315 |
||
| replacement | |||||
|
2
|
2
66M-14381-02-00 Body, Float ChamberUR F15A STD |
66M-14381-02-00 |
US $315 |
||
|
2
|
2
66M-14381-01-00 Body, Float ChamberUR F15A ECM |
66M-14381-01-00 |
US $315 |
||
| replacement | |||||
|
2
|
2
66M-14381-02-00 Body, Float ChamberUR F15A ECM |
66M-14381-02-00 |
US $315 |
||
|
2
|
2
66N-14381-00-00 Body, Float ChamberUR F9.9C |
66N-14381-00-00 |
US $56.51 |
||
|
3
|
3
62Y-14383-00-00 Screw, Drain |
62Y-14383-00-00 |
from US $10.06 |
||
|
4
|
4
66M-14398-00-00 Gasket |
66M-14398-00-00 |
from US $4.96 |
||
|
5
|
5
677-14383-01-00 Screw, DrainF15A |
677-14383-01-00 |
from US $6.94 |
||
|
6
|
6
6L2-14398-00-00 GasketF15A |
6L2-14398-00-00 |
from US $1.98 |
||
|
7
|
7
66M-14325-00-00 Screw, Pan HeadF15A |
66M-14325-00-00 |
from US $1.70 |
||
|
8
|
8
66M-14377-00-00 StopperF15A |
66M-14377-00-00 |
from US $7.93 |
||
|
9
|
9
66M-14958-00-00 Cover, DiaphragmF15A |
66M-14958-00-00 |
from US $39.65 |
||
|
10
|
10
66M-14368-00-00 Diaphragm Assy 1F15A |
66M-14368-00-00 |
US $45.32 |
||
| replacement | |||||
|
10
|
10
66M-14368-01-00 Diaphragm Assy 1F15A |
66M-14368-01-00 |
from US $45.32 |
||
|
11
|
11
6G8-14275-02-00 SpringF15A |
6G8-14275-02-00 |
from US $9.49 |
||
|
12
|
12
66M-14239-00-00 SealF15A |
66M-14239-00-00 |
from US $11.90 |
||
|
13
|
13
66M-14225-00-00 CapF15A |
66M-14225-00-00 |
from US $5.38 |
||
|
14
|
14
66M-14384-00-00 Gasket, Float Chamber |
66M-14384-00-00 |
from US $12.33 |
||
|
15
|
15
6L2-14385-00-00 Float |
6L2-14385-00-00 |
from US $23.38 |
||
|
16
|
16
6E5-14386-01-00 Pin, Float |
6E5-14386-01-00 |
from US $2.98 |
||
|
17
|
17
6L2-14392-00-00 Valve |
6L2-14392-00-00 |
from US $17.28 |
||
|
18
|
18
97980-04110-00 Screw, With Washer |
97980-04110-00 |
from US $2.41 |
||
| replacement | |||||
|
18
|
18
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
19
|
19
6L2-14157-00-00 Cover, Mixing |
6L2-14157-00-00 |
from US $13.74 |
||
|
20
|
20
62Y-14399-00-00 Gasket |
62Y-14399-00-00 |
from US $11.90 |
||
|
21
|
21
66M-14341-00-00 Nozzle, MainUR F15A STD |
66M-14341-00-00 |
US $33.15 |
||
|
21
|
21
66M-14341-10-00 Nozzle, MainUR F15A ECM |
66M-14341-10-00 |
US $18.21 |
||
|
21
|
21
66N-14341-00-00 Nozzle, MainUR F9.9C |
66N-14341-00-00 |
from US $32.87 |
||
|
22
|
22
66M-14343-51-00 Jet, Main (#102)Jet, main (103) UR F15A ECM |
66M-14343-51-00 |
US $8.66 |
||
|
22
|
22
66M-14343-52-00 Jet, Main (#104)UR F15A STD |
66M-14343-52-00 |
from US $11.58 |
||
|
22
|
22
66N-14343-34-00 Jet, Main (# 68)# 68; UR F9.9C |
66N-14343-34-00 |
from US $21.96 |
||
|
23
|
23
66M-14342-23-00 Jet, Pilot (#45) |
66M-14342-23-00 |
from US $16.72 |
||
|
24
|
24
62Y-14355-00-00 PlugUR F9.9C |
62Y-14355-00-00 |
from US $10.24 |
||
|
24
|
24
66M-14355-00-00 PlugUR F15A |
66M-14355-00-00 |
from US $7.65 |
||
|
25
|
25
5H0-14323-00-00 Screw, Air AdjustingUR |
5H0-14323-00-00 |
from US $12.87 |
||
| replacement | |||||
|
25
|
25
12V-14105-00-00 Pilot Screw SetUR |
12V-14105-00-00 |
from US $14.45 |
||
|
25
|
25
62Y-14323-00-00
Screw, Air Adjusting
UR F9.9C ECM |
62Y-14323-00-00 |
— | ||
|
25
|
25
62Y-14323-10-00 Screw, Air AdjustingUR F15A ECM |
62Y-14323-10-00 |
US $31.88 |
||
|
26
|
26
30X-14334-00-00 Spring, Air Adjusting |
30X-14334-00-00 |
from US $2.83 |
||
|
27
|
27
62Y-14321-00-00 Screw, Throttle |
62Y-14321-00-00 |
from US $11.05 |
||
|
28
|
28
97980-04112-00 Screw, With Washer |
97980-04112-00 |
from US $2.13 |
||
| replacement | |||||
|
28
|
28
98580-04012-00 Screw, Pan Head (686) |
98580-04012-00 |
from US $1.28 |
||
|
29
|
29
62Y-14397-00-00 O-Ring |
62Y-14397-00-00 |
from US $2.55 |
||
| replacement | |||||
|
29
|
29
5H0-14397-00-00 O-Ring |
5H0-14397-00-00 |
from US $2.55 |
||
|
30
|
30
98980-04006-00 Screw, Bind |
98980-04006-00 |
from US $1.42 |
||
|
31
|
31
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
32
|
32
6F5-14397-00-00 O-Ring |
6F5-14397-00-00 |
from US $1.98 |
||
|
33
|
33
66M-14272-00-00 Check Valve AssyF15A |
66M-14272-00-00 |
from US $23.94 |
||
|
34
|
34
66M-14827-00-00 Filter |
66M-14827-00-00 |
from US $9.72 |
||
|
35
|
35
97890-04005-00 Screw, Pan Head |
97890-04005-00 |
US $3.68 |
||
|
36
|
36
66M-14157-00-00 Plate |
66M-14157-00-00 |
from US $19 |
||
|
37
|
37
98580-03005-00 Screw, Pan Head |
98580-03005-00 |
from US $2.13 |
||
| replacement | |||||
|
37
|
37
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.13 |
||
|
38
|
38
6G8-14457-00-00 SealECM |
6G8-14457-00-00 |
US $4.11 |
||
| replacements | |||||
|
38
|
38
50M-14355-00-00
Plug
ECM |
50M-14355-00-00 |
— | ||
|
38
|
38
50M-14355-01-00 PLUGECM |
50M-14355-01-00 |
from US $2.32 |
||
