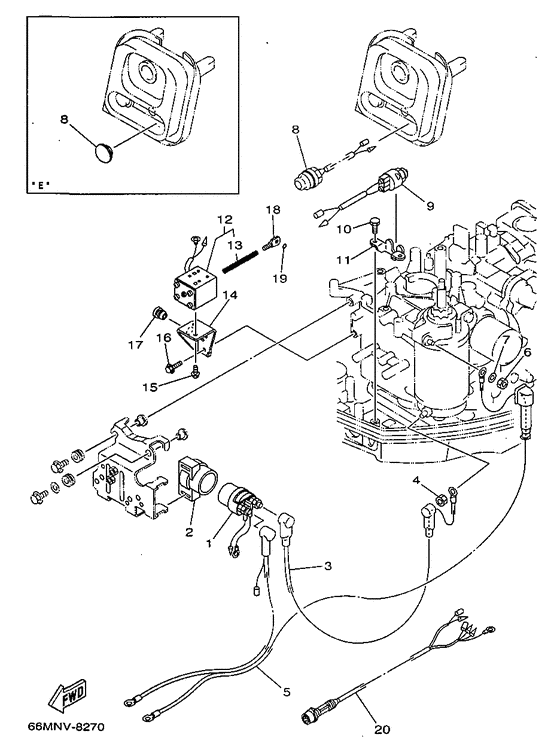

Electrical 2 Diagram Yamaha F15 M(E/W)HS/L
- Year
- 1998
- Model
- F15A
- Model code
- 66M
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $54.56 |
||
|
02
|
02
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
03
|
03
66M-82117-00-00 Wire, Lead |
66M-82117-00-00 |
from US $19.84 |
||
|
04
|
04
65W-8182B-00-00 Nut, Special |
65W-8182B-00-00 |
from US $3.54 |
||
|
05
|
05
66M-82105-00-00 Battery Cable |
66M-82105-00-00 |
US $161.65 |
||
| replacements | |||||
|
05
|
05
66T-82105-J1-00 Battery Cable |
66T-82105-J1-00 |
US $161.65 |
||
|
05
|
05
66T-82105-J2-00 Battery Cable |
66T-82105-J2-00 |
US $183.56 |
||
|
06
|
06
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
07
|
07
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
08
|
08
65W-81870-00-00 Starting Switch AssyUr |
65W-81870-00-00 |
from US $35.24 |
||
|
09
|
09
6H3-82540-00-00 Neutral Switch Assy |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
09
|
09
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
10
|
10
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
11
|
11
6J8-82554-00-00 Stay, Neutral Switch |
6J8-82554-00-00 |
from US $12.18 |
||
