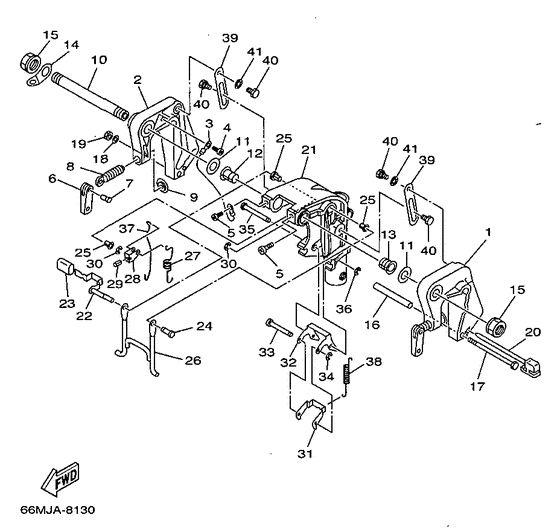

Bracket 1 Diagram Yamaha F15 M(E/W)HS/L
- Year
- 1998
- Model
- F15A
- Model code
- 66M
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
63V-43111-00-4D Bracket, Clamp |
63V-43111-00-4D |
US $139.54 |
||
| replacement | |||||
|
01
|
01
63V-WS431-B6-8D CLAMP BRACKET SET |
63V-WS431-B6-8D |
from US $111.72 |
||
|
02
|
02
63V-43112-04-4D Bracket, Clamp 2 |
63V-43112-04-4D |
US $139.54 |
||
| replacement | |||||
|
02
|
02
63V-WS431-B6-8D CLAMP BRACKET SET |
63V-WS431-B6-8D |
from US $111.72 |
||
|
03
|
03
66M-82148-00-00 Wire, Lead 4 |
66M-82148-00-00 |
from US $13.88 |
||
|
04
|
04
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
05
|
05
97885-08010-00 Screw, Pan Head |
97885-08010-00 |
from US $3.54 |
||
|
06
|
06
6E0-43118-01-00
Handle, Transom Clamp
|
6E0-43118-01-00 |
— | ||
| replacements | |||||
|
06
|
06
6L8-G3118-01-00 Handle Transom Clamp |
6L8-G3118-01-00 |
US $11.19 |
||
|
06
|
06
6EE-G3118-00-00 Handle, Transom Clamp |
6EE-G3118-00-00 |
from US $6.89 |
||
|
07
|
07
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.41 |
||
|
08
|
08
6E7-43116-00-00
Screw, Transom Clamp
|
6E7-43116-00-00 |
— | ||
| replacements | |||||
|
08
|
08
6L2-43116-00-00 Screw, Transom Clamp |
6L2-43116-00-00 |
from US $27.77 |
||
|
08
|
08
90149-14M03-00 Screw, Spec''l Shape |
90149-14M03-00 |
from US $9.26 |
||
|
09
|
09
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.30 |
||
|
10
|
10
63V-43131-10-00 Bolt, Clamp Bracket |
63V-43131-10-00 |
from US $53.88 |
||
|
11
|
11
90202-22M54-00 Washer, Plate |
90202-22M54-00 |
from US $2.55 |
||
|
12
|
12
90386-22M94-00 Bush |
90386-22M94-00 |
from US $2 |
||
|
13
|
13
90386-22M94-00 Bush |
90386-22M94-00 |
from US $2 |
||
|
14
|
14
66M-43113-00-00 Plate, Clamp Bracket |
66M-43113-00-00 |
from US $6.46 |
||
|
15
|
15
63V-43145-00-00 Cap, Clamp Bracket |
63V-43145-00-00 |
US $33.44 |
||
| replacement | |||||
|
15
|
15
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
16
|
16
90387-06M13-00 Collar |
90387-06M13-00 |
from US $10.20 |
||
|
17
|
17
90101-06M29-00 Bolt |
90101-06M29-00 |
from US $4.68 |
||
|
18
|
18
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
19
|
19
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
20
|
20
6L2-43160-00-00 Tilt Rod Assy |
6L2-43160-00-00 |
US $24.65 |
||
| replacement | |||||
|
20
|
20
6L2-43160-01-00 Tilt Rod Assy |
6L2-43160-01-00 |
from US $17.54 |
||
|
21
|
21
63V-43311-02-4D Bracket, SwivelUr s |
63V-43311-02-4D |
US $326.06 |
||
| replacement | |||||
|
21
|
21
999-99039-17-00 Bracket, SwivelUr s |
999-99039-17-00 |
from US $248.69 |
||
|
21
|
21
66M-43311-10-4D Bracket, Swivel 1Ur l |
66M-43311-10-4D |
US $303.95 |
||
| replacement | |||||
|
21
|
21
66M-43311-10-8D BRACKET, SWIVEL 1Ur l |
66M-43311-10-8D |
from US $167.81 |
||
|
22
|
22
63V-43630-00-00 Tilt Lever Assy |
63V-43630-00-00 |
from US $38.13 |
||
|
23
|
23
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.97 |
||
|
24
|
24
63V-43191-00-00 Shaft, Stopper |
63V-43191-00-00 |
from US $5.81 |
||
|
25
|
25
90386-07M95-00 Bush |
90386-07M95-00 |
from US $4.53 |
||
|
26
|
26
66M-43350-00-00
Receiver Assembly
|
66M-43350-00-00 |
— | ||
|
27
|
27
90507-20M00-00 Spring, Tension |
90507-20M00-00 |
from US $4.68 |
||
|
28
|
28
63V-43641-00-00
Lever, Tilt
|
63V-43641-00-00 |
— | ||
|
29
|
29
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
30
|
30
93430-05027-00 Circlip |
93430-05027-00 |
from US $1.56 |
||
| replacement | |||||
|
30
|
30
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
31
|
31
66M-43614-00-00
Plate, Tilt Lock
|
66M-43614-00-00 |
— | ||
|
32
|
32
63V-43615-00-00
Plate, Tilt Lock
|
63V-43615-00-00 |
— | ||
|
33
|
33
63V-43611-00-00
Shaft, Tilt Lock
|
63V-43611-00-00 |
— | ||
|
34
|
34
93430-05027-00 Circlip |
93430-05027-00 |
from US $1.56 |
||
| replacement | |||||
|
34
|
34
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
35
|
35
63V-43659-00-00 Shaft, Reverse Lock |
63V-43659-00-00 |
from US $7.93 |
||
|
36
|
36
93430-05027-00 Circlip |
93430-05027-00 |
from US $1.56 |
||
| replacement | |||||
|
36
|
36
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
37
|
37
63V-43617-00-00
Rod, Tilt Lock
|
63V-43617-00-00 |
— | ||
|
38
|
38
90507-26M00-00 Spring, Tension |
90507-26M00-00 |
from US $19.13 |
||
|
39
|
39
63V-43181-00-00 Lever, Tilt Stop 1 |
63V-43181-00-00 |
from US $20.12 |
||
|
40
|
40
90109-06M84-00 Bolt |
90109-06M84-00 |
from US $4.53 |
||
|
41
|
41
90206-10M24-00 Washer, Wave |
90206-10M24-00 |
