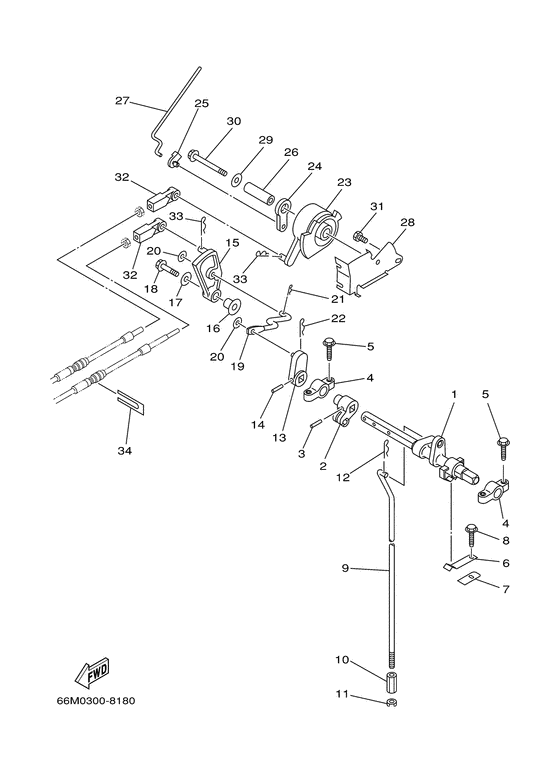

Control Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2000
- Model
- F15A
- Model code
- 66M
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (130)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-44121-00-00 Lever, Shift Rod |
65W-44121-00-00 |
from US $64.60 |
||
|
02
|
02
66M-44122-00-00 Bushing, Shift Rod Lever |
66M-44122-00-00 |
from US $5.53 |
||
|
03
|
03
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
|
04
|
04
6F5-41662-00-00 Bracket 2 |
6F5-41662-00-00 |
from US $16.20 |
||
|
05
|
05
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
06
|
06
65W-44116-00-00 Spring |
65W-44116-00-00 |
from US $4.39 |
||
|
07
|
07
66R-44114-00-00 Stopper |
66R-44114-00-00 |
from US $6.94 |
||
|
08
|
08
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
09
|
09
66M-44143-00-00 Rod, ShiftS |
66M-44143-00-00 |
from US $32.73 |
||
|
09
|
09
66M-44143-10-00 Rod, ShiftL |
66M-44143-10-00 |
from US $32.73 |
||
|
10
|
10
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
10
|
10
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.60 |
||
|
11
|
11
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
11
|
11
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
12
|
12
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
23
|
23
65W-41638-00-00 Pulley |
65W-41638-00-00 |
from US $16.81 |
||
|
24
|
24
65W-41283-00-00 Lever, Free Accel |
65W-41283-00-00 |
from US $2.69 |
||
|
25
|
25
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.62 |
||
|
26
|
26
90387-06M08-00 Collar |
90387-06M08-00 |
US $8.08 |
||
| replacement | |||||
|
26
|
26
90387-06064-00
Collar
|
90387-06064-00 |
— | ||
|
27
|
27
66M-41211-00-00 Link, Accel |
66M-41211-00-00 |
from US $8.50 |
||
|
28
|
28
65W-14497-01-00
Stay, Throttle Wire
|
65W-14497-01-00 |
— | ||
|
29
|
29
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.70 |
||
|
30
|
30
97595-06555-00 Bolt, With Washer |
97595-06555-00 |
from US $4.11 |
||
| replacement | |||||
|
30
|
30
97E95-06555-00 Bolt, Hexagon W/w Deep Recess |
97E95-06555-00 |
from US $1.21 |
||
|
31
|
31
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
31
|
31
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
