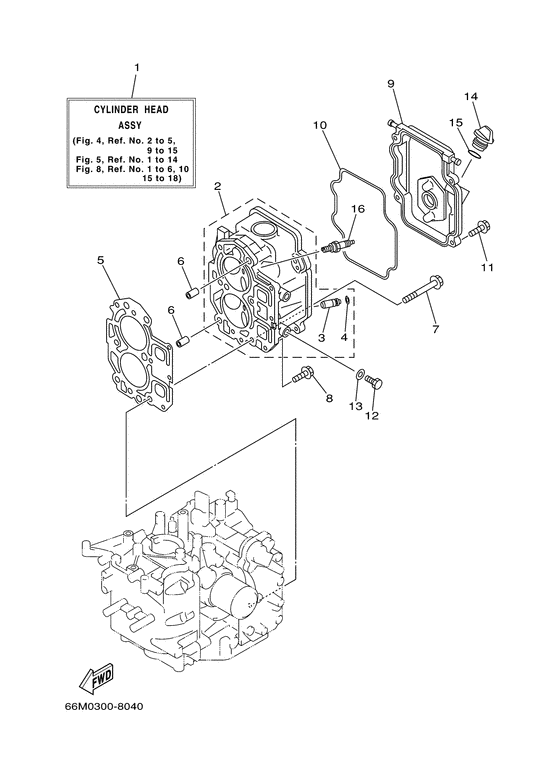

Cylinder. crankcase 2 Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2000
- Model
- F15A
- Model code
- 66M
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (130)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
66M-W009A-00-4D
Cylinder Head Complete
Std |
66M-W009A-00-4D |
— | ||
| replacement | |||||
|
01
|
01
66M-W009A-13-1S
Cylinder Head Complete
Std |
66M-W009A-13-1S |
— | ||
|
01
|
01
66M-W009A-10-4D
Cylinder Head Complete
Ecm |
66M-W009A-10-4D |
— | ||
|
02
|
02
66M-11111-10-94
Head, Cylinder 1
Ecm |
66M-11111-10-94 |
— | ||
|
02
|
02
66M-11111-00-94
Head, Cylinder 1
Std |
66M-11111-00-94 |
— | ||
| replacements | |||||
|
02
|
02
66M-11111-08-1S Head, Cylinder 1Std |
66M-11111-08-1S |
US $1,045.38 |
||
|
02
|
02
66M-11111-09-1S
Head, Cylinder 1
Std |
66M-11111-09-1S |
— | ||
|
03
|
03
66M-11133-10-00
Guide, Valve 1
|
66M-11133-10-00 |
— | ||
| replacement | |||||
|
03
|
03
66M-11133-29-00
Guide, Valve 1
|
66M-11133-29-00 |
— | ||
|
04
|
04
93450-09M01-00 Circlip |
93450-09M01-00 |
from US $1.49 |
||
|
05
|
05
66M-11181-00-00 Gasket, Cylinder Head 1 |
66M-11181-00-00 |
US $73.09 |
||
| replacement | |||||
|
05
|
05
66M-11181-10-00 Gasket, Cylinder Head 1 |
66M-11181-10-00 |
from US $51.58 |
||
|
06
|
06
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
06
|
06
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
07
|
07
90105-08M78-00 Bolt, Flange |
90105-08M78-00 |
from US $4.11 |
||
|
08
|
08
97513-06525-00 Bolt, With Washer |
97513-06525-00 |
from US $1.84 |
||
|
09
|
09
66M-11191-00-94 Cover, Cylinder Head 1 |
66M-11191-00-94 |
US $62.54 |
||
| replacement | |||||
|
09
|
09
66M-11191-00-1S Cover, Cylinder Head 1 |
66M-11191-00-1S |
from US $62.54 |
||
|
10
|
10
66M-11356-00-00 Seal, Cylinder 2 |
66M-11356-00-00 |
from US $9.78 |
||
|
11
|
11
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
11
|
11
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
12
|
12
97095-08014-00 BoltEcm |
97095-08014-00 |
US $1.07 |
||
| replacements | |||||
|
12
|
12
97D95-08014-00 Bolt, Hexagon Deep REcm |
97D95-08014-00 |
from US $1.07 |
||
|
12
|
12
97D95-08014-00 Bolt, Hexagon Deep REcm |
97D95-08014-00 |
from US $1.07 |
||
|
13
|
13
90430-08143-00 GasketEcm |
90430-08143-00 |
from US $1.70 |
||
|
14
|
14
6G8-15363-00-00 Plug, Oil |
6G8-15363-00-00 |
from US $4.64 |
||
|
15
|
15
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
15
|
15
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.32 |
||
|
15
|
15
93210-24800-00 O-Ring |
93210-24800-00 |
from US $1.28 |
||
|
16
|
16
94701-00375-00 Plug, Spark (Ngk Dpr6Ea-9) |
94701-00375-00 |
US $7.94 |
||
| replacement | |||||
|
16
|
16
DPR-6EA90-00-00 Plug, Spark (Ngk Dpr6Eb) |
DPR-6EA90-00-00 |
US $68.90 |
||
