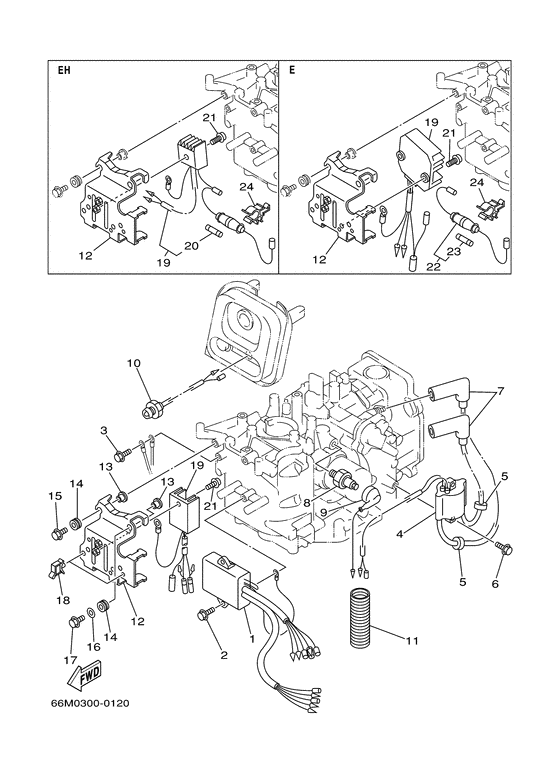

Electrical 1 Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2000
- Model
- F15A
- Model code
- 66M
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (130)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
66M-85540-01-00 C.d.i. Unit Assy |
66M-85540-01-00 |
from US $263.95 |
||
|
02
|
02
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
02
|
02
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
02
|
02
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
04
|
04
66M-85570-00-00 Ignition Coil Assy |
66M-85570-00-00 |
US $124.62 |
||
| replacements | |||||
|
04
|
04
66M-85570-01-00
Ignition Coil Assy
|
66M-85570-01-00 |
— | ||
|
04
|
04
66M-85570-04-00 Ignition Coil Assy |
66M-85570-04-00 |
US $190.24 |
||
|
05
|
05
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
06
|
06
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
06
|
06
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
06
|
06
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
07
|
07
6G8-82370-30-00 Plug Cap Assy |
6G8-82370-30-00 |
US $20.69 |
||
|
08
|
08
62Y-82504-10-00 Oil Pressure Switch Assy |
62Y-82504-10-00 |
from US $43.52 |
||
|
09
|
09
66M-82127-10-00 Wire, Lead 2 |
66M-82127-10-00 |
from US $9.87 |
||
|
10
|
10
65W-85410-01-00 Emergency Signal Light Assy |
65W-85410-01-00 |
from US $47.79 |
||
|
11
|
11
6H1-83557-00-00 Tube |
6H1-83557-00-00 |
US $4.11 |
||
| replacement | |||||
|
11
|
11
6N7-83557-00-00 Tube (I.dia:22Mm) |
6N7-83557-00-00 |
from US $4.11 |
||
|
13
|
13
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.38 |
||
|
14
|
14
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $4.82 |
||
|
15
|
15
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
15
|
15
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
15
|
15
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
15
|
15
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
16
|
16
90201-06M05-00 Washer, Plate |
90201-06M05-00 |
US $1.56 |
||
| replacement | |||||
|
16
|
16
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
17
|
17
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
17
|
17
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
17
|
17
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.07 |
||
|
18
|
18
904-6409M-13-00
Clamp
|
904-6409M-13-00 |
— | ||
| replacement | |||||
|
18
|
18
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.84 |
||
