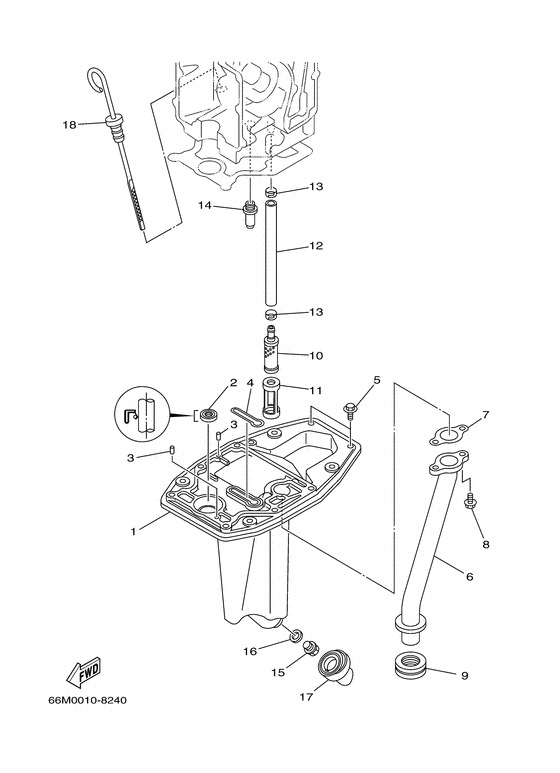

Oil pan Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2000
- Model
- F15A
- Model code
- 66M
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (130)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
66M-41137-00-5B Guide, Exhaust |
66M-41137-00-5B |
US $381.92 |
||
| replacement | |||||
|
01
|
01
66M-41137-00-CA Guide, Exhaust |
66M-41137-00-CA |
from US $213.70 |
||
|
02
|
02
93101-12M63-00 Oil Seal |
93101-12M63-00 |
from US $13.46 |
||
|
03
|
03
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
04
|
04
66M-11355-00-00 Seal, Cylinder 1 |
66M-11355-00-00 |
from US $6.94 |
||
|
05
|
05
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
05
|
05
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
05
|
05
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
06
|
06
66M-41131-01-00
Manifold, Ext. 1
|
66M-41131-01-00 |
— | ||
| replacement | |||||
|
06
|
06
66M-41131-01-94
Manifold, Ext. 1
|
66M-41131-01-94 |
— | ||
|
07
|
07
66M-41133-00-00 Gasket, Exhaust Manifold 1 |
66M-41133-00-00 |
US $9.63 |
||
| replacement | |||||
|
07
|
07
66M-41133-01-00 Gasket, Exhaust Manifold 1 |
66M-41133-01-00 |
from US $5.58 |
||
|
08
|
08
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
08
|
08
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
09
|
09
66M-41138-00-00 Seal, Ext. 1 |
66M-41138-00-00 |
from US $22.88 |
||
|
10
|
10
66M-13421-00-00 Strainer 2 |
66M-13421-00-00 |
US $18.10 |
||
|
11
|
11
66M-13417-00-00 Cover, Strainer |
66M-13417-00-00 |
US $9.11 |
||
|
12
|
12
66M-13416-00-00 Pipe, Oil 1 |
66M-13416-00-00 |
from US $21.11 |
||
|
13
|
13
66M-24351-00-00 Band 1 |
66M-24351-00-00 |
from US $5.67 |
||
|
14
|
14
6G8-11575-00-00 Relief Valve Assy |
6G8-11575-00-00 |
from US $43.32 |
||
|
15
|
15
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.09 |
||
|
16
|
16
904-3014M-09-00 Gasket |
904-3014M-09-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
90430-14228-00 Gasket(N261) |
90430-14228-00 |
from US $4.68 |
||
|
17
|
17
66M-15316-00-00 Damper 1 |
66M-15316-00-00 |
US $4.26 |
||
|
18
|
18
66M-15362-00-00 Plug, Oil Level |
66M-15362-00-00 |
US $13.22 |
||
