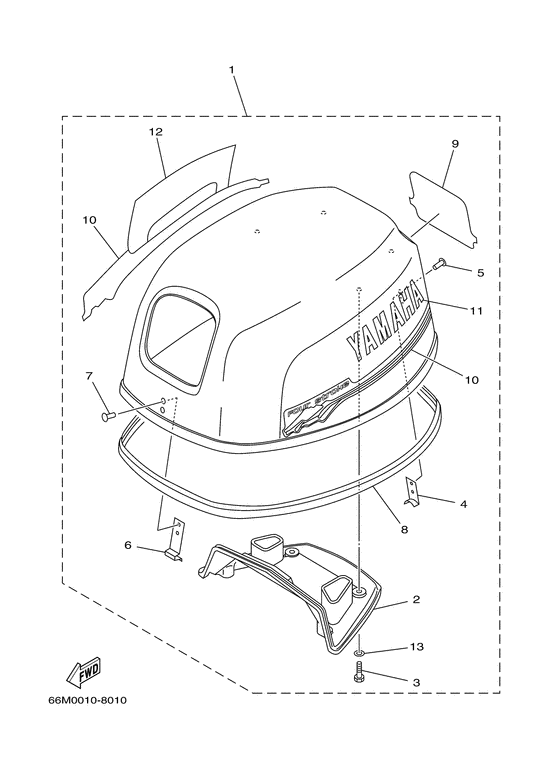

Top cowling Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2000
- Model
- F15A
- Model code
- 66M
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (130)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
66M-42610-00-4D
Top Cowling Assy
F15a |
66M-42610-00-4D |
— | ||
| replacements | |||||
|
01
|
01
66M-42610-00-00
Top Cowling Assy
F15a |
66M-42610-00-00 |
— | ||
|
01
|
01
66M-4261A-09-00 Top Cowling Comple W/o GraphicF15a |
66M-4261A-09-00 |
from US $602.93 |
||
|
01
|
01
66N-42610-00-4D
Top Cowling Assy
F9.9c |
66N-42610-00-4D |
— | ||
| replacement | |||||
|
01
|
01
66N-42610-00-00
Top Cowling Assy
F9.9c |
66N-42610-00-00 |
— | ||
|
02
|
02
66M-42613-00-00 Molding, Air Duct |
66M-42613-00-00 |
from US $20.94 |
||
|
03
|
03
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $1.66 |
||
|
04
|
04
6E0-42651-02-00 Hook |
6E0-42651-02-00 |
from US $4.64 |
||
|
05
|
05
90266-04M04-00 Rivet |
90266-04M04-00 |
from US $1.34 |
||
|
06
|
06
6E7-42652-00-00 Hook |
6E7-42652-00-00 |
US $6.91 |
||
|
07
|
07
90266-04M04-00 Rivet |
90266-04M04-00 |
from US $1.34 |
||
|
08
|
08
66M-42615-00-00 Seal |
66M-42615-00-00 |
US $47.80 |
||
| replacement | |||||
|
08
|
08
6D4-42615-00-00 Seal |
6D4-42615-00-00 |
from US $37.45 |
||
|
09
|
09
66M-42678-10-00 Graphic, RearF15a |
66M-42678-10-00 |
US $7.08 |
||
| replacements | |||||
|
09
|
09
6AG-42677-20-00 Graphic, FrontF15a |
6AG-42677-20-00 |
US $7.08 |
||
|
09
|
09
6AG-42677-21-00 Graphic, FrontF15a |
6AG-42677-21-00 |
from US $7.08 |
||
|
09
|
09
66N-42678-10-00 Graphic, RearF9.9c |
66N-42678-10-00 |
US $11.76 |
||
| replacements | |||||
|
09
|
09
6AU-42678-10-00 Graphic, RearF9.9c |
6AU-42678-10-00 |
US $11.76 |
||
|
09
|
09
6AU-42678-11-00 Graphic, RearF9.9c |
6AU-42678-11-00 |
from US $11.76 |
||
|
10
|
10
66M-W0070-10-00
Graphic Set
|
66M-W0070-10-00 |
— | ||
|
11
|
11
66M-42681-10-00 Mark, Cowling |
66M-42681-10-00 |
from US $9.47 |
||
| replacement | |||||
|
11
|
11
99241-00200-00 Emblem, Yamaha |
99241-00200-00 |
from US $11.05 |
||
|
12
|
12
66M-42682-10-00 Mark, Cowling |
66M-42682-10-00 |
from US $9.47 |
||
| replacement | |||||
|
12
|
12
99241-00200-00 Emblem, Yamaha |
99241-00200-00 |
from US $11.05 |
||
|
13
|
13
90202-05M38-00 Washer, Plate |
90202-05M38-00 |
from US $2.41 |
||
