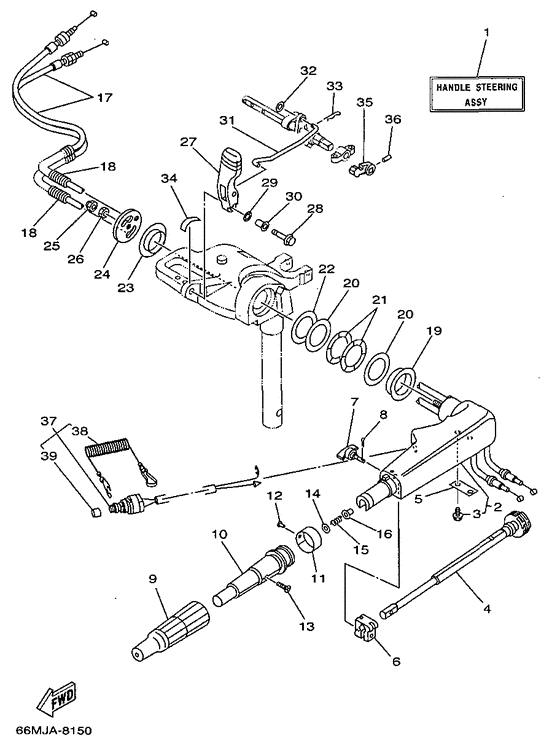

Steering Diagram Yamaha F15 M(E/W)HS/L
- Year
- 1998
- Model
- F15A
- Model code
- 66M
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
66M-W0084-00-4D Handle Steering Assy |
66M-W0084-00-4D |
US $367.80 |
||
| replacement | |||||
|
01
|
01
66M-W0084-01-8D HANDLE STEERING ASSY |
66M-W0084-01-8D |
US $269.64 |
||
|
02
|
02
65W-42101-00-4D
Handle, Steering
|
65W-42101-00-4D |
— | ||
| replacement | |||||
|
02
|
02
999-99031-28-00
Handle, Steering
|
999-99031-28-00 |
— | ||
|
02
|
02
65W-42101-01-4D Handle, SteeringComponent of handle steering a |
65W-42101-01-4D |
US $88.82 |
||
|
03
|
03
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.18 |
||
|
04
|
04
65W-42138-00-00 Lever, Throttle |
65W-42138-00-00 |
from US $33.24 |
||
|
05
|
05
65W-42159-00-00 Stay |
65W-42159-00-00 |
from US $3.10 |
||
|
06
|
06
6G1-42126-00-00 Friction, Steering Handle Grip |
6G1-42126-00-00 |
US $7.78 |
||
| replacement | |||||
|
06
|
06
6EE-G2126-00-00 Friction, Steering |
6EE-G2126-00-00 |
US $2.69 |
||
|
07
|
07
65W-42125-00-00 Bolt, Friction Adjusting |
65W-42125-00-00 |
US $9.72 |
||
|
08
|
08
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $2.69 |
||
|
09
|
09
66M-42177-00-00 Rubber, Handle |
66M-42177-00-00 |
US $17.65 |
||
|
10
|
10
66M-42119-00-00 Grip, Steering Handle |
66M-42119-00-00 |
US $24.53 |
||
| replacement | |||||
|
10
|
10
66M-42119-01-00 Grip, Steering Handle |
66M-42119-01-00 |
US $24.53 |
||
|
11
|
11
689-42137-20-00 Indicator, Throttle |
689-42137-20-00 |
US $8.98 |
||
| replacement | |||||
|
11
|
11
689-42137-30-00
Indicator, Throttle
|
689-42137-30-00 |
— | ||
|
12
|
12
90269-02M09-00 Rivet |
90269-02M09-00 |
US $1.94 |
||
|
13
|
13
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
13
|
13
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.35 |
||
|
14
|
14
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $0.90 |
||
| replacement | |||||
|
14
|
14
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $0.90 |
||
|
15
|
15
90501-23215-00 Spring, Compression |
90501-23215-00 |
US $3.14 |
||
|
16
|
16
90386-08032-00 Bush |
90386-08032-00 |
from US $2.09 |
||
|
17
|
17
66M-26311-00-00 Cable, Throttle 1 |
66M-26311-00-00 |
from US $16.46 |
||
|
18
|
18
90446-10M87-00 Hose (L75) |
90446-10M87-00 |
US $3.44 |
||
| replacement | |||||
|
18
|
18
90446-10M86-00 Hose (L140) |
90446-10M86-00 |
US $3.44 |
||
|
19
|
19
90386-40MA0-00 Bush |
90386-40MA0-00 |
US $3.44 |
||
| replacement | |||||
|
19
|
19
66R-42171-00-00 Bushing |
66R-42171-00-00 |
from US $2.84 |
||
|
20
|
20
90201-43M00-00 Washer, Plate |
90201-43M00-00 |
US $3.44 |
||
|
21
|
21
90206-43M22-00 Washer, Wave |
90206-43M22-00 |
from US $8.83 |
||
|
22
|
22
90202-43M57-00 Washer, Plate |
90202-43M57-00 |
from US $2.24 |
||
|
23
|
23
90386-40M99-00 Bush |
90386-40M99-00 |
from US $2.84 |
||
|
24
|
24
66M-42131-01-00 Cover, Handle SteeringComponent of handle steering a |
66M-42131-01-00 |
US $6.28 |
||
| replacement | |||||
|
24
|
24
65W-42131-01-00 Cover, Handle SteeringComponent of handle steering a |
65W-42131-01-00 |
from US $6.28 |
||
|
24
|
24
66M-42131-00-00 Cover, Handle Steering |
66M-42131-00-00 |
US $6.28 |
||
| replacement | |||||
|
24
|
24
65W-42131-01-00 Cover, Handle Steering |
65W-42131-01-00 |
from US $6.28 |
||
|
25
|
25
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
25
|
25
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.13 |
||
|
25
|
25
95780-10300-00 Nut, FlangeComponent of handle steering a |
95780-10300-00 |
US $5.54 |
||
|
26
|
26
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.40 |
||
|
26
|
26
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.40 |
||
|
26
|
26
95380-10700-00 NutComponent of handle steering a |
95380-10700-00 |
from US $2.40 |
||
|
27
|
27
66M-44111-00-00 Handle, Gear Shift |
66M-44111-00-00 |
US $27.08 |
||
| replacement | |||||
|
27
|
27
66M-44111-01-00 Handle, Gear Shift |
66M-44111-01-00 |
US $27.08 |
||
|
28
|
28
97595-06530-00 Bolt, With Washer |
97595-06530-00 |
US $0.83 |
||
|
29
|
29
90206-10M04-00 Washer, Wave |
90206-10M04-00 |
US $1.80 |
||
|
30
|
30
90387-06M78-00 Collar |
90387-06M78-00 |
US $5.44 |
||
|
31
|
31
66M-44124-00-00 Link, Shift Rod |
66M-44124-00-00 |
US $8.53 |
||
|
32
|
32
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $0.90 |
||
|
33
|
33
90468-18008-00 Clip |
90468-18008-00 |
from US $1.65 |
||
|
34
|
34
6E0-44191-11-00 Indicator, Shift |
6E0-44191-11-00 |
US $4.19 |
||
| replacement | |||||
|
34
|
34
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
US $4.19 |
||
|
35
|
35
65W-44173-00-00 Lever, Shift Control |
65W-44173-00-00 |
US $9.72 |
||
| replacement | |||||
|
35
|
35
65W-44173-01-00 Lever, Shift Control |
65W-44173-01-00 |
US $9.72 |
||
|
36
|
36
91690-30320-00 Pin, Spring |
91690-30320-00 |
US $2.39 |
||
| replacement | |||||
|
36
|
36
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
US $2.39 |
||
|
37
|
37
65W-82575-00-00 Engine Stop Switch Assy |
65W-82575-00-00 |
US $52.73 |
||
| replacements | |||||
|
37
|
37
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $53.90 |
||
|
37
|
37
65W-82575-01-00 Engine Stop Switch Assy |
65W-82575-01-00 |
US $52.73 |
||
|
38
|
38
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $20.20 |
||
|
39
|
39
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
US $5.09 |
||
