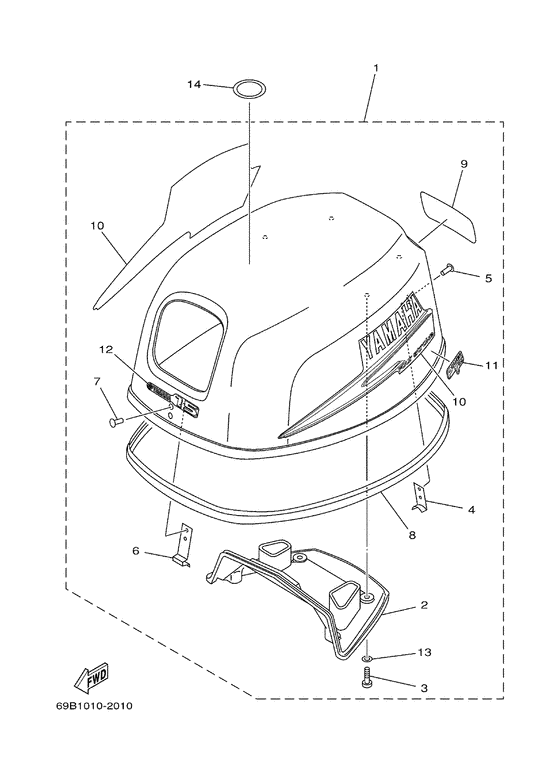

Top cowling Diagram Yamaha F15 E(H)PS/L
- Year
- 2003
- Model
- F15A
- Model code
- 69A
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
69A-42610-10-4D
Top Cowling Assy
|
69A-42610-10-4D |
— | ||
| replacements | |||||
|
01
|
01
69A-42610-12-00
Top Cowling Assy
|
69A-42610-12-00 |
— | ||
|
01
|
01
69A-42610-12-4D
Top Cowling Assy
|
69A-42610-12-4D |
— | ||
|
02
|
02
66M-42613-00-00 Molding, Air Duct |
66M-42613-00-00 |
from US $20.94 |
||
|
03
|
03
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $1.66 |
||
|
04
|
04
6E0-42651-02-00 Hook |
6E0-42651-02-00 |
from US $4.64 |
||
|
05
|
05
90266-04M04-00 Rivet |
90266-04M04-00 |
from US $1.34 |
||
|
06
|
06
6E7-42652-00-00 Hook |
6E7-42652-00-00 |
US $6.91 |
||
|
07
|
07
90266-04M04-00 Rivet |
90266-04M04-00 |
from US $1.34 |
||
|
08
|
08
66M-42615-00-00 Seal |
66M-42615-00-00 |
US $47.80 |
||
| replacement | |||||
|
08
|
08
6D4-42615-00-00 Seal |
6D4-42615-00-00 |
from US $37.45 |
||
|
09
|
09
66M-42678-20-00 Graphic, Rear |
66M-42678-20-00 |
US $7.08 |
||
| replacements | |||||
|
09
|
09
63W-42678-20-00 Graphic, Rear |
63W-42678-20-00 |
US $7.08 |
||
|
09
|
09
6AG-42677-20-00 Graphic, Front |
6AG-42677-20-00 |
US $7.08 |
||
|
09
|
09
6AG-42677-21-00 Graphic, Front |
6AG-42677-21-00 |
from US $7.08 |
||
|
10
|
10
66M-W0070-20-00 Graphic Set |
66M-W0070-20-00 |
US $93.81 |
||
|
11
|
11
69A-42675-00-00 Graphic, Side 1 |
69A-42675-00-00 |
from US $12.33 |
||
|
12
|
12
66M-42677-00-00 Graphic, Front |
66M-42677-00-00 |
US $7.08 |
||
| replacements | |||||
|
12
|
12
6AG-42677-20-00 Graphic, Front |
6AG-42677-20-00 |
US $7.08 |
||
|
12
|
12
6AG-42677-21-00 Graphic, Front |
6AG-42677-21-00 |
from US $7.08 |
||
|
13
|
13
90202-05M38-00 Washer, Plate |
90202-05M38-00 |
from US $2.41 |
||
|
14
|
14
67F-13434-02-00 Label, Caution |
67F-13434-02-00 |
US $7.78 |
||
| replacement | |||||
|
14
|
14
67F-13434-20-00
Label, Caution
|
67F-13434-20-00 |
— | ||
