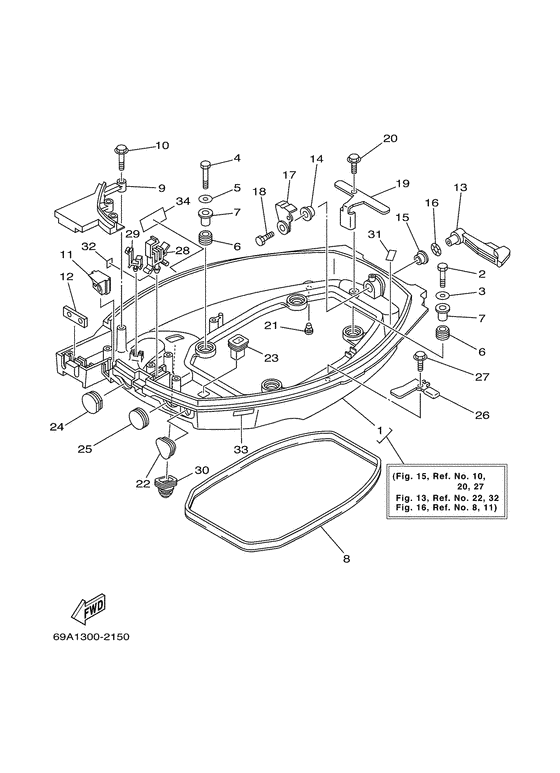

Bottom cowling Diagram Yamaha F15 E(H)PS/L
- Year
- 2002
- Model
- F15A
- Model code
- 69A
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
69A-42710-11-4D
Bottom Cowling Assy
With tapping bolt |
69A-42710-11-4D |
— | ||
| replacement | |||||
|
01
|
01
69A-42710-13-4D Bottom Cowling AssyWith tapping bolt |
69A-42710-13-4D |
US $520.13 |
||
|
02
|
02
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
02
|
02
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $1.66 |
||
|
03
|
03
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
04
|
04
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
04
|
04
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
05
|
05
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
05
|
05
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
06
|
06
90480-15M31-00 Grommet |
90480-15M31-00 |
from US $3.54 |
||
|
07
|
07
90387-06M52-00 Collar |
90387-06M52-00 |
from US $5.38 |
||
|
08
|
08
66M-42716-00-00 Rubber, Seal 1 |
66M-42716-00-00 |
from US $20.83 |
||
|
09
|
09
66M-42738-00-4D Plate, Fitting |
66M-42738-00-4D |
from US $50.43 |
||
|
10
|
10
90109-06M82-00 Bolt |
90109-06M82-00 |
from US $2 |
||
|
11
|
11
66M-42725-20-00 Grommet |
66M-42725-20-00 |
US $5.73 |
||
|
12
|
12
62Y-42727-00-00 Grommet |
62Y-42727-00-00 |
US $7.37 |
||
|
13
|
13
66M-42815-00-4D Lever, Clamp |
66M-42815-00-4D |
US $34.71 |
||
| replacement | |||||
|
13
|
13
66M-42815-00-8D Lever, Clamp 1 |
66M-42815-00-8D |
US $47.99 |
||
|
14
|
14
90386-12M37-00 Bush |
90386-12M37-00 |
from US $7.79 |
||
|
15
|
15
90386-12MA2-00 Bush |
90386-12MA2-00 |
from US $1.66 |
||
|
16
|
16
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.32 |
||
|
17
|
17
6L2-42816-00-00 Lever, Clamp |
6L2-42816-00-00 |
from US $11.14 |
||
|
18
|
18
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
19
|
19
66M-42766-00-00
Bracket 2
|
66M-42766-00-00 |
— | ||
|
20
|
20
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
21
|
21
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
21
|
21
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.93 |
||
|
22
|
22
65W-26326-10-00 Grommet |
65W-26326-10-00 |
US $7.93 |
||
|
23
|
23
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
24
|
24
682-42724-00-00 Grommet |
682-42724-00-00 |
US $5.67 |
||
| replacements | |||||
|
24
|
24
6G1-42724-00-00 Grommet |
6G1-42724-00-00 |
US $5.67 |
||
|
24
|
24
6G1-42724-01-00 Grommet |
6G1-42724-01-00 |
US $15.50 |
||
|
25
|
25
65W-42726-10-00 Grommet |
65W-42726-10-00 |
US $3.54 |
||
|
26
|
26
66M-42743-00-00 Bracket |
66M-42743-00-00 |
from US $4.11 |
||
|
27
|
27
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
28
|
28
90465-25M95-00 Clamp |
90465-25M95-00 |
from US $5.58 |
||
|
29
|
29
904-6409M-13-00
Clamp
|
904-6409M-13-00 |
— | ||
| replacement | |||||
|
29
|
29
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.84 |
||
|
30
|
30
688-42726-10-00 Grommet |
688-42726-10-00 |
US $4.11 |
||
|
31
|
31
62Y-82377-00-00
Label
|
62Y-82377-00-00 |
— | ||
|
32
|
32
6A1-28176-00-00 Label, Caution |
6A1-28176-00-00 |
US $1.40 |
||
|
33
|
33
6E3-8257H-00-00 Plate, Mark |
6E3-8257H-00-00 |
from US $4.96 |
||
|
34
|
34
6G8-13444-51-00 Mark |
6G8-13444-51-00 |
US $3.82 |
||
