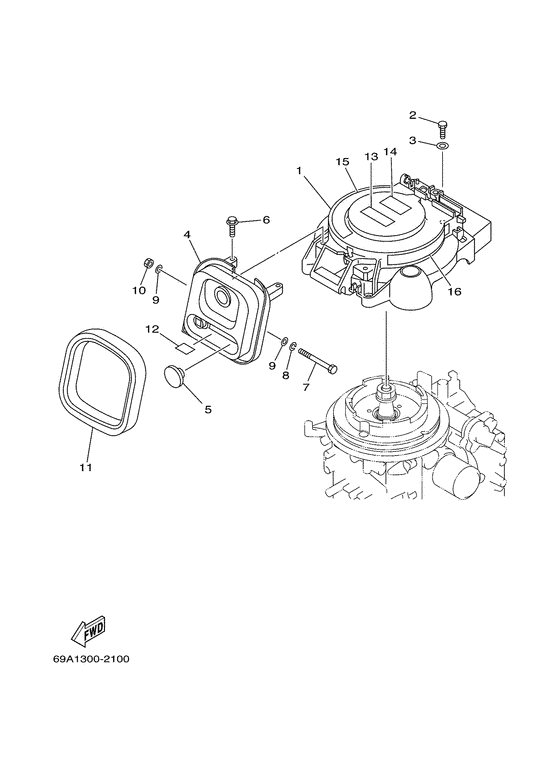

Starter Diagram Yamaha F15 E(H)PS/L
- Year
- 2002
- Model
- F15A
- Model code
- 69A
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
66M-15711-10-00 Case, Starter |
66M-15711-10-00 |
US $136.23 |
||
| replacement | |||||
|
01
|
01
66M-15711-01-00 Case, Starter |
66M-15711-01-00 |
from US $136.23 |
||
|
02
|
02
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
02
|
02
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
03
|
03
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
04
|
04
66M-15758-10-00
Guide, Rope
|
66M-15758-10-00 |
— | ||
|
05
|
05
6G1-42725-00-00 Passe-Fil |
6G1-42725-00-00 |
US $5.24 |
||
|
06
|
06
90119-06M59-00 Bolt, With Washer |
90119-06M59-00 |
US $2.83 |
||
| replacement | |||||
|
06
|
06
901-19062-89-00 BOLT WITH WASHER |
901-19062-89-00 |
from US $2.32 |
||
|
07
|
07
97095-06090-00 Bolt |
97095-06090-00 |
from US $7.87 |
||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
09
|
09
90201-06M05-00 Washer, Plate |
90201-06M05-00 |
US $1.56 |
||
| replacement | |||||
|
09
|
09
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
10
|
10
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
10
|
10
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
11
|
11
66M-15762-00-00 Seal, Rubber 2 |
66M-15762-00-00 |
US $33.36 |
||
|
12
|
12
66M-84342-00-00
Seat, Emblem
|
66M-84342-00-00 |
— | ||
|
13
|
13
6A1-83625-41-00 Mark 5 |
6A1-83625-41-00 |
from US $7.25 |
||
|
14
|
14
6A1-83625-51-00 Mark 5 |
6A1-83625-51-00 |
US $4.26 |
||
|
15
|
15
66M-14427-60-00 Label, Instruction |
66M-14427-60-00 |
US $10.13 |
||
|
16
|
16
6G8-13437-63-00 Mark, Caution |
6G8-13437-63-00 |
US $2.94 |
||
