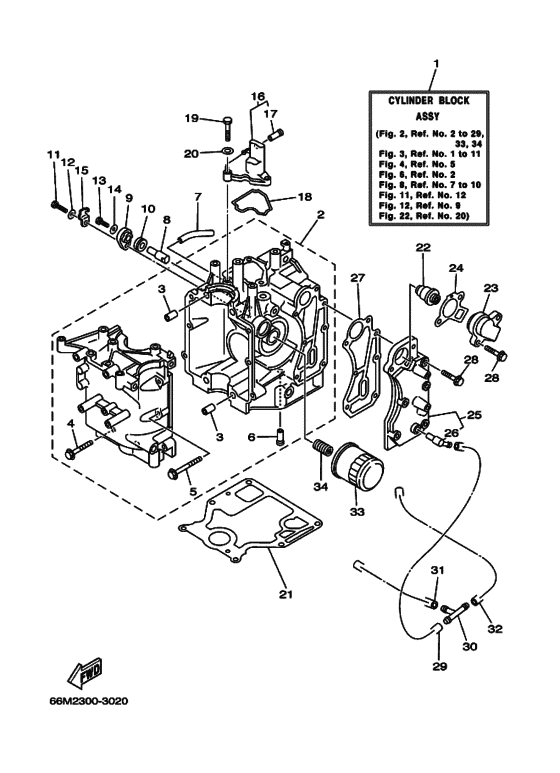

Cylinder & crankcase 1 Diagram Yamaha F15 M(E/W)HS/L
- Year
- 2003
- Model
- F15A
- Model code
- 66M
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (230)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
66M-W009B-11-1S Cylinder Block AssyFLUSHING KIT |
66M-W009B-11-1S |
US $2,334.36 |
||
replacement | |||||
1
|
1
66M-W009B-13-1S Cylinder Block Assy (With ReliFLUSHING KIT |
66M-W009B-13-1S |
US $2,334.36 |
||
2
|
2
66M-15100-01-1S Crankcase Assy |
66M-15100-01-1S |
US $799.96 |
||
replacement | |||||
2
|
2
66M-15100-03-00 Crankcase Assy |
66M-15100-03-00 |
US $784.94 |
||
3
|
3
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
replacement | |||||
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.94 |
||
4
|
4
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
US $7.03 |
||
5
|
5
90119-06M14-00 Bolt, With Washer |
90119-06M14-00 |
from US $5.15 |
||
6
|
6
6E5-24377-00-00 Pipe, Joint 2 |
6E5-24377-00-00 |
US $7.03 |
||
7
|
7
90445-10M46-00 Hose (L65) |
90445-10M46-00 |
from US $3.44 |
||
replacement | |||||
7
|
7
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $3.44 |
||
8
|
8
66M-11325-00-00 Anode |
66M-11325-00-00 |
US $8.38 |
||
9
|
9
66M-11327-00-94 Cover, Anode |
66M-11327-00-94 |
US $5.54 |
||
10
|
10
66M-11328-00-00 Grommet, Anode |
66M-11328-00-00 |
US $1.65 |
||
11
|
11
97095-06020-00 Bolt |
97095-06020-00 |
US $1.50 |
||
replacement | |||||
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
US $1.50 |
||
12
|
12
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
replacement | |||||
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
13
|
13
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.06 |
||
14
|
14
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
replacement | |||||
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $0.90 |
||
15
|
15
66M-12535-00-00 Plate |
66M-12535-00-00 |
US $3.14 |
||
16
|
16
66M-11168-00-1S Cover, Breather |
66M-11168-00-1S |
US $35.10 |
||
17
|
17
6E5-24377-00-00 Pipe, Joint 2 |
6E5-24377-00-00 |
US $7.03 |
||
18
|
18
66M-11357-00-00 Seal, Cylinder 3 |
66M-11357-00-00 |
US $4.49 |
||
19
|
19
97095-06020-00 Bolt |
97095-06020-00 |
US $1.50 |
||
replacement | |||||
19
|
19
970-80060-20-00 Bolt |
970-80060-20-00 |
US $1.50 |
||
20
|
20
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
replacement | |||||
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
21
|
21
66M-11351-00-00 Gasket, Cylinder |
66M-11351-00-00 |
US $48.35 |
||
replacement | |||||
21
|
21
66M-11351-10-00 Gasket, Cylinder |
66M-11351-10-00 |
from US $42.16 |
||
22
|
22
66M-12411-00-00 Thermostat |
66M-12411-00-00 |
US $40.90 |
||
replacement | |||||
22
|
22
66M-12411-01-00 Thermostat |
66M-12411-01-00 |
from US $40.90 |
||
23
|
23
6H3-12413-00-1S Cover, Thermostat |
6H3-12413-00-1S |
US $27.08 |
||
24
|
24
62Y-12414-00-00 Gasket, Cover |
62Y-12414-00-00 |
from US $4.49 |
||
25
|
25
66M-41113-10-1S Outer Cover, ExhaustFLUSHING KIT |
66M-41113-10-1S |
US $50.20 |
||
replacement | |||||
25
|
25
66M-41113-11-1S MANIFOLD, EXT. 1FLUSHING KIT |
66M-41113-11-1S |
US $50.20 |
||
26
|
26
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
US $12.12 |
||
27
|
27
66M-41114-00-00 Gasket, Exhaust Outer Cover |
66M-41114-00-00 |
US $21.99 |
||
replacement | |||||
27
|
27
66M-41114-01-00 Gasket, Exhaust Outer Cover |
66M-41114-01-00 |
US $21.99 |
||
28
|
28
90119-06MA4-00 Bolt, With Washer |
90119-06MA4-00 |
from US $1.80 |
||
29
|
29
90445-09061-00 Hose (L65) |
90445-09061-00 |
from US $3.74 |
||
replacements | |||||
29
|
29
90445-094K7-00 Hose (L180) |
90445-094K7-00 |
from US $2.57 |
||
29
|
29
904-45090-87-00 Hose (L170) |
904-45090-87-00 |
US $3.67 |
||
30
|
30
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $6.28 |
||
31
|
31
90445-09086-00 Hose (L170) |
90445-09086-00 |
from US $5.98 |
||
replacements | |||||
31
|
31
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $12 |
||
31
|
31
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.14 |
||
32
|
32
90445-09105-00 Hose (L300) |
90445-09105-00 |
from US $5.98 |
||
replacement | |||||
32
|
32
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.14 |
||
33
|
33
5GH-13440-00-00
Element Assy, Oil Cleaner
|
5GH-13440-00-00 |
— | ||
replacement | |||||
33
|
33
5GH-13440-71-00 ELEMENT ASSY, OIL CLEANER |
5GH-13440-71-00 |
from US $18.15 |
||
34
|
34
90401-20M00-00 Bolt, Union |
90401-20M00-00 |
US $7.18 |
