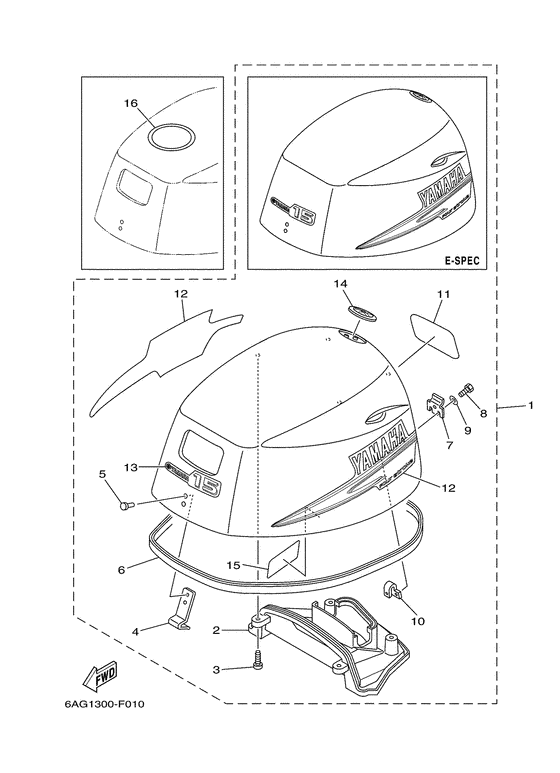

Top cowling Diagram Yamaha F15 M(E/W/H/P)S/L
- Year
- 2007
- Model
- F15C
- Model code
- 6AG
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (General) (140)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6AG-42610-10-4D
Top Cowling Assy
|
6AG-42610-10-4D |
— | ||
| replacement | |||||
|
01
|
01
6AG-42610-11-00
Top Cowling Assy
|
6AG-42610-11-00 |
— | ||
|
02
|
02
6AH-42613-00-00 Molding, Air Duct |
6AH-42613-00-00 |
US $50.57 |
||
|
03
|
03
977-80506-16-00
Screw, Tapping
|
977-80506-16-00 |
— | ||
| replacement | |||||
|
03
|
03
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.42 |
||
|
04
|
04
6AH-42651-00-00 Hook |
6AH-42651-00-00 |
from US $9.78 |
||
|
05
|
05
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
06
|
06
6AH-42615-00-00 Seal |
6AH-42615-00-00 |
from US $32.02 |
||
|
07
|
07
60R-42652-00-00 Hook |
60R-42652-00-00 |
US $6.38 |
||
| replacement | |||||
|
07
|
07
6EE-G2652-00-00 Hook |
6EE-G2652-00-00 |
from US $6.38 |
||
|
08
|
08
97095-05014-00 Bolt |
97095-05014-00 |
US $2.98 |
||
| replacement | |||||
|
08
|
08
97595-05514-00 Bolt, With Washer |
97595-05514-00 |
from US $1.56 |
||
|
09
|
09
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
10
|
10
6AH-42649-00-00 Holder, Clamp Band |
6AH-42649-00-00 |
from US $13.46 |
||
|
11
|
11
6AG-42678-00-00 Graphic, Rear |
6AG-42678-00-00 |
US $7.08 |
||
| replacements | |||||
|
11
|
11
6AG-42677-20-00 Graphic, Front |
6AG-42677-20-00 |
US $7.08 |
||
|
11
|
11
6AG-42677-21-00 Graphic, Front |
6AG-42677-21-00 |
from US $7.08 |
||
|
12
|
12
6AH-W0070-00-00 Graphic Set |
6AH-W0070-00-00 |
US $55.13 |
||
|
13
|
13
6AG-42677-00-00 Graphic, Front |
6AG-42677-00-00 |
US $7.08 |
||
| replacements | |||||
|
13
|
13
6AG-42677-20-00 Graphic, Front |
6AG-42677-20-00 |
US $7.08 |
||
|
13
|
13
6AG-42677-21-00 Graphic, Front |
6AG-42677-21-00 |
from US $7.08 |
||
|
14
|
14
6AH-42697-00-00 Tuning Fork Mark |
6AH-42697-00-00 |
US $33.15 |
||
| replacement | |||||
|
14
|
14
6AH-42697-10-00 Tuning Fork Mark |
6AH-42697-10-00 |
from US $28.96 |
||
|
15
|
15
6AH-42735-00-00 Protector |
6AH-42735-00-00 |
from US $17.28 |
||
|
16
|
16
67F-13434-03-00
Label, Caution
|
67F-13434-03-00 |
— | ||
| replacement | |||||
|
16
|
16
67F-13434-20-00
Label, Caution
|
67F-13434-20-00 |
— | ||
