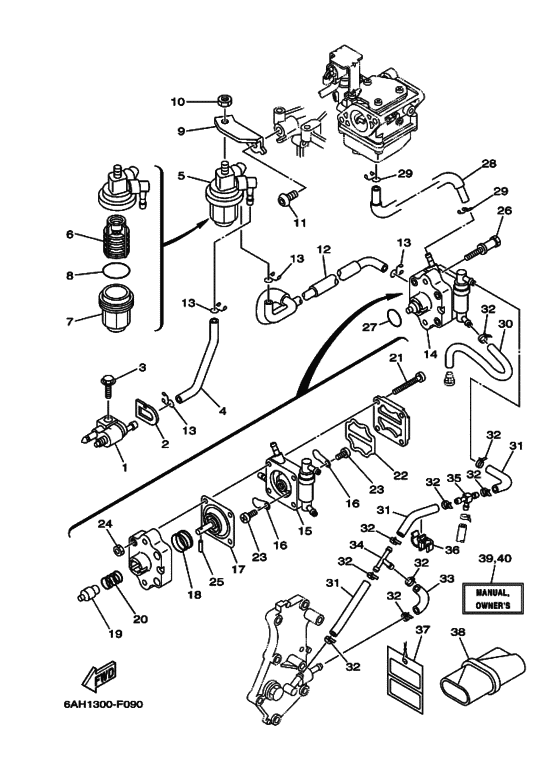

Fuel Diagram Yamaha F15 M(E/W/H/P)S/L
- Year
- 2007
- Model
- F15C
- Model code
- 6AG
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (140)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
1
|
1
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $29.47 |
||
|
1
|
1
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $30.10 |
||
|
2
|
2
61N-24329-00-00 Seal |
61N-24329-00-00 |
US $3.26 |
||
| replacement | |||||
|
2
|
2
61N-24329-01-00 Seal |
61N-24329-01-00 |
from US $3.26 |
||
|
3
|
3
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
3
|
3
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
3
|
3
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
3
|
3
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
4
|
4
6AH-24311-00-00 Pipe, Fuel 1 |
6AH-24311-00-00 |
US $5.53 |
||
| replacement | |||||
|
4
|
4
6AH-24311-10-00 Pipe, Fuel 1 |
6AH-24311-10-00 |
from US $10.34 |
||
|
5
|
5
61N-24560-00-00 Filter Assy |
61N-24560-00-00 |
US $42.69 |
||
| replacement | |||||
|
5
|
5
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $24.80 |
||
|
6
|
6
61N-24563-00-00 Element, Filter |
61N-24563-00-00 |
from US $7.65 |
||
| replacement | |||||
|
6
|
6
61N-24563-10-00 Element, Filter |
61N-24563-10-00 |
from US $7.65 |
||
|
7
|
7
61N-24521-00-00 Cup, Filter |
61N-24521-00-00 |
from US $13.46 |
||
|
8
|
8
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.34 |
||
|
9
|
9
6AH-24566-00-00 Bracket, Filter |
6AH-24566-00-00 |
from US $8.64 |
||
|
10
|
10
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
10
|
10
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
11
|
11
90111-08055-00 Bolt,hex. Socket Button |
90111-08055-00 |
from US $6.52 |
||
|
12
|
12
6AH-24312-00-00 Pipe 2 |
6AH-24312-00-00 |
US $39.38 |
||
| replacement | |||||
|
12
|
12
6AH-24312-10-00 Pipe 2 |
6AH-24312-10-00 |
from US $39.38 |
||
|
13
|
13
90467-09M17-00 Clip |
90467-09M17-00 |
US $1.84 |
||
| replacement | |||||
|
13
|
13
90467-09M09-00 Clip(6K8) |
90467-09M09-00 |
from US $1.71 |
||
|
14
|
14
6AH-24410-00-00 Fuel Pump Assy |
6AH-24410-00-00 |
US $132.36 |
||
|
15
|
15
6AH-24413-00-00 Body 2 |
6AH-24413-00-00 |
from US $64.38 |
||
|
16
|
16
6A0-24421-01-00 Valve,check |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
16
|
16
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $18.94 |
||
|
17
|
17
66M-24411-11-00 Diaphragm |
66M-24411-11-00 |
US $24.65 |
||
| replacement | |||||
|
17
|
17
66M-24411-12-00 Diaphragm |
66M-24411-12-00 |
from US $24.65 |
||
|
18
|
18
66M-24423-00-00 Spring, Diaphragm |
66M-24423-00-00 |
from US $5.95 |
||
|
19
|
19
66M-13131-10-00 Plunger |
66M-13131-10-00 |
from US $33.44 |
||
|
20
|
20
66M-24454-00-00 Spring |
66M-24454-00-00 |
from US $5.24 |
||
|
21
|
21
66M-24444-00-00 Screw |
66M-24444-00-00 |
from US $2.13 |
||
|
22
|
22
66M-24471-01-00 Diaphragm |
66M-24471-01-00 |
US $8.22 |
||
| replacement | |||||
|
22
|
22
66M-24471-02-00 Diaphragm |
66M-24471-02-00 |
from US $8.22 |
||
|
23
|
23
6E7-14325-00-00 Screw, Pan Head |
6E7-14325-00-00 |
from US $2.55 |
||
|
24
|
24
95380-04600-00 Nut |
95380-04600-00 |
US $1.07 |
||
| replacement | |||||
|
24
|
24
95303-04600-00 Nut |
95303-04600-00 |
from US $2.55 |
||
|
25
|
25
66M-24374-00-00 Pin |
66M-24374-00-00 |
from US $3.97 |
||
|
26
|
26
90109-06215-00 Bolt |
90109-06215-00 |
from US $10.34 |
||
|
27
|
27
93210-20M65-00 1081 O-Ring |
93210-20M65-00 |
from US $4.39 |
||
| replacement | |||||
|
27
|
27
93210-20801-00 O-Ring |
93210-20801-00 |
from US $1.28 |
||
|
28
|
28
6AH-24313-00-00 Pipe 3 |
6AH-24313-00-00 |
US $17.14 |
||
| replacement | |||||
|
28
|
28
6AH-24313-10-00 Pipe 3 |
6AH-24313-10-00 |
from US $22.53 |
||
|
29
|
29
90467-09M17-00 Clip |
90467-09M17-00 |
US $1.84 |
||
| replacement | |||||
|
29
|
29
90467-09M09-00 Clip(6K8) |
90467-09M09-00 |
from US $1.71 |
||
|
30
|
30
6AH-24315-00-00 Pipe 5 |
6AH-24315-00-00 |
from US $10.48 |
||
|
31
|
31
90445-09026-00 Hose (L68) |
90445-09026-00 |
US $1.98 |
||
| replacements | |||||
|
31
|
31
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
31
|
31
90445-09068-00 Hose (L110) |
90445-09068-00 |
from US $1.98 |
||
|
32
|
32
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
32
|
32
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
32
|
32
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
33
|
33
6AH-24317-00-00 Pipe 7 |
6AH-24317-00-00 |
from US $6.80 |
||
|
34
|
34
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $6.94 |
||
|
35
|
35
6C5-24378-00-00 Pipe, Joint 3 |
6C5-24378-00-00 |
from US $6.38 |
||
|
36
|
36
90464-09018-00 Clamp |
90464-09018-00 |
from US $3.40 |
||
|
37
|
37
61H-2819R-31-00 Tag, WarningEXCEPT FOR RUS |
61H-2819R-31-00 |
US $4.84 |
||
|
38
|
38
62Y-28100-00-00 Tool Kit |
62Y-28100-00-00 |
US $37.17 |
||
|
39
|
39
6AG-28199-71-E0
Manual,owner's
UR (E) |
6AG-28199-71-E0 |
— | ||
|
39
|
39
6AG-28199-71-F0
Manual,owner's
UR (F) |
6AG-28199-71-F0 |
— | ||
|
39
|
39
6AG-28199-71-S0
Manual,owner's
UR (ES) |
6AG-28199-71-S0 |
— | ||
|
39
|
39
6AG-28199-71-G0
Manual,owner's
UR (D) |
6AG-28199-71-G0 |
— | ||
|
39
|
39
6AG-28199-71-D0
Manual,owner's
UR (NL) |
6AG-28199-71-D0 |
— | ||
|
39
|
39
6AG-28199-71-H0
Manual,owner's
UR (I) |
6AG-28199-71-H0 |
— | ||
|
40
|
40
6AG-28199-81-K0
Manual,owner's
UR (DK) |
6AG-28199-81-K0 |
— | ||
|
40
|
40
6AG-28199-81-R0
Manual,owner's
UR (GR) |
6AG-28199-81-R0 |
— | ||
|
40
|
40
6AG-28199-81-P0
Manual,owner's
UR (P) |
6AG-28199-81-P0 |
— | ||
|
40
|
40
6AG-28199-81-N0
Manual,owner's
UR (N) |
6AG-28199-81-N0 |
— | ||
|
40
|
40
6AG-28199-81-M0
Manual,owner's
UR (S) |
6AG-28199-81-M0 |
— | ||
|
40
|
40
6AG-28199-81-L0
Manual,owner's
UR (SF) |
6AG-28199-81-L0 |
— | ||
