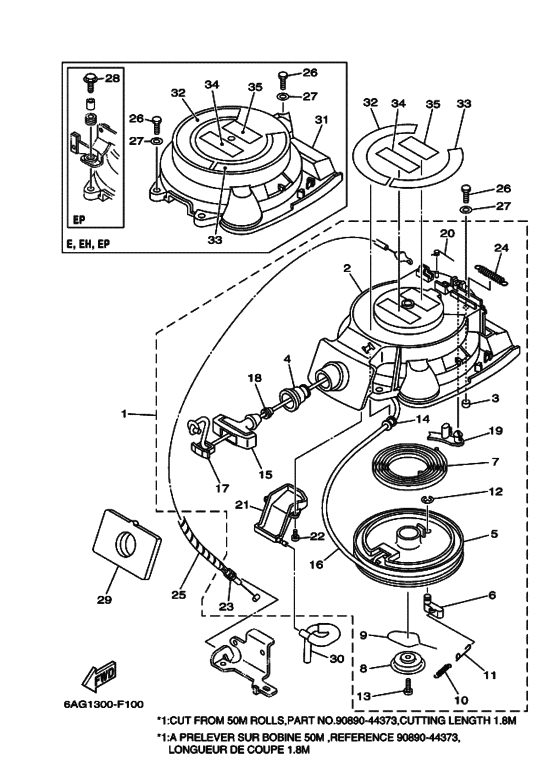

Starter Diagram Yamaha F15 M(E/W/H/P)S/L
- Year
- 2007
- Model
- F15C
- Model code
- 6AG
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (150)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26
|
26
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
26
|
26
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
27
|
27
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
90119-06169-00 Bolt, With Washer |
90119-06169-00 |
from US $2.55 |
||
|
31
|
31
6AH-81337-00-00 Cover, Flywheel |
6AH-81337-00-00 |
from US $40.76 |
||
|
32
|
32
6AH-14427-60-00 Label, Instruction |
6AH-14427-60-00 |
from US $15.16 |
||
|
33
|
33
6AH-13437-60-00 Mark, Caution |
6AH-13437-60-00 |
US $4.68 |
||
|
34
|
34
6A1-83625-41-00 Mark 5 |
6A1-83625-41-00 |
from US $7.25 |
||
|
35
|
35
6A1-83625-51-00 Mark 5 |
6A1-83625-51-00 |
US $4.26 |
||
