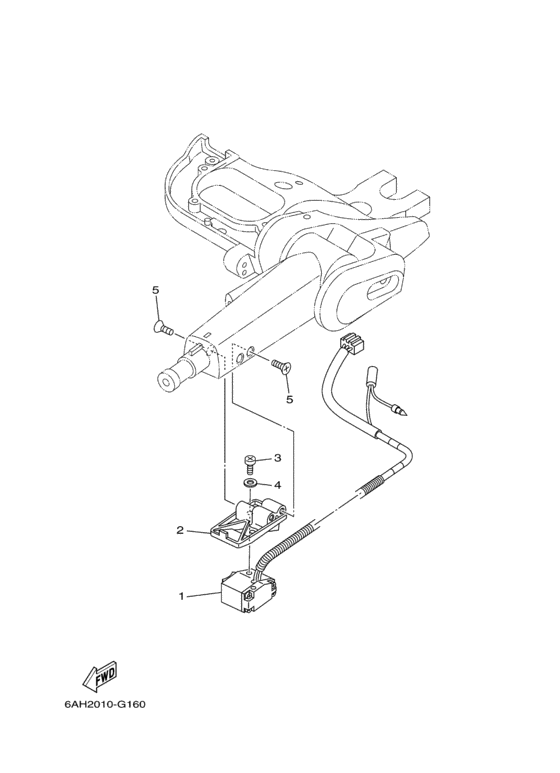

Electrical Diagram Yamaha F15 CPS/LH
- Year
- 2008
- Model
- F15
- Year
- 2008
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6AH-82563-00-00 Trim & Tilt Switch Assy |
6AH-82563-00-00 |
from US $101.13 |
||
|
2
|
2
69A-42176-00-00 Stay 2 |
69A-42176-00-00 |
from US $20.83 |
||
|
3
|
3
97885-06020-00 Screw, Pan Head |
97885-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
90151-06040-00 Screw, Countersunk |
90151-06040-00 |
from US $1.98 |
||
