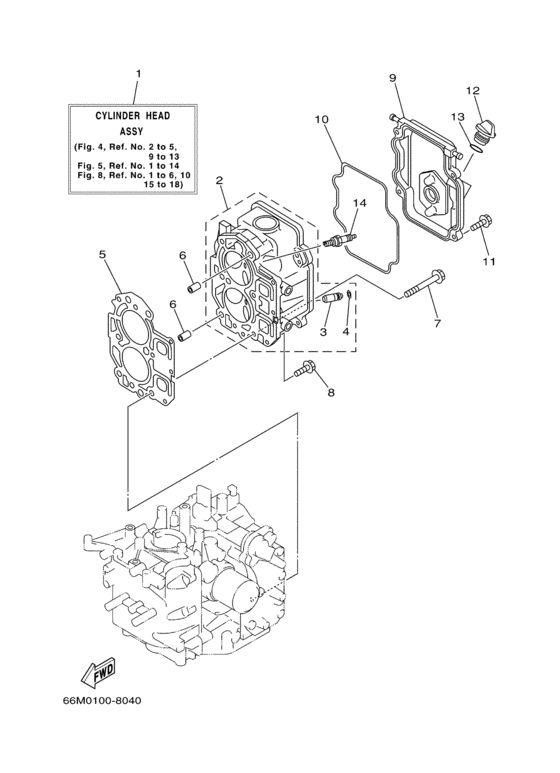

Cylinder crankcase Diagram Yamaha F15 MS/LH
- Year
- 2000
- Model
- F15
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66M-W009A-00-4D
Cylinder Head Complete
|
66M-W009A-00-4D |
— | ||
| replacement | |||||
|
1
|
1
66M-W009A-13-1S
Cylinder Head Complete
|
66M-W009A-13-1S |
— | ||
|
2
|
2
66M-11111-00-94
Head, Cylinder 1
|
66M-11111-00-94 |
— | ||
| replacements | |||||
|
2
|
2
66M-11111-08-1S Head, Cylinder 1 |
66M-11111-08-1S |
US $1,045.38 |
||
|
2
|
2
66M-11111-09-1S
Head, Cylinder 1
|
66M-11111-09-1S |
— | ||
|
3
|
3
66M-11133-10-00
Guide, Valve 1
|
66M-11133-10-00 |
— | ||
| replacement | |||||
|
3
|
3
66M-11133-29-00
Guide, Valve 1
|
66M-11133-29-00 |
— | ||
|
4
|
4
93450-09M01-00 Circlip |
93450-09M01-00 |
from US $1.49 |
||
|
5
|
5
66M-11181-00-00 Gasket, Cylinder Head 1 |
66M-11181-00-00 |
US $73.09 |
||
| replacement | |||||
|
5
|
5
66M-11181-10-00 Gasket, Cylinder Head 1 |
66M-11181-10-00 |
from US $51.58 |
||
|
6
|
6
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
6
|
6
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
7
|
7
90105-08M78-00 Bolt, Flange |
90105-08M78-00 |
from US $4.11 |
||
|
8
|
8
97513-06525-00 Bolt, With Washer |
97513-06525-00 |
from US $1.84 |
||
|
9
|
9
66M-11191-00-94 Cover, Cylinder Head 1 |
66M-11191-00-94 |
US $62.54 |
||
| replacement | |||||
|
9
|
9
66M-11191-00-1S Cover, Cylinder Head 1 |
66M-11191-00-1S |
from US $62.54 |
||
|
10
|
10
66M-11356-00-00 Seal, Cylinder 2 |
66M-11356-00-00 |
from US $9.78 |
||
|
11
|
11
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
11
|
11
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
12
|
12
6G8-15363-00-00 Plug, Oil |
6G8-15363-00-00 |
from US $4.64 |
||
|
13
|
13
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
13
|
13
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.32 |
||
|
13
|
13
93210-24800-00 O-Ring |
93210-24800-00 |
from US $1.28 |
||
|
14
|
14
NGK-DPR6E-A9-00
Plug, Spark (Ngk Dpr6Ea-9)
|
NGK-DPR6E-A9-00 |
— | ||
| replacement | |||||
|
14
|
14
DPR-6EA90-00-00 Plug, Spark (Ngk Dpr6Eb) |
DPR-6EA90-00-00 |
US $68.90 |
||
