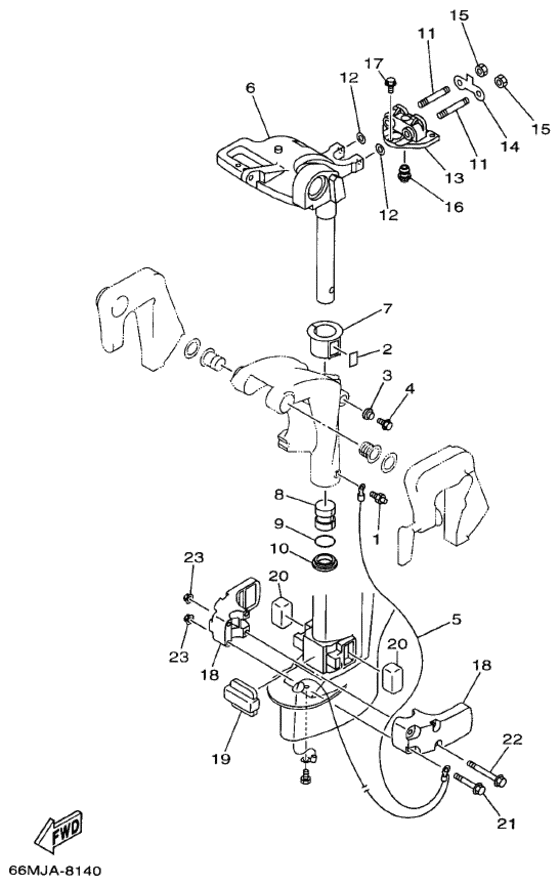

Bracket Diagram Yamaha F15 MS/LH
- Year
- 1998
- Model
- F15
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
2
|
2
63V-42528-00-00 Plate, Friction |
63V-42528-00-00 |
from US $7.23 |
||
|
3
|
3
689-43373-01-00 Seal, Damper |
689-43373-01-00 |
US $4.53 |
||
|
4
|
4
90105-06M07-00 Bolt, Flange |
90105-06M07-00 |
from US $2.16 |
||
|
5
|
5
66M-82127-00-00 Wire, Lead 2 |
66M-82127-00-00 |
US $33.45 |
||
|
6
|
6
66M-42511-00-4D Bracket, Steering |
66M-42511-00-4D |
US $373.51 |
||
| replacement | |||||
|
6
|
6
66M-42511-01-4D Bracket, Steering |
66M-42511-01-4D |
from US $373.51 |
||
|
6
|
6
66M-42511-10-4D Bracket, Steering |
66M-42511-10-4D |
US $491.04 |
||
| replacement | |||||
|
6
|
6
66M-42511-11-4D Bracket, Steering |
66M-42511-11-4D |
from US $478.01 |
||
|
7
|
7
63V-42537-00-00 Bushing, Pivot Shaft |
63V-42537-00-00 |
from US $16.70 |
||
|
8
|
8
90386-30048-00 Bush |
90386-30048-00 |
from US $7.51 |
||
|
9
|
9
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2 |
||
|
10
|
10
90386-30M60-00 Bush |
90386-30M60-00 |
from US $2.66 |
||
|
11
|
11
90116-08M54-00 Bolt, Stud |
90116-08M54-00 |
from US $4.39 |
||
|
12
|
12
90201-08M06-00 Washer, Plate |
90201-08M06-00 |
from US $5.45 |
||
|
13
|
13
66M-44514-00-4D Mount Damper, Upper Side |
66M-44514-00-4D |
US $85.11 |
||
|
14
|
14
66M-44526-00-00 Plate |
66M-44526-00-00 |
from US $10.06 |
||
|
15
|
15
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
15
|
15
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
15
|
15
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
16
|
16
66M-44366-00-00 Damper, Water Seal 2 |
66M-44366-00-00 |
from US $6.66 |
||
|
17
|
17
97575-06525-00 Bolt, With Washer |
97575-06525-00 |
US $1.07 |
||
|
18
|
18
66M-44551-00-4D Housing, Lower Mount Rubber 1 |
66M-44551-00-4D |
US $83.45 |
||
|
19
|
19
66M-44557-00-00 Mount Damper, Lower Front |
66M-44557-00-00 |
from US $13.32 |
||
|
20
|
20
682-44555-30-00 Mount Damper, Lower Side |
682-44555-30-00 |
from US $11.76 |
||
|
21
|
21
90119-08M45-00 Bolt, With Washer |
90119-08M45-00 |
from US $9.63 |
||
|
22
|
22
90119-08M46-00 Bolt, With Washer |
90119-08M46-00 |
from US $9.21 |
||
|
23
|
23
90179-08M34-00 Nut |
90179-08M34-00 |
from US $4.68 |
||
