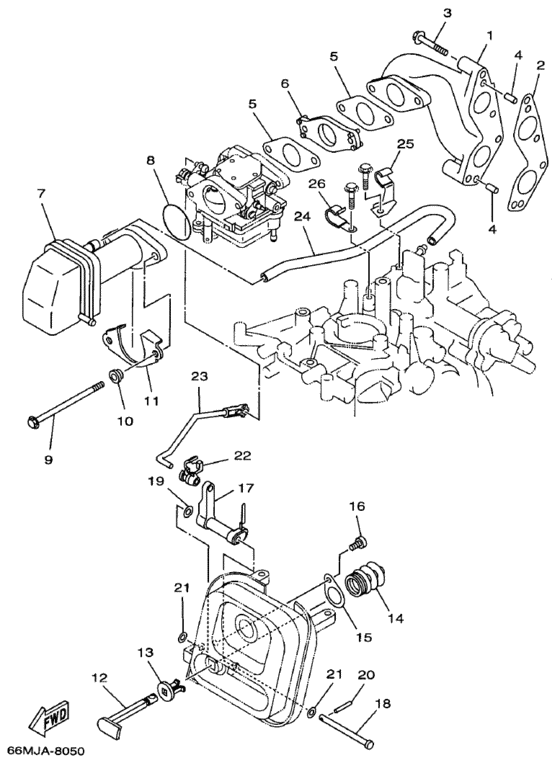

Intake Diagram Yamaha F15 MS/LH
- Year
- 1998
- Model
- F15
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
66M-13641-00-94 Manifold, Intake 1 |
66M-13641-00-94 |
US $176.76 |
||
2
|
2
66M-13645-00-00 Gasket, Manifold 1 |
66M-13645-00-00 |
US $3.74 |
||
3
|
3
97595-06540-00 Bolt, With Washer |
97595-06540-00 |
from US $0.90 |
||
4
|
4
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.54 |
||
5
|
5
66M-13646-00-00 Gasket, Manifold 2 |
66M-13646-00-00 |
US $4.04 |
||
6
|
6
66M-14271-00-00 Insulator |
66M-14271-00-00 |
US $8.08 |
||
7
|
7
66M-14440-00-00 Silencer Assy, Intake |
66M-14440-00-00 |
US $32.46 |
||
8
|
8
93210-35M86-00 O-Ring |
93210-35M86-00 |
from US $2.06 |
||
9
|
9
90119-06M76-00 Bolt, With Washer |
90119-06M76-00 |
from US $4.27 |
||
10
|
10
90387-06M79-00 Collar |
90387-06M79-00 |
US $6.73 |
||
11
|
11
66M-14477-00-00 Plate |
66M-14477-00-00 |
US $6.46 |
||
12
|
12
66M-41271-00-00 Knob, Choke |
66M-41271-00-00 |
US $10.17 |
||
13
|
13
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $4.12 |
||
14
|
14
66M-41292-00-00
Bush 2
|
66M-41292-00-00 |
— | ||
15
|
15
66M-41298-00-00 Washer 2 |
66M-41298-00-00 |
US $1.77 |
||
16
|
16
97780-50510-00 Screw, Tapping |
97780-50510-00 |
from US $1.94 |
||
replacement | |||||
16
|
16
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $1.94 |
||
17
|
17
66M-41252-00-00 Lever, Choke 1 |
66M-41252-00-00 |
US $16.46 |
||
18
|
18
90240-05M20-00 Pin, Clevis |
90240-05M20-00 |
US $8.83 |
||
19
|
19
90206-05005-00 Washer, Wave |
90206-05005-00 |
US $2.24 |
||
20
|
20
91690-20016-00 Pin, Spring |
91690-20016-00 |
US $2.99 |
||
21
|
21
90202-05088-00 Washer, Plate |
90202-05088-00 |
US $1.65 |
||
22
|
22
6R5-41237-00-00 Joint, Link |
6R5-41237-00-00 |
from US $6.52 |
||
23
|
23
66M-41256-00-00 Rod, Choke 1 |
66M-41256-00-00 |
US $27.68 |
||
24
|
24
66M-15373-00-00 Pipe, Breather |
66M-15373-00-00 |
US $8.83 |
||
25
|
25
90465-08M71-00 Clamp |
90465-08M71-00 |
US $8.23 |
||
replacement | |||||
25
|
25
90465-08M82-00 Clamp |
90465-08M82-00 |
US $8.23 |
||
26
|
26
90465-08M72-00 Clamp |
90465-08M72-00 |
US $7.48 |
||
replacement | |||||
26
|
26
90465-08M83-00 Clamp |
90465-08M83-00 |
US $7.48 |
