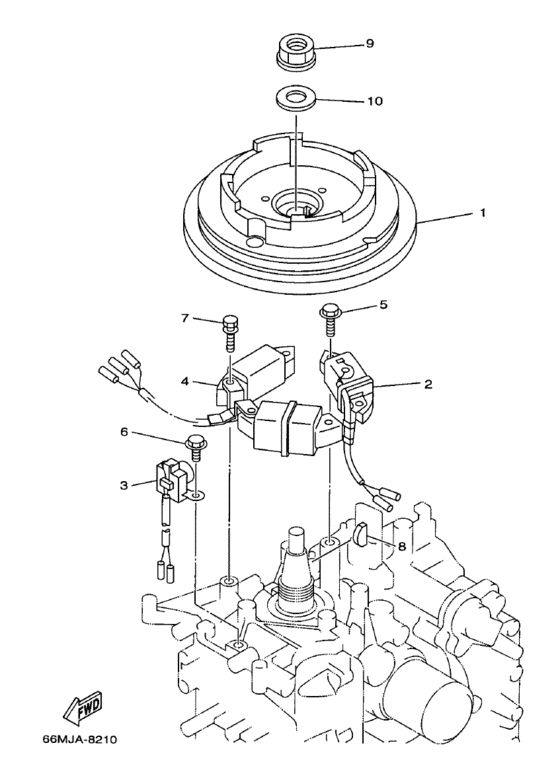

Generator Diagram Yamaha F15 MS/LH
- Year
- 1999
- Model
- F15
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66M-85550-00-00 Rotor Assembly |
66M-85550-00-00 |
US $507.41 |
||
|
1
|
1
66M-85550-10-00 Rotor Assy (With Ring Gear) |
66M-85550-10-00 |
from US $507.41 |
||
|
2
|
2
66M-85520-00-00 Coil, Charge |
66M-85520-00-00 |
US $112.19 |
||
|
3
|
3
66M-85580-00-00 Coil, Pulser |
66M-85580-00-00 |
from US $85.11 |
||
|
4
|
4
66M-85533-00-00
Coil, Lighting
|
66M-85533-00-00 |
— | ||
|
4
|
4
66M-85533-10-00
Coil, Lighting
|
66M-85533-10-00 |
— | ||
|
5
|
5
97595-06625-00 Bolt, With Washer |
97595-06625-00 |
US $1.07 |
||
|
6
|
6
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
6
|
6
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
7
|
7
97595-06530-00 Bolt, With Washer |
97595-06530-00 |
US $0.79 |
||
| replacement | |||||
|
7
|
7
97E95-06530-00 Bolt, Hexagon W/w De |
97E95-06530-00 |
from US $0.79 |
||
|
7
|
7
97595-06540-00 Bolt, With Washer |
97595-06540-00 |
from US $1.07 |
||
|
8
|
8
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
8
|
8
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
9
|
9
90179-16M05-00 Nut |
90179-16M05-00 |
from US $10.20 |
||
|
10
|
10
90201-16M44-00 Washer, Plate |
90201-16M44-00 |
from US $4.39 |
||
