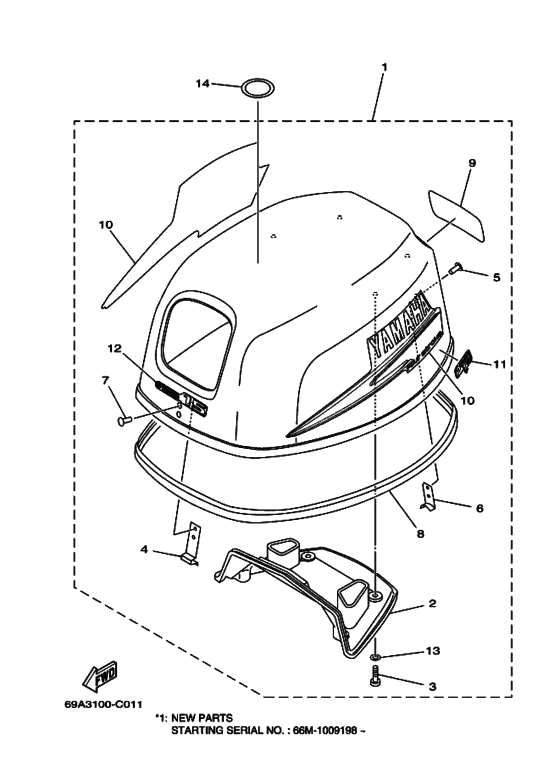

Top cowling Diagram Yamaha F15 E(H)PS/L
- Year
- 2004
- Model
- F15A
- Model code
- 69A
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- Europe (050)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69A-42610-11-4D
Top Cowling Assy
|
69A-42610-11-4D |
— | ||
| replacements | |||||
|
1
|
1
69A-42610-12-00
Top Cowling Assy
|
69A-42610-12-00 |
— | ||
|
1
|
1
69A-42610-12-4D
Top Cowling Assy
|
69A-42610-12-4D |
— | ||
| replacement | |||||
|
1
|
1
69A-42610-12-00
Top Cowling Assy
|
69A-42610-12-00 |
— | ||
|
1
|
1
69A-42610-12-4D
Top Cowling Assy
NEW PARTS *1 |
69A-42610-12-4D |
— | ||
| replacement | |||||
|
1
|
1
69A-42610-12-00
Top Cowling Assy
NEW PARTS *1 |
69A-42610-12-00 |
— | ||
|
2
|
2
66M-42613-00-00 Molding, Air Duct |
66M-42613-00-00 |
from US $20.94 |
||
|
3
|
3
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $1.66 |
||
|
4
|
4
65W-42651-01-00 Hook |
65W-42651-01-00 |
from US $12.27 |
||
|
5
|
5
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
6
|
6
66M-42652-00-00 Hook |
66M-42652-00-00 |
from US $4.19 |
||
|
7
|
7
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
8
|
8
66M-42615-00-00 Seal |
66M-42615-00-00 |
US $47.80 |
||
| replacement | |||||
|
8
|
8
6D4-42615-00-00 Seal |
6D4-42615-00-00 |
from US $37.45 |
||
|
8
|
8
6D4-42615-00-00 SealNEW PARTS *1 |
6D4-42615-00-00 |
from US $37.45 |
||
|
9
|
9
66M-42678-20-00 Graphic, Rear |
66M-42678-20-00 |
US $7.08 |
||
| replacements | |||||
|
9
|
9
63W-42678-20-00 Graphic, Rear |
63W-42678-20-00 |
US $7.08 |
||
|
9
|
9
6AG-42677-20-00 Graphic, Front |
6AG-42677-20-00 |
US $7.08 |
||
|
9
|
9
6AG-42677-21-00 Graphic, Front |
6AG-42677-21-00 |
from US $7.08 |
||
|
10
|
10
66M-W0070-20-00 Graphic Set |
66M-W0070-20-00 |
US $93.81 |
||
|
11
|
11
69A-42675-00-00 Graphic, Side 1 |
69A-42675-00-00 |
from US $12.33 |
||
|
12
|
12
66M-42677-00-00 Graphic, Front |
66M-42677-00-00 |
US $7.08 |
||
| replacements | |||||
|
12
|
12
6AG-42677-20-00 Graphic, Front |
6AG-42677-20-00 |
US $7.08 |
||
|
12
|
12
6AG-42677-21-00 Graphic, Front |
6AG-42677-21-00 |
from US $7.08 |
||
|
13
|
13
90202-05M38-00 Washer, Plate |
90202-05M38-00 |
from US $2.41 |
||
|
14
|
14
67F-13434-02-00 Label, Caution |
67F-13434-02-00 |
US $7.78 |
||
| replacement | |||||
|
14
|
14
67F-13434-20-00
Label, Caution
|
67F-13434-20-00 |
— | ||
