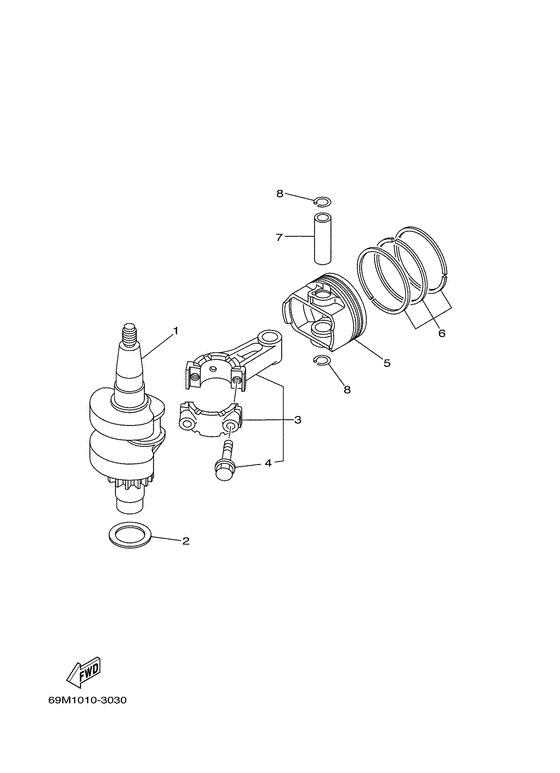

Crankshaft & Piston Diagram Yamaha F2.5 MHS/MHL
- Year
- 2003
- Model
- F2.5A
- Model code
- 69M
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 2.5
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
69M-11400-00-00 Crankshaft Assy |
69M-11400-00-00 |
from US $334.13 |
||
|
02
|
02
90201-23008-00 Washer, Plate |
90201-23008-00 |
from US $1.98 |
||
|
03
|
03
69M-11650-00-00 Connecting Rod Assy |
69M-11650-00-00 |
from US $98.62 |
||
| replacement | |||||
|
03
|
03
6EG-E1650-00-00 Connecting Rod Ass |
6EG-E1650-00-00 |
from US $67.01 |
||
|
04
|
04
7FK-11654-00-00
Bolt, Connecting Rod
|
7FK-11654-00-00 |
— | ||
| replacement | |||||
|
04
|
04
7DX-E1654-00-00 Bolt, Connecting Rod |
7DX-E1654-00-00 |
from US $1.98 |
||
|
05
|
05
69M-E1631-00-96 Piston (Std) |
69M-E1631-00-96 |
US $95.88 |
||
| replacement | |||||
|
05
|
05
69M-E1631-01-96 Piston (Std) |
69M-E1631-01-96 |
from US $86.98 |
||
|
06
|
06
69M-E1603-00-00 Piston Ring Set (Std) |
69M-E1603-00-00 |
US $58.86 |
||
| replacement | |||||
|
06
|
06
69M-E1603-01-00 Piston Ring Set (Std) |
69M-E1603-01-00 |
from US $58.86 |
||
|
07
|
07
69M-E1633-00-00 Pin, Piston |
69M-E1633-00-00 |
US $3.12 |
||
|
08
|
08
93450-13130-00 Circlip |
93450-13130-00 |
from US $2.02 |
||
