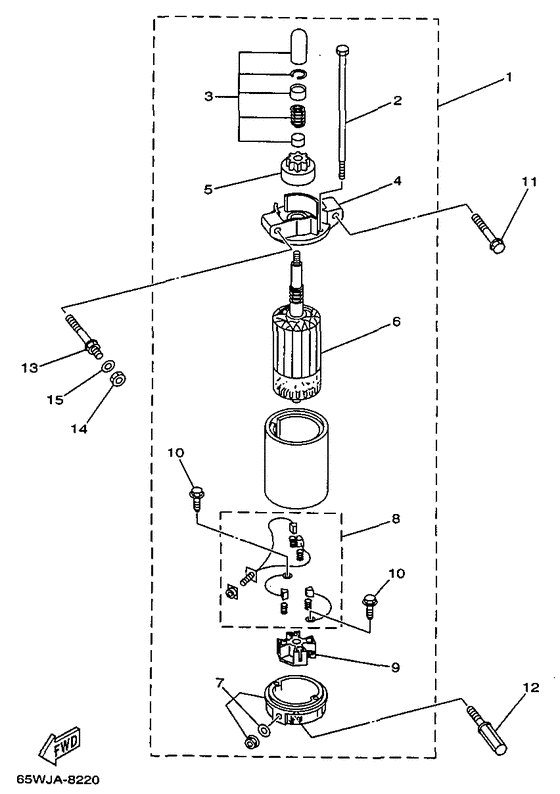

Starting motor Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 1998
- Model
- F20A
- Model code
- 65W
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-81800-00-00 Starting Motor Assembly |
65W-81800-00-00 |
US $864.60 |
||
| replacement | |||||
|
01
|
01
65W-81800-03-00 Starting Motor Assy |
65W-81800-03-00 |
from US $648.81 |
||
|
02
|
02
65W-81826-00-00 Bolt |
65W-81826-00-00 |
from US $10.22 |
||
|
03
|
03
65W-81857-00-00
Pinion Stopper Set
|
65W-81857-00-00 |
— | ||
|
04
|
04
65W-81830-00-00 Front Bracket Assy |
65W-81830-00-00 |
from US $163.61 |
||
|
05
|
05
65W-81807-00-00 Gear Assy, Starting Motor |
65W-81807-00-00 |
from US $281.85 |
||
|
06
|
06
65W-81850-00-00 Armature Assembly |
65W-81850-00-00 |
US $564.46 |
||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
65W-81820-00-00 Rear Bracket Assy |
65W-81820-00-00 |
from US $171.32 |
||
|
08
|
08
65W-81801-00-00 Brush Set |
65W-81801-00-00 |
from US $61.90 |
||
|
09
|
09
65W-81840-00-00 Brush Holder Assy |
65W-81840-00-00 |
from US $63.49 |
||
|
10
|
10
65W-8182S-00-00 Screw |
65W-8182S-00-00 |
from US $6.98 |
||
|
11
|
11
90119-08M39-00 Bolt, With Washer |
90119-08M39-00 |
from US $3.83 |
||
|
12
|
12
90109-08M77-00 Bolt |
90109-08M77-00 |
from US $14.54 |
||
|
13
|
13
90109-08M78-00 Bolt |
90109-08M78-00 |
from US $24.79 |
||
|
14
|
14
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
15
|
15
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
