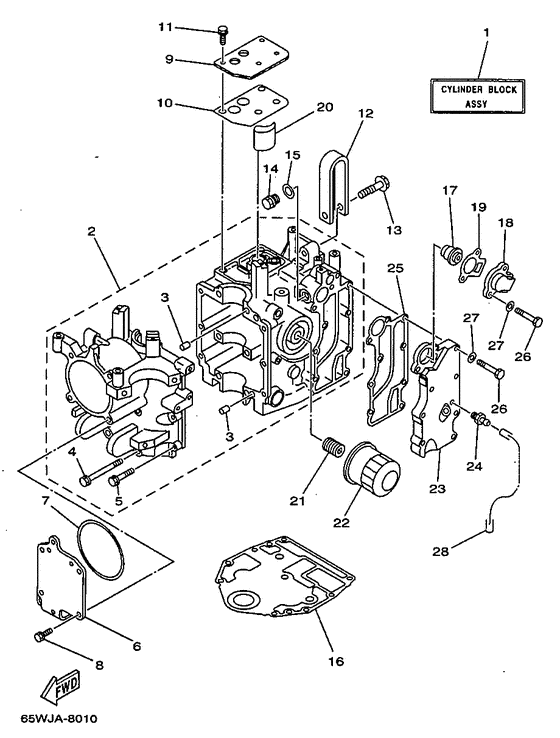

Cylinder. crankcase Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 1998
- Model
- F20A
- Model code
- 65W
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-W009B-00-4D
Cylinder Block Assy
F22 r4, f24 r24 |
65W-W009B-00-4D |
— | ||
| replacement | |||||
|
01
|
01
65W-W009B-12-1S
Cylinder Block Assy
F22 r4, f24 r24 |
65W-W009B-12-1S |
— | ||
|
02
|
02
65W-15100-00-94 Crankcase Assy |
65W-15100-00-94 |
US $2,296.80 |
||
| replacements | |||||
|
02
|
02
65W-15100-11-00 Crankcase Assy |
65W-15100-11-00 |
from US $1,265.47 |
||
|
02
|
02
65W-15100-11-1S Crankcase Assy |
65W-15100-11-1S |
US $2,296.80 |
||
|
03
|
03
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
04
|
04
90119-08M01-00 Bolt, With Washer |
90119-08M01-00 |
from US $4.39 |
||
|
05
|
05
975-13065-35-00
Bolt, With Washer
|
975-13065-35-00 |
— | ||
| replacement | |||||
|
05
|
05
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
06
|
06
65W-15121-00-00 Crankcase 2 |
65W-15121-00-00 |
US $178.23 |
||
| replacement | |||||
|
06
|
06
65W-15121-01-00 Crankcase 2 |
65W-15121-01-00 |
from US $171.32 |
||
|
07
|
07
65W-15663-00-00 Seal |
65W-15663-00-00 |
from US $8.32 |
||
|
08
|
08
65W-12228-00-00 Bolt |
65W-12228-00-00 |
from US $9.13 |
||
|
09
|
09
65W-11168-00-00 Cover, Breather |
65W-11168-00-00 |
US $44.24 |
||
| replacement | |||||
|
09
|
09
65W-11168-01-00 Cover, Breather |
65W-11168-01-00 |
from US $29.92 |
||
|
10
|
10
65W-11169-00-00
Gasket, Breather Cover
|
65W-11169-00-00 |
— | ||
| replacement | |||||
|
10
|
10
65W-11169-01-00 Gasket, Breather Cover |
65W-11169-01-00 |
from US $15.68 |
||
|
11
|
11
65W-12228-00-00 Bolt |
65W-12228-00-00 |
from US $9.13 |
||
|
12
|
12
65W-11119-00-00 Hanger, Engine |
65W-11119-00-00 |
US $19.39 |
||
|
13
|
13
65W-12157-00-00
Bolt
|
65W-12157-00-00 |
— | ||
|
14
|
14
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.51 |
||
|
15
|
15
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $2.08 |
||
|
16
|
16
65W-11351-00-00 Gasket, Cylinder |
65W-11351-00-00 |
US $49.18 |
||
| replacement | |||||
|
16
|
16
65W-11351-10-00 Gasket, Cylinder |
65W-11351-10-00 |
from US $46.80 |
||
|
17
|
17
6G8-12411-02-00
Thermostat
|
6G8-12411-02-00 |
— | ||
| replacement | |||||
|
17
|
17
66M-12411-01-00 Thermostat |
66M-12411-01-00 |
from US $41.57 |
||
|
18
|
18
6H3-12413-00-9M Cover, Thermostat |
6H3-12413-00-9M |
from US $29.47 |
||
| replacement | |||||
|
18
|
18
6H3-12413-00-1S Cover, Thermostat |
6H3-12413-00-1S |
from US $29.77 |
||
|
19
|
19
65W-12414-00-00 Gasket, Cover |
65W-12414-00-00 |
US $4.68 |
||
| replacements | |||||
|
19
|
19
62Y-12414-00-00 Gasket, Cover |
62Y-12414-00-00 |
from US $4.99 |
||
|
19
|
19
62Y-12414-01-00 GASKET COVER |
62Y-12414-01-00 |
from US $4.99 |
||
|
20
|
20
65W-13286-00-00 Cleaner |
65W-13286-00-00 |
from US $15.58 |
||
|
21
|
21
90401-20M00-00 Bolt, Union |
90401-20M00-00 |
from US $9.21 |
||
|
22
|
22
3FV-13440-00-00
Element Assy, Oil Cleaner
|
3FV-13440-00-00 |
— | ||
| replacements | |||||
|
22
|
22
3FV-13440-20-00 Element Assy, Oil Cleaner |
3FV-13440-20-00 |
from US $19.42 |
||
|
22
|
22
3FV-13440-30-00 ELEMENT ASSY, OIL CL |
3FV-13440-30-00 |
from US $19.42 |
||
|
23
|
23
65W-41113-00-94 Outer Cover, Exhaust |
65W-41113-00-94 |
US $75.16 |
||
| replacement | |||||
|
23
|
23
65W-41113-10-1S Outer Cover, Exhaust |
65W-41113-10-1S |
from US $75.16 |
||
|
24
|
24
62Y-12481-00-00 Pipe 1 |
62Y-12481-00-00 |
from US $7.11 |
||
|
25
|
25
65W-41114-00-00 Gasket, Exhaust Outer Cover |
65W-41114-00-00 |
US $22.67 |
||
| replacement | |||||
|
25
|
25
65W-41114-01-00 Gasket, Exhaust Outer Cover |
65W-41114-01-00 |
from US $20.66 |
||
|
26
|
26
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
26
|
26
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
27
|
27
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
28
|
28
90445-09252-00 Hose (L420) |
90445-09252-00 |
from US $6.52 |
||
| replacements | |||||
|
28
|
28
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
28
|
28
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
