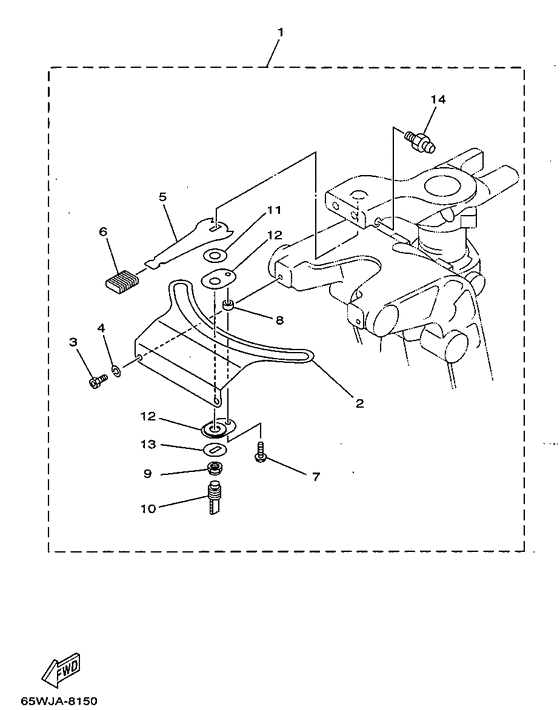

Steering 2 Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 1999
- Model
- F20A
- Model code
- 65W
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-42508-00-00 Steering Friction Assy |
65W-42508-00-00 |
US $230.73 |
||
|
02
|
02
65W-42527-00-00 Plate, Friction |
65W-42527-00-00 |
from US $68.67 |
||
|
03
|
03
90109-06M50-00 Bolt |
90109-06M50-00 |
from US $4.39 |
||
|
04
|
04
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
04
|
04
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
05
|
05
65W-42561-00-00 Knob, Steering Lock |
65W-42561-00-00 |
from US $7.37 |
||
|
06
|
06
689-43633-00-00 Cover, Tilt Lever |
689-43633-00-00 |
US $4.11 |
||
|
07
|
07
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
08
|
08
90387-05M11-00 Collar |
90387-05M11-00 |
US $6.43 |
||
| replacement | |||||
|
08
|
08
903-87050-54-00 Collar |
903-87050-54-00 |
from US $6.80 |
||
|
09
|
09
90185-10M14-00 Nut, Self-Locking |
90185-10M14-00 |
from US $14.59 |
||
|
10
|
10
65W-42562-00-00 Shaft, Steering Lock |
65W-42562-00-00 |
from US $13.46 |
||
|
11
|
11
90202-10M56-00 Washer, Plate |
90202-10M56-00 |
from US $1.70 |
||
|
12
|
12
65W-42528-00-00 Plate, Friction |
65W-42528-00-00 |
from US $22.39 |
||
|
13
|
13
90209-10M26-00 Washer |
90209-10M26-00 |
from US $1.84 |
||
|
14
|
14
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
