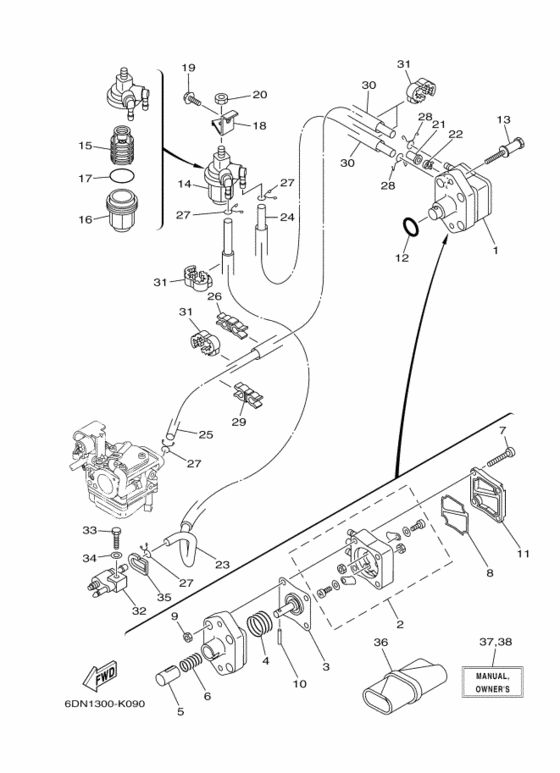

Fuel Diagram Yamaha F20 ETL
- Year
- 2011
- Model
- F20D
- Model code
- 6DN1
- Year
- 2011
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Finland (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62Y-24410-04-00 Fuel Pump Assy |
62Y-24410-04-00 |
from US $127.17 |
||
|
2
|
2
62Y-24415-01-00 Body 4 |
62Y-24415-01-00 |
from US $51.47 |
||
|
3
|
3
62Y-24411-02-00 Diaphragm |
62Y-24411-02-00 |
from US $78.30 |
||
|
4
|
4
62Y-24423-00-00 Spring, Diaphragm |
62Y-24423-00-00 |
from US $7.08 |
||
|
5
|
5
62Y-13131-01-00 Plunger |
62Y-13131-01-00 |
from US $83.59 |
||
|
6
|
6
62Y-24454-00-00 Spring |
62Y-24454-00-00 |
from US $6.94 |
||
|
7
|
7
62Y-24444-01-00 Screw |
62Y-24444-01-00 |
US $4.39 |
||
| replacement | |||||
|
7
|
7
62Y-24444-09-00 Screw |
62Y-24444-09-00 |
from US $3.37 |
||
|
8
|
8
6C5-24471-00-00 Diaphragm |
6C5-24471-00-00 |
US $20.26 |
||
|
9
|
9
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
62Y-24374-01-00 Pin |
62Y-24374-01-00 |
from US $6.80 |
||
|
11
|
11
6C5-24414-00-00 Body 3 |
6C5-24414-00-00 |
from US $10.48 |
||
|
12
|
12
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
12
|
12
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
12
|
12
93210-24800-00 O-Ring |
93210-24800-00 |
from US $2.29 |
||
|
13
|
13
90109-06266-00 Bolt |
90109-06266-00 |
from US $10.06 |
||
|
14
|
14
61N-24560-00-00 Filter Assy |
61N-24560-00-00 |
US $41.86 |
||
| replacement | |||||
|
14
|
14
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $25.92 |
||
|
15
|
15
61N-24563-00-00 Element, Filter |
61N-24563-00-00 |
from US $7.49 |
||
| replacement | |||||
|
15
|
15
61N-24563-10-00 Element, Filter |
61N-24563-10-00 |
from US $7.49 |
||
|
16
|
16
61N-24521-00-00 Cup, Filter |
61N-24521-00-00 |
from US $13.46 |
||
|
17
|
17
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.39 |
||
|
18
|
18
6D5-24566-00-00 Bracket, Filter |
6D5-24566-00-00 |
from US $7.79 |
||
|
19
|
19
95895-08016-00 Bolt, Flange |
95895-08016-00 |
US $1.28 |
||
|
20
|
20
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
20
|
20
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
20
|
20
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
21
|
21
6BL-24481-00-00 Plug |
6BL-24481-00-00 |
from US $7.23 |
||
|
22
|
22
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
22
|
22
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
22
|
22
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
23
|
23
6BL-24311-00-00 Pipe, Fuel 1 |
6BL-24311-00-00 |
US $39.24 |
||
| replacement | |||||
|
23
|
23
6BL-24311-10-00 Pipe, Fuel 1 |
6BL-24311-10-00 |
from US $51.95 |
||
|
24
|
24
90445-10M20-00 Hose (L400) |
90445-10M20-00 |
US $6.38 |
||
| replacement | |||||
|
24
|
24
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.94 |
||
|
25
|
25
90445-10MG7-00 Hose (L350) |
90445-10MG7-00 |
from US $8.08 |
||
| replacement | |||||
|
25
|
25
904-45100-53-00 Hose (L350) |
904-45100-53-00 |
US $21.17 |
||
|
26
|
26
90464-10M59-00 Clamp |
90464-10M59-00 |
from US $3.33 |
||
|
27
|
27
90467-09M17-00 Clip |
90467-09M17-00 |
US $1.84 |
||
| replacement | |||||
|
27
|
27
90467-09M09-00 Clip(6K8) |
90467-09M09-00 |
from US $1.71 |
||
|
28
|
28
90467-10M04-00 Clip |
90467-10M04-00 |
from US $2.91 |
||
|
29
|
29
90464-11009-00 Clamp |
90464-11009-00 |
from US $3.54 |
||
|
30
|
30
90446-15003-00 Hose (L100) |
90446-15003-00 |
from US $1.98 |
||
|
31
|
31
90464-13227-00 Clamp |
90464-13227-00 |
from US $1.81 |
||
|
32
|
32
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
32
|
32
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
32
|
32
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
33
|
33
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
33
|
33
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
34
|
34
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
35
|
35
61N-24329-00-00 Seal |
61N-24329-00-00 |
US $3.26 |
||
| replacement | |||||
|
35
|
35
61N-24329-01-00 Seal |
61N-24329-01-00 |
from US $3.26 |
||
|
36
|
36
62Y-28100-00-00 Tool KitAP |
62Y-28100-00-00 |
US $37.17 |
||
|
37
|
37
6BP-28199-73-E0
Manual,owner's
UR (E) |
6BP-28199-73-E0 |
— | ||
|
37
|
37
6BP-28199-73-F0
Manual,owner's
UR (F) |
6BP-28199-73-F0 |
— | ||
|
37
|
37
6BP-28199-73-S0
Manual,owner's
UR (ES) |
6BP-28199-73-S0 |
— | ||
|
37
|
37
6BP-28199-73-G0
Manual,owner's
UR (D) |
6BP-28199-73-G0 |
— | ||
|
37
|
37
6BP-28199-73-D0
Manual,owner's
UR (NL) |
6BP-28199-73-D0 |
— | ||
|
37
|
37
6BP-28199-73-H0
Manual,owner's
UR (I) |
6BP-28199-73-H0 |
— | ||
|
38
|
38
6BP-28199-83-K0
Manual,owner's
UR (DK) |
6BP-28199-83-K0 |
— | ||
|
38
|
38
6BP-28199-83-R0
Manual,owner's
UR (GR) |
6BP-28199-83-R0 |
— | ||
|
38
|
38
6BP-28199-83-P0
Manual,owner's
UR (P) |
6BP-28199-83-P0 |
— | ||
|
38
|
38
6BP-28199-83-N0
Manual,owner's
UR (N) |
6BP-28199-83-N0 |
— | ||
|
38
|
38
6BP-28199-83-M0
Manual,owner's
UR (S) |
6BP-28199-83-M0 |
— | ||
|
38
|
38
6BP-28199-83-L0
Manual,owner's
UR (SF) |
6BP-28199-83-L0 |
— | ||
