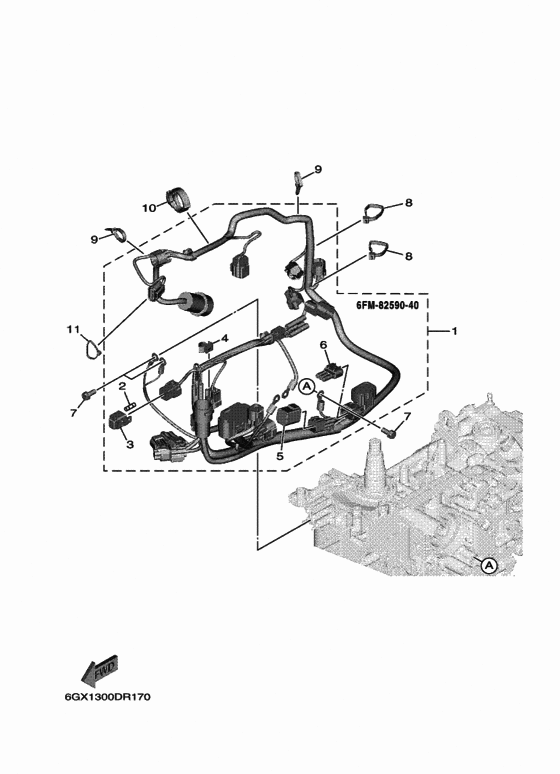

Electrical 4 Diagram Yamaha F20 ETL
- Year
- 2017
- Model
- F20F
- Model code
- 6GX1
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Finland (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6FM-82590-40-00 WIRE HARNESS ASSY |
6FM-82590-40-00 |
US $381.92 |
||
| replacements | |||||
|
1
|
1
6FM-82590-41-00 Wire Harness Assy |
6FM-82590-41-00 |
US $381.92 |
||
|
1
|
1
6FM-82590-43-00 Wire Harness Assy |
6FM-82590-43-00 |
US $499.46 |
||
|
2
|
2
67F-82151-00-00
Fuse (20A-Bl)
|
67F-82151-00-00 |
— | ||
| replacement | |||||
|
2
|
2
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.74 |
||
|
3
|
3
67F-8215B-10-00 Cap (Yellow) |
67F-8215B-10-00 |
from US $10.20 |
||
|
4
|
4
90464-09M47-00 Clamp |
90464-09M47-00 |
from US $2.41 |
||
|
5
|
5
6Y8-82582-11-00 Cap 1 (4Pin) |
6Y8-82582-11-00 |
from US $8.22 |
||
|
6
|
6
6FM-82582-00-00 CAP 1 (3P) |
6FM-82582-00-00 |
from US $7.93 |
||
|
7
|
7
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $3.05 |
||
| replacement | |||||
|
7
|
7
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
8
|
8
90465-11M52-00 Clamp |
90465-11M52-00 |
from US $1.70 |
||
|
9
|
9
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
10
|
10
90464-28003-00 Clamp |
90464-28003-00 |
from US $1.98 |
||
|
11
|
11
90465-11M59-00 Clamp |
90465-11M59-00 |
from US $2.08 |
||
