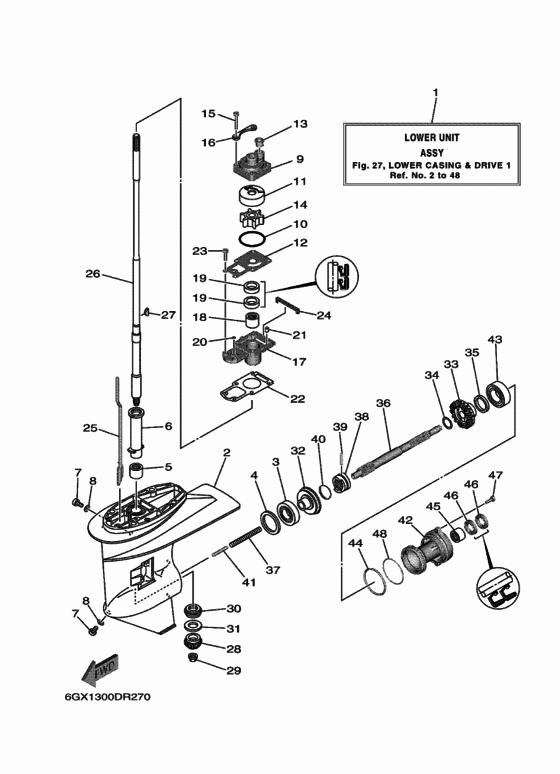

Lower casing & drive 1 Diagram Yamaha F20 ETL
- Year
- 2017
- Model
- F20F
- Model code
- 6GX1
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Finland (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6FM-45300-10-8D LOWER UNIT ASSYL(21.7") |
6FM-45300-10-8D |
US $1,795.20 |
||
| replacements | |||||
|
1
|
1
6FM-45300-11-8D Lower Unit AssyL(21.7") |
6FM-45300-11-8D |
US $1,795.20 |
||
|
1
|
1
6FM-45300-12-8D Lower Unit AssyL(21.7") |
6FM-45300-12-8D |
from US $1,447.55 |
||
|
2
|
2
6L2-45311-02-8D CASING, LOWER |
6L2-45311-02-8D |
from US $357.01 |
||
|
3
|
3
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.20 |
||
|
4
|
4
6L2-45567-00-00 Shim (T:1.0Mm)UR |
6L2-45567-00-00 |
from US $7.49 |
||
|
4
|
4
6L2-45567-10-00 Shim (T:1.1Mm)UR |
6L2-45567-10-00 |
from US $7.49 |
||
|
4
|
4
6L2-45567-20-00 Shim (T:1.2Mm)UR |
6L2-45567-20-00 |
from US $7.08 |
||
|
4
|
4
6L2-45567-30-00 Shim (T:1.3Mm)UR |
6L2-45567-30-00 |
from US $7.49 |
||
|
4
|
4
6L2-45567-40-00 Shim (T:1.4Mm)UR |
6L2-45567-40-00 |
from US $7.49 |
||
|
5
|
5
93315-220V9-00 Bearing |
93315-220V9-00 |
from US $45.18 |
||
|
6
|
6
6L2-45536-00-00 Sleeve, Drive Shaft |
6L2-45536-00-00 |
from US $19.13 |
||
|
7
|
7
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
8
|
8
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
9
|
9
6L2-44311-01-00 Housing, Water Pump |
6L2-44311-01-00 |
from US $14.82 |
||
|
10
|
10
93210-45161-00 O-Ring |
93210-45161-00 |
from US $2.70 |
||
|
11
|
11
6L2-44322-00-00 Insert, Cartridge |
6L2-44322-00-00 |
from US $8.08 |
||
|
12
|
12
6FM-44323-01-00 OUTER PLATE, CARTRID |
6FM-44323-01-00 |
from US $4.96 |
||
|
13
|
13
6L2-44367-10-00 Damper, Water Seal 3 |
6L2-44367-10-00 |
US $4.96 |
||
|
14
|
14
6L2-44352-00-00 Impeller |
6L2-44352-00-00 |
from US $25.96 |
||
|
15
|
15
97595-06540-00 Bolt, With Washer |
97595-06540-00 |
from US $1.07 |
||
|
16
|
16
6L2-44328-00-00 Plate |
6L2-44328-00-00 |
from US $3.97 |
||
|
17
|
17
6FM-45331-00-CA HOUSING, BEARING |
6FM-45331-00-CA |
from US $79.86 |
||
|
18
|
18
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
19
|
19
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $6.40 |
||
| replacement | |||||
|
19
|
19
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $4.38 |
||
|
20
|
20
93210-06ME6-00 O-Ring |
93210-06ME6-00 |
from US $2.36 |
||
|
21
|
21
93604-12M07-00 Pin, Dowel |
93604-12M07-00 |
US $1.94 |
||
| replacement | |||||
|
21
|
21
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
22
|
22
6L2-45315-A0-00 Packing, Lower Casing |
6L2-45315-A0-00 |
from US $2.36 |
||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
24
|
24
6L2-45375-00-00 Damper, Seal |
6L2-45375-00-00 |
from US $6.38 |
||
|
25
|
25
6FM-44150-10-00 SHIFT CAM ASSYL(21.7") |
6FM-44150-10-00 |
from US $59.69 |
||
|
26
|
26
6FM-45510-10-00 DRIVE SHAFT ASSYL(21.7") |
6FM-45510-10-00 |
from US $248.69 |
||
|
27
|
27
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $6.40 |
||
|
28
|
28
6L2-45551-01-00 Pinion (13T) |
6L2-45551-01-00 |
from US $73.92 |
||
|
29
|
29
90179-10M14-00 Nut |
90179-10M14-00 |
from US $9.35 |
||
|
30
|
30
93341-320U0-00 Bearing |
93341-320U0-00 |
from US $26.49 |
||
|
31
|
31
6L2-45587-00-00 Shim (T:1.5Mm)UR |
6L2-45587-00-00 |
from US $10.20 |
||
|
31
|
31
6L2-45587-10-00 Shim (T:1.6Mm)UR |
6L2-45587-10-00 |
from US $9.21 |
||
|
32
|
32
6FM-45560-00-00 GEAR |
6FM-45560-00-00 |
from US $187.90 |
||
|
33
|
33
6FM-45571-00-00 GEAR |
6FM-45571-00-00 |
from US $192.35 |
||
|
34
|
34
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
35
|
35
6L2-45577-00-00 Shim (T:1.0Mm)UR |
6L2-45577-00-00 |
from US $9.71 |
||
|
35
|
35
6L2-45577-10-00 Shim (T:1.1Mm)UR |
6L2-45577-10-00 |
from US $9.71 |
||
|
35
|
35
6L2-45577-20-00 Shim (T:1.2Mm)UR |
6L2-45577-20-00 |
from US $9.71 |
||
|
35
|
35
6L2-45577-30-00 Shim (T:1.3Mm)UR |
6L2-45577-30-00 |
from US $9.71 |
||
|
36
|
36
65W-45611-00-00 Shaft, Propeller |
65W-45611-00-00 |
from US $251.45 |
||
|
37
|
37
905-01100-65-00 Spring, Compression |
905-01100-65-00 |
from US $3.04 |
||
|
38
|
38
6FM-45631-00-00 CLUTCH, DOG |
6FM-45631-00-00 |
from US $43.10 |
||
|
39
|
39
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
40
|
40
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
41
|
41
648-45635-00-00 Plunger, Shift |
648-45635-00-00 |
from US $4.04 |
||
|
42
|
42
6L2-45361-03-8D Cap, Lower Casing |
6L2-45361-03-8D |
from US $98.37 |
||
|
43
|
43
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $22.75 |
||
|
44
|
44
93210-60MA3-00 O-Ring |
93210-60MA3-00 |
from US $6.09 |
||
|
45
|
45
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
46
|
46
931-0120M-07-00 Oil Seal |
931-0120M-07-00 |
from US $5.74 |
||
|
47
|
47
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
47
|
47
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
47
|
47
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
48
|
48
93210-60M99-00 O-Ring |
93210-60M99-00 |
from US $4.39 |
||
