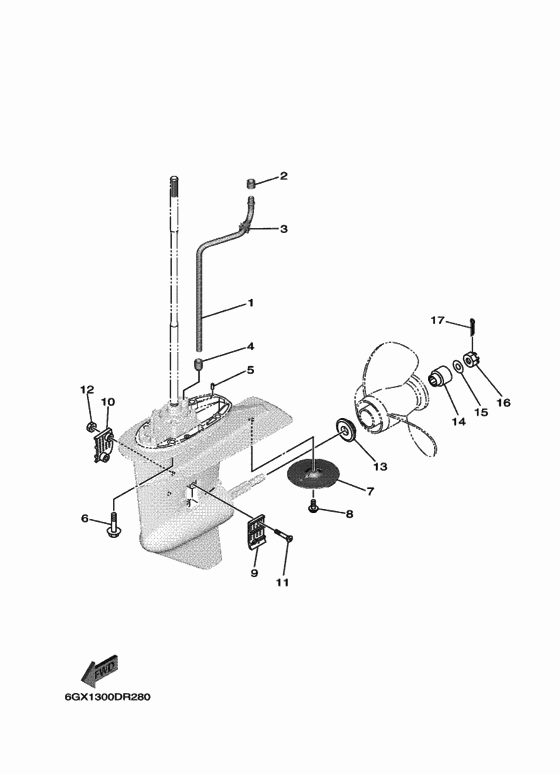

Lower casing & drive 2 Diagram Yamaha F20 ETL
- Year
- 2017
- Model
- F20F
- Model code
- 6GX1
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Finland (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6FM-44361-10-00 TUBE, WATER 1L(21.7") |
6FM-44361-10-00 |
from US $20.69 |
||
|
2
|
2
682-44365-00-00 Damper, Water Seal 1 |
682-44365-00-00 |
US $3.54 |
||
|
3
|
3
6AH-44365-00-00 Damper, Water Seal 1 |
6AH-44365-00-00 |
US $2.83 |
||
|
4
|
4
6L2-44368-00-00 Rubber, Water Seal 4 |
6L2-44368-00-00 |
US $2.55 |
||
|
5
|
5
93604-12M07-00 Pin, Dowel |
93604-12M07-00 |
US $1.94 |
||
| replacement | |||||
|
5
|
5
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
6
|
6
90105-10M12-00 Bolt, Flange |
90105-10M12-00 |
from US $7.65 |
||
|
7
|
7
664-45371-01-00 Tab-Trim |
664-45371-01-00 |
from US $24.30 |
||
|
8
|
8
90105-08M02-00 Bolt, Flange |
90105-08M02-00 |
from US $4.96 |
||
|
9
|
9
6L2-45214-00-00 Cover, Water Inlet 1 |
6L2-45214-00-00 |
from US $7.23 |
||
|
10
|
10
6L2-45215-00-00 Cover, Water Inlet 2 |
6L2-45215-00-00 |
from US $7.23 |
||
|
11
|
11
90151-05M05-00 Screw, Countersunk |
90151-05M05-00 |
from US $1.70 |
||
|
12
|
12
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
12
|
12
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
13
|
13
6L2-45987-01-00 Spacer 1 |
6L2-45987-01-00 |
from US $31.91 |
||
|
14
|
14
689-45997-00-00 Spacer 2 |
689-45997-00-00 |
from US $16.16 |
||
|
15
|
15
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.66 |
||
|
16
|
16
90171-14013-00 Nut, Castle |
90171-14013-00 |
from US $9.72 |
||
|
17
|
17
91490-30022-00 Pin, Cotter |
91490-30022-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
