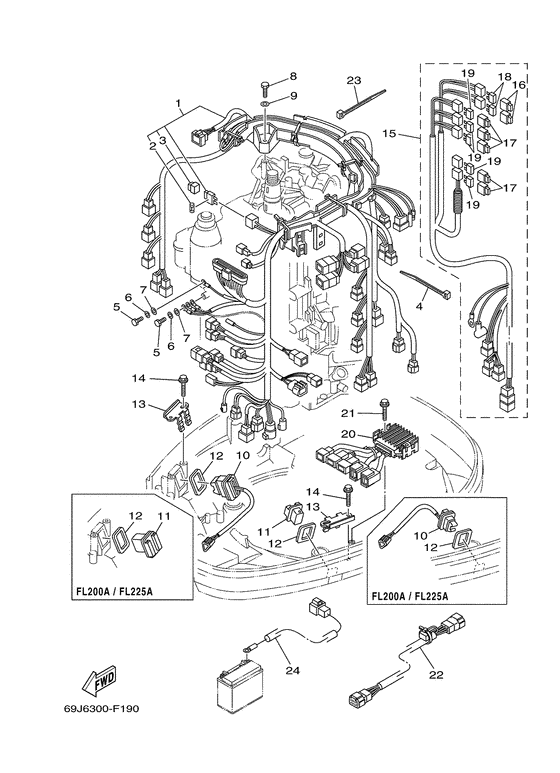

Electrical 3 Diagram Yamaha F225 ETX
- Year
- 2007
- Model
- F225A
- Model code
- 69J
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Europe (General) (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
69J-82590-60-00 Wire Harness Assy |
69J-82590-60-00 |
US $826.32 |
||
|
02
|
02
67F-82151-20-00 Fuse (5A) |
67F-82151-20-00 |
from US $2.98 |
||
|
03
|
03
69J-8215B-00-00 Cap (Brown) |
69J-8215B-00-00 |
from US $10.48 |
||
|
04
|
04
90465-14M66-00 Clamp |
90465-14M66-00 |
from US $3.54 |
||
|
05
|
05
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
05
|
05
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
07
|
07
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
08
|
08
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
08
|
08
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $1.66 |
||
|
09
|
09
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
09
|
09
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
69J-82563-00-00
Trim & Tilt Switch Assy
|
69J-82563-00-00 |
— | ||
| replacement | |||||
|
10
|
10
69J-82563-01-00 Trim & Tilt Switch Assy |
69J-82563-01-00 |
from US $69.10 |
||
|
11
|
11
69J-42723-00-8D
Cover, Bottom
|
69J-42723-00-8D |
— | ||
| replacement | |||||
|
11
|
11
69J-42723-01-00 Cover, Bottom |
69J-42723-01-00 |
from US $30.46 |
||
|
12
|
12
69J-82587-00-00 Gasket |
69J-82587-00-00 |
US $5.38 |
||
|
13
|
13
69J-83614-10-00 Bracket |
69J-83614-10-00 |
from US $12.61 |
||
|
14
|
14
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
15
|
15
69J-8259N-11-00 Wire Harness Assy 3 |
69J-8259N-11-00 |
from US $440.57 |
||
|
16
|
16
67F-8215B-10-00 Cap (Yellow) |
67F-8215B-10-00 |
from US $10.20 |
||
|
17
|
17
67F-8215B-20-00 Cap (Green) |
67F-8215B-20-00 |
from US $10.20 |
||
|
18
|
18
67F-82151-00-00
Fuse (20A-Bl)
|
67F-82151-00-00 |
— | ||
| replacement | |||||
|
18
|
18
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.54 |
||
|
19
|
19
67F-82151-10-00
Fuse (30A-Bl)
|
67F-82151-10-00 |
— | ||
| replacement | |||||
|
19
|
19
5JJ-82151-60-00 Fuse (30A-Bl) |
5JJ-82151-60-00 |
from US $2.83 |
||
|
20
|
20
69J-83306-01-00 Drive Unit Assy |
69J-83306-01-00 |
from US $550.44 |
||
|
21
|
21
90109-06M82-00 Bolt |
90109-06M82-00 |
from US $2 |
||
|
22
|
22
69J-81315-00-00 Lead Wire Assy |
69J-81315-00-00 |
from US $82.80 |
||
|
23
|
23
90465-14M66-00 Clamp |
90465-14M66-00 |
from US $3.54 |
||
|
24
|
24
69J-81949-01-00 Wire, Lead (Isolator Cable)Ap |
69J-81949-01-00 |
US $88.15 |
||
| replacements | |||||
|
24
|
24
69J-81949-02-00 Wire, Lead (Isolator, 3.8M )Ap |
69J-81949-02-00 |
US $88.15 |
||
|
24
|
24
69J-81949-03-00 Wire, LeadAp |
69J-81949-03-00 |
from US $88.15 |
||
