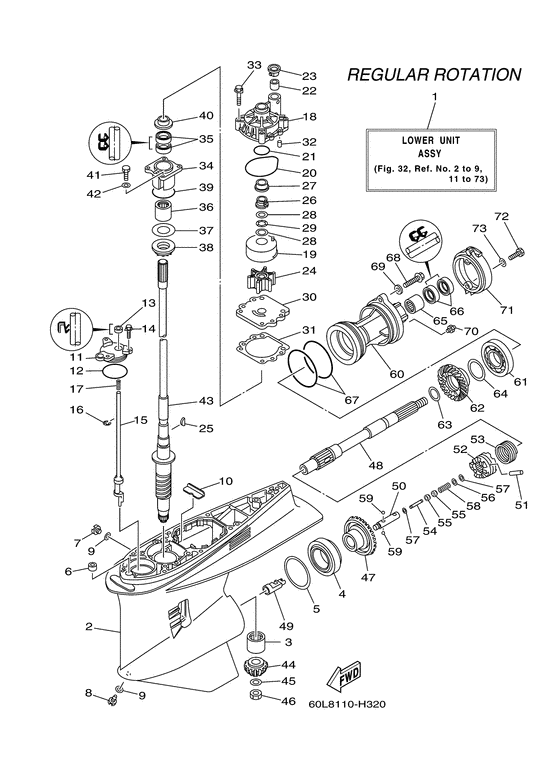

Lower casing & drive 1 Diagram Yamaha F225 ETX
- Year
- 2007
- Model
- F225A
- Model code
- 69J
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Europe (General) (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
69J-45300-22-8D
Lower Unit Assy
X(25.3"),rh |
69J-45300-22-8D |
— | ||
| replacements | |||||
|
01
|
01
69J-45300-23-8D Lower Unit Assy (X)X(25.3"),rh |
69J-45300-23-8D |
US $4,870.80 |
||
|
01
|
01
99999-04542-00 Lower Unit AssyX(25.3"),rh |
99999-04542-00 |
US $5,803.38 |
||
|
02
|
02
61A-45301-10-8D Casing, Lower |
61A-45301-10-8D |
from US $1,740.86 |
||
|
03
|
03
933-11832-80-00 Bearing |
933-11832-80-00 |
from US $161.68 |
||
|
04
|
04
93332-000W1-00 Bearing |
93332-000W1-00 |
from US $108.18 |
||
|
05
|
05
61A-45567-00-00 Shim (T:0.10Mm)Ur |
61A-45567-00-00 |
from US $2.32 |
||
|
05
|
05
61A-45567-10-00 Shim (T:0.12Mm)Ur |
61A-45567-10-00 |
from US $2.32 |
||
|
05
|
05
61A-45567-20-00 Shim (T:0.15Mm)Ur |
61A-45567-20-00 |
from US $2.32 |
||
|
05
|
05
61A-45567-30-00 Shim (T:0.18Mm)Ur |
61A-45567-30-00 |
from US $2 |
||
|
05
|
05
61A-45567-40-00 Shim (T:0.30Mm)Ur |
61A-45567-40-00 |
from US $2 |
||
|
05
|
05
61A-45567-50-00 Shim (T:0.40Mm)Ur |
61A-45567-50-00 |
from US $2.32 |
||
|
05
|
05
61A-45567-60-00 Shim (T:0.50Mm)Ur |
61A-45567-60-00 |
from US $2.32 |
||
|
06
|
06
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.83 |
||
|
07
|
07
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
08
|
08
688-45341-10-00 Plug, Drain |
688-45341-10-00 |
from US $7.37 |
||
|
09
|
09
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
09
|
09
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
10
|
10
61A-45376-00-94 Guide, Seal Damper |
61A-45376-00-94 |
US $18.42 |
||
| replacement | |||||
|
10
|
10
61A-45376-00-00 Guide, Seal Damper |
61A-45376-00-00 |
from US $18.42 |
||
|
11
|
11
61A-45321-01-00 Plate |
61A-45321-01-00 |
from US $8.60 |
||
|
12
|
12
932-10644-88-00
O-Ring
|
932-10644-88-00 |
— | ||
| replacement | |||||
|
12
|
12
93210-65752-00 O-Ring |
93210-65752-00 |
from US $11.92 |
||
|
13
|
13
931-06090-14-00 Oil Seal |
931-06090-14-00 |
from US $2.98 |
||
|
14
|
14
90119-06M10-00 Bolt, With Washer |
90119-06M10-00 |
US $4.68 |
||
|
15
|
15
69J-44150-00-00 Shift Cam Assy |
69J-44150-00-00 |
from US $323.29 |
||
|
16
|
16
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
17
|
17
90501-11M10-00 Spring, Compression |
90501-11M10-00 |
from US $1.34 |
||
|
18
|
18
61A-44311-01-00 Housing, Water Pump |
61A-44311-01-00 |
from US $27.44 |
||
|
19
|
19
61A-44322-02-00 Insert, Cartridge |
61A-44322-02-00 |
from US $54.85 |
||
|
20
|
20
93210-86M38-00 O-Ring |
93210-86M38-00 |
from US $7.28 |
||
|
21
|
21
932-10371-60-00
O-Ring
|
932-10371-60-00 |
— | ||
| replacement | |||||
|
21
|
21
93210-37M67-00 O-Ring (6G8) |
93210-37M67-00 |
from US $2.55 |
||
|
22
|
22
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
22
|
22
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.66 |
||
|
23
|
23
6E5-44312-00-00 Cover, Water Pump Housing |
6E5-44312-00-00 |
from US $2.32 |
||
|
24
|
24
6E5-44352-01-00 Impeller |
6E5-44352-01-00 |
from US $41.62 |
||
|
25
|
25
90280-04M05-00 Key, Woodruff |
90280-04M05-00 |
from US $10.26 |
||
|
26
|
26
61A-45538-00-00 Spacer 1 |
61A-45538-00-00 |
from US $2.13 |
||
|
27
|
27
61A-45527-00-00 Collar, Drive Shaft |
61A-45527-00-00 |
from US $7.28 |
||
|
28
|
28
90201-22M01-00 Washer, Plate |
90201-22M01-00 |
from US $1.98 |
||
|
29
|
29
90206-22M19-00 Washer, Wave |
90206-22M19-00 |
from US $3.83 |
||
|
30
|
30
6G5-44323-00-00
Outer Plate, Cartridge
|
6G5-44323-00-00 |
— | ||
| replacement | |||||
|
30
|
30
6G5-44323-01-00 Outer Plate, Cartridge |
6G5-44323-01-00 |
from US $16.43 |
||
|
31
|
31
6E5-44315-A0-00 Gasket, Water Pump |
6E5-44315-A0-00 |
from US $5.10 |
||
|
32
|
32
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
33
|
33
90119-08M14-00 Bolt, With Washer |
90119-08M14-00 |
from US $2.98 |
||
|
34
|
34
61A-45331-00-94 Housing, Bearing |
61A-45331-00-94 |
US $98.37 |
||
| replacement | |||||
|
34
|
34
61A-45331-00-9S Housing, Bearing |
61A-45331-00-9S |
from US $98.37 |
||
|
35
|
35
931-0128M-16-00 Oil Seal |
931-0128M-16-00 |
from US $6.96 |
||
|
36
|
36
93317-330U2-00 Bearing |
93317-330U2-00 |
from US $24.65 |
||
| replacement | |||||
|
36
|
36
93315-430V5-00 Bearing |
93315-430V5-00 |
from US $19.18 |
||
|
37
|
37
61A-45587-00-00 Shim (T:0.10Mm)Ur |
61A-45587-00-00 |
from US $2.98 |
||
|
37
|
37
61A-45587-10-00 Shim (T:0.12Mm)Ur |
61A-45587-10-00 |
from US $2.32 |
||
|
37
|
37
61A-45587-20-00 Shim (T:0.15Mm)Ur |
61A-45587-20-00 |
from US $2.98 |
||
|
37
|
37
61A-45587-30-00 Shim (T:0.18Mm)Ur |
61A-45587-30-00 |
from US $2.32 |
||
|
37
|
37
61A-45587-40-00 Shim (T:0.30Mm)Ur |
61A-45587-40-00 |
from US $3.64 |
||
|
37
|
37
61A-45587-50-00 Shim (T:0.40Mm)Ur |
61A-45587-50-00 |
from US $3.98 |
||
|
37
|
37
61A-45587-60-00 Shim (T:0.50Mm)Ur |
61A-45587-60-00 |
from US $2 |
||
|
38
|
38
93341-930U9-00 Bearing |
93341-930U9-00 |
US $67.42 |
||
| replacement | |||||
|
38
|
38
933-41930-20-00 Bearing |
933-41930-20-00 |
from US $67.42 |
||
|
39
|
39
932-1055M-14-00
O-Ring
|
932-1055M-14-00 |
— | ||
| replacement | |||||
|
39
|
39
932-10545-34-00 O-Ring |
932-10545-34-00 |
from US $2.55 |
||
|
40
|
40
6E5-45344-00-00 Cover, Oil Seal |
6E5-45344-00-00 |
from US $6.96 |
||
|
41
|
41
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
| replacement | |||||
|
41
|
41
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
42
|
42
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
42
|
42
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
43
|
43
69J-45501-00-00 Drive Shaft CompX(25.3") |
69J-45501-00-00 |
from US $788.16 |
||
|
44
|
44
6P2-45551-01-00 Pinion (15T) |
6P2-45551-01-00 |
US $160.27 |
||
| replacement | |||||
|
44
|
44
6P2-45551-02-00 Pinion |
6P2-45551-02-00 |
from US $160.27 |
||
|
45
|
45
902-0116M-00-00 Washer, Plate |
902-0116M-00-00 |
from US $1.70 |
||
|
46
|
46
90170-16M19-00 Nut |
90170-16M19-00 |
from US $9.35 |
||
|
47
|
47
6P2-45560-00-00 Gear 1 (30T) |
6P2-45560-00-00 |
US $358.73 |
||
| replacements | |||||
|
47
|
47
6P2-45560-01-00
Gear 1 (30T)
|
6P2-45560-01-00 |
— | ||
|
47
|
47
6FJ-45550-00-00 GEAR SET |
6FJ-45550-00-00 |
from US $358.73 |
||
|
48
|
48
69J-45611-00-00 Shaft, Propeller |
69J-45611-00-00 |
from US $295.66 |
||
|
49
|
49
61A-45641-02-00 Shifter |
61A-45641-02-00 |
from US $95.47 |
||
|
50
|
50
61A-45634-01-00 Slide, Shift |
61A-45634-01-00 |
from US $221.54 |
||
|
51
|
51
61A-45632-00-00 Pin, Cross |
61A-45632-00-00 |
from US $10.63 |
||
|
52
|
52
69J-45631-00-00 Clutch, Dog |
69J-45631-00-00 |
from US $168.56 |
||
|
53
|
53
61A-45633-00-00 Ring, Cross Pin |
61A-45633-00-00 |
from US $2 |
||
|
54
|
54
6H1-45668-00-00 Shaft, Free 1 |
6H1-45668-00-00 |
from US $2.66 |
||
|
55
|
55
61A-45635-00-00 Plunger, Shift |
61A-45635-00-00 |
from US $8.60 |
||
|
56
|
56
90201-02M00-00 Washer, Plate |
90201-02M00-00 |
from US $2.69 |
||
|
57
|
57
90183-02M03-00 Nut, Spring |
90183-02M03-00 |
from US $1.34 |
||
|
58
|
58
90501-10M77-00 Spring, Compression |
90501-10M77-00 |
from US $2.98 |
||
|
59
|
59
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
59
|
59
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
60
|
60
69J-45332-00-94 Housing, Bearing |
69J-45332-00-94 |
US $215.53 |
||
| replacement | |||||
|
60
|
60
69J-45332-00-00 Housing, Bearing |
69J-45332-00-00 |
from US $215.53 |
||
|
61
|
61
933-06210-U0-00 Bearing |
933-06210-U0-00 |
from US $55.68 |
||
|
62
|
62
6P2-45571-00-00 Gear 2 (30T) |
6P2-45571-00-00 |
from US $237.64 |
||
|
63
|
63
90201-31M00-00 Washer, Plate |
90201-31M00-00 |
from US $2.98 |
||
|
64
|
64
61A-45577-00-00 Shim (T:0.10Mm)Ur |
61A-45577-00-00 |
from US $7.65 |
||
|
64
|
64
61A-45577-10-00 Shim (T:0.12Mm)Ur |
61A-45577-10-00 |
from US $7.65 |
||
|
64
|
64
61A-45577-20-00 Shim (T:0.15Mm)Ur |
61A-45577-20-00 |
from US $2.32 |
||
|
64
|
64
61A-45577-30-00 Shim (T:0.18Mm)Ur |
61A-45577-30-00 |
from US $7.65 |
||
|
64
|
64
61A-45577-40-00 Shim (T:0.30Mm)Ur |
61A-45577-40-00 |
from US $7.65 |
||
|
64
|
64
61A-45577-50-00 Shim (T:0.40Mm)Ur |
61A-45577-50-00 |
from US $2 |
||
|
64
|
64
61A-45577-60-00 Shim (T:0.50Mm)Ur |
61A-45577-60-00 |
from US $2 |
||
|
65
|
65
93315-43061-00 Bearing |
93315-43061-00 |
from US $29.10 |
||
|
66
|
66
931-0130M-17-00 Oil Seal |
931-0130M-17-00 |
from US $6.30 |
||
|
67
|
67
93211-04384-00 O-Ring (705) |
93211-04384-00 |
from US $4.30 |
||
|
68
|
68
90105-08036-00 Bolt, Flange |
90105-08036-00 |
US $9.63 |
||
| replacement | |||||
|
68
|
68
90105-08049-00 Bolt, Flange |
90105-08049-00 |
from US $8.94 |
||
|
69
|
69
90201-08023-00 Washer, Plate |
90201-08023-00 |
from US $15.22 |
||
|
70
|
70
93700-09M00-00 Nipple, Grease |
93700-09M00-00 |
from US $2.98 |
||
|
71
|
71
69J-45361-00-8D Cap, Lower Casing |
69J-45361-00-8D |
from US $143.69 |
||
|
72
|
72
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.54 |
||
|
73
|
73
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
73
|
73
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
