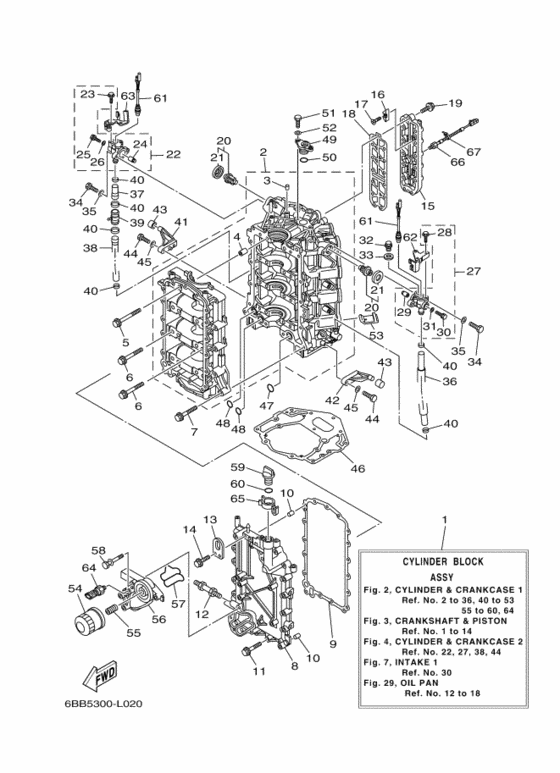

Cylinder & crankcase 1 Diagram Yamaha F225 ETL
- Year
- 2012
- Model
- F225C
- Model code
- 6BB
- Year
- 2012
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Europe (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6P2-W009B-06-9S
Cylinder Block Assy
6BB:1001488～1001537 |
6P2-W009B-06-9S |
— | ||
| replacement | |||||
|
1
|
1
6P2-W009B-10-9S
Cylinder Block Assy
6BB:1001488～1001537 |
6P2-W009B-10-9S |
— | ||
|
1
|
1
6P2-W009B-07-9S
Cylinder Block Assy
6BB:1001538～ |
6P2-W009B-07-9S |
— | ||
| replacement | |||||
|
1
|
1
6P2-W009B-10-9S
Cylinder Block Assy
6BB:1001538～ |
6P2-W009B-10-9S |
— | ||
|
2
|
2
6P2-15100-10-00 Crankcase Assy |
6P2-15100-10-00 |
US $4,818 |
||
| replacement | |||||
|
2
|
2
6P2-15100-11-00 Crankcase Assy |
6P2-15100-11-00 |
US $6,867.18 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
4
|
4
918-14180-02-00 Pin, Dowel |
918-14180-02-00 |
from US $3.12 |
||
|
5
|
5
6P2-15187-00-00 Bolt |
6P2-15187-00-00 |
from US $5.24 |
||
|
6
|
6
6P2-15481-00-00 Bolt 1 |
6P2-15481-00-00 |
from US $5.95 |
||
|
7
|
7
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
from US $5.22 |
||
|
8
|
8
6P2-15411-01-9S Cover, Crankcase 1 |
6P2-15411-01-9S |
from US $405.11 |
||
|
9
|
9
69J-15451-00-00 Gasket, Crankcase Cover 1 |
69J-15451-00-00 |
US $55.26 |
||
|
10
|
10
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
11
|
11
90119-08009-00 Bolt, With Washer |
90119-08009-00 |
from US $3.54 |
||
|
12
|
12
90116-10027-00 Bolt, Stud |
90116-10027-00 |
from US $29.61 |
||
|
13
|
13
69J-11119-00-00 Hanger, Engine |
69J-11119-00-00 |
from US $15.02 |
||
|
14
|
14
90105-06M09-00 Bolt, Flange |
90105-06M09-00 |
US $2.69 |
||
|
15
|
15
6P2-1131C-00-9S Cover, Joint |
6P2-1131C-00-9S |
from US $77.51 |
||
|
16
|
16
6E5-11325-00-00 Anode |
6E5-11325-00-00 |
from US $4.96 |
||
|
17
|
17
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.34 |
||
|
18
|
18
6P2-1131B-00-00 Gasket, Cover |
6P2-1131B-00-00 |
from US $16.29 |
||
|
19
|
19
90119-06MA4-00 Bolt, With Washer |
90119-06MA4-00 |
from US $1.34 |
||
|
20
|
20
67F-12411-01-00 Thermostat |
67F-12411-01-00 |
from US $54.88 |
||
|
21
|
21
67F-12412-00-00 Seal, Thermostat |
67F-12412-00-00 |
from US $4.68 |
||
|
22
|
22
6P2-1240H-00-9S Anode Assy |
6P2-1240H-00-9S |
from US $59.41 |
||
|
23
|
23
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.13 |
||
|
24
|
24
6P3-11325-00-00 Anode |
6P3-11325-00-00 |
from US $7.93 |
||
|
25
|
25
90105-05012-00 Bolt, Flange |
90105-05012-00 |
US $3.54 |
||
| replacement | |||||
|
25
|
25
901-43050-06-00 BOLT, WITH WASHER |
901-43050-06-00 |
from US $3.54 |
||
|
26
|
26
90430-05002-00 Gasket |
90430-05002-00 |
from US $1.84 |
||
|
27
|
27
6P3-1240H-00-9S Anode Assy |
6P3-1240H-00-9S |
from US $54.78 |
||
|
28
|
28
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.13 |
||
|
29
|
29
6P3-11325-00-00 Anode |
6P3-11325-00-00 |
from US $7.93 |
||
|
30
|
30
90105-05012-00 Bolt, Flange |
90105-05012-00 |
US $3.54 |
||
| replacement | |||||
|
30
|
30
901-43050-06-00 BOLT, WITH WASHER |
901-43050-06-00 |
from US $3.54 |
||
|
31
|
31
90430-05002-00 Gasket |
90430-05002-00 |
from US $1.84 |
||
|
32
|
32
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.09 |
||
|
33
|
33
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
34
|
34
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
34
|
34
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
35
|
35
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
35
|
35
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
36
|
36
6P2-1243A-00-00 Hose 1 |
6P2-1243A-00-00 |
from US $20.12 |
||
|
37
|
37
6P2-1243E-00-00 Hose 2 |
6P2-1243E-00-00 |
from US $9.21 |
||
|
38
|
38
6P2-1243F-00-00 Hose,3 |
6P2-1243F-00-00 |
from US $19.27 |
||
|
39
|
39
6CE-24378-00-00 Pipe, Joint 3 |
6CE-24378-00-00 |
from US $7.23 |
||
|
40
|
40
90465-11M59-00 Clamp |
90465-11M59-00 |
from US $1.98 |
||
|
41
|
41
67F-42761-01-00 Stopper |
67F-42761-01-00 |
from US $21.11 |
||
|
42
|
42
6P2-42761-00-00 Stopper |
6P2-42761-00-00 |
from US $26.78 |
||
|
43
|
43
68F-44533-01-00 Damper, Upper Mount Rubber |
68F-44533-01-00 |
US $4.39 |
||
| replacement | |||||
|
43
|
43
68F-44533-02-00 Damper Upper Mount Rubber |
68F-44533-02-00 |
from US $4.39 |
||
|
44
|
44
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
44
|
44
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
45
|
45
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
45
|
45
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
46
|
46
69J-11351-11-00
Gasket, Cylinder
|
69J-11351-11-00 |
— | ||
| replacement | |||||
|
46
|
46
69J-11351-12-00 GASKET, CYLINDER |
69J-11351-12-00 |
from US $58.52 |
||
|
47
|
47
93210-25552-00 O-Ring |
93210-25552-00 |
from US $4.30 |
||
|
48
|
48
93210-19MJ1-00 O-Ring |
93210-19MJ1-00 |
from US $1.84 |
||
|
49
|
49
69J-11313-00-00 Plug, Blind |
69J-11313-00-00 |
from US $32.16 |
||
|
50
|
50
93210-25647-00 O-Ring |
93210-25647-00 |
from US $2 |
||
|
51
|
51
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
51
|
51
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
52
|
52
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
52
|
52
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
53
|
53
69J-14664-00-00 Grommet, Water Shut |
69J-14664-00-00 |
from US $13.20 |
||
|
54
|
54
69J-13440-01-00 Element Assy, Oil Cleaner |
69J-13440-01-00 |
US $31.45 |
||
| replacement | |||||
|
54
|
54
69J-13440-05-00 ELEMENT ASSY OIL CLEANER |
69J-13440-05-00 |
from US $30.19 |
||
|
55
|
55
6S5-12858-00-00 Bolt, Union |
6S5-12858-00-00 |
from US $16.29 |
||
|
56
|
56
6P2-13446-00-9S Connector |
6P2-13446-00-9S |
from US $95.47 |
||
|
57
|
57
6P2-13477-00-00 Gasket |
6P2-13477-00-00 |
from US $7.23 |
||
|
58
|
58
90119-06025-00 Bolt, With Washer |
90119-06025-00 |
from US $2.69 |
||
|
59
|
59
6G8-15363-00-00 Plug, Oil |
6G8-15363-00-00 |
from US $4.64 |
||
|
60
|
60
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
60
|
60
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.32 |
||
|
60
|
60
93210-24800-00 O-Ring |
93210-24800-00 |
from US $1.28 |
||
|
61
|
61
6P2-82560-01-00 Thermo Switch Assy |
6P2-82560-01-00 |
from US $44.07 |
||
|
62
|
62
6P2-82588-00-00 Plate |
6P2-82588-00-00 |
US $10.20 |
||
| replacement | |||||
|
62
|
62
6P2-82588-01-00 Plate |
6P2-82588-01-00 |
from US $10.20 |
||
|
63
|
63
6P2-82389-00-00 Plate 2 |
6P2-82389-00-00 |
from US $77.92 |
||
|
64
|
64
6AW-83651-00-00 Sender, Oil Pressure |
6AW-83651-00-00 |
US $225.20 |
||
| replacement | |||||
|
64
|
64
6AW-83651-01-00 Sender, Oil Pressure |
6AW-83651-01-00 |
from US $225.20 |
||
|
65
|
65
6P2-83597-00-00 Clamp |
6P2-83597-00-00 |
from US $20.40 |
||
|
66
|
66
6P2-85780-00-00 Sensor, Knock |
6P2-85780-00-00 |
US $210 |
||
|
67
|
67
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
67
|
67
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
67
|
67
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
