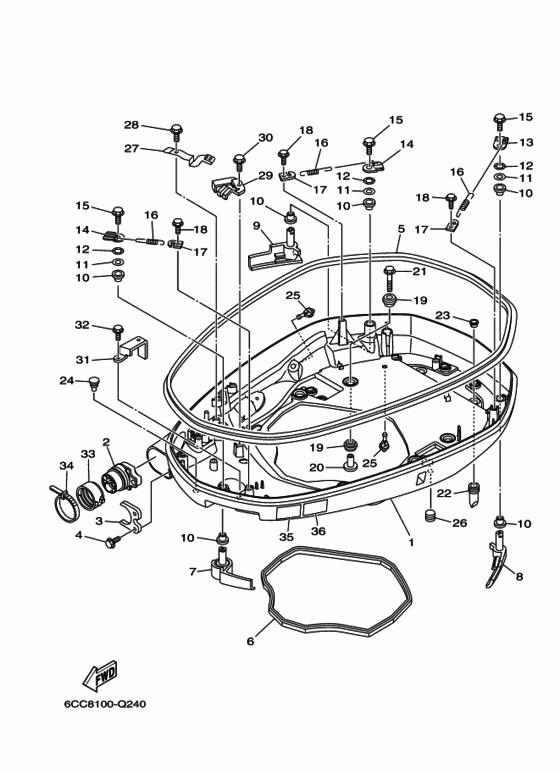

Bottom cowling 1 Diagram Yamaha F225 ETL
- Year
- 2016
- Model
- F225D/VF225A, (V-Max)
- Model code
- 6CC8
- Year
- 2016
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (050)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-42710-00-8D BOTTOM COWLING ASSY |
6CB-42710-00-8D |
from US $1,263.24 |
||
|
2
|
2
6DA-42725-00-00 Grommet |
6DA-42725-00-00 |
US $23.94 |
||
| replacement | |||||
|
2
|
2
6DA-42725-03-00 GROMMET |
6DA-42725-03-00 |
from US $23.94 |
||
|
3
|
3
6CB-42761-00-00 Stopper |
6CB-42761-00-00 |
from US $16.86 |
||
|
4
|
4
95895-06014-00 Bolt, Flange |
95895-06014-00 |
US $1.56 |
||
| replacements | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
95D95-06014-00 Bolt, Flange Deep Re |
95D95-06014-00 |
from US $1.07 |
||
|
5
|
5
6CB-42615-00-00 Seal |
6CB-42615-00-00 |
US $86.07 |
||
| replacement | |||||
|
5
|
5
6CB-42615-01-00 Seal |
6CB-42615-01-00 |
from US $86.07 |
||
|
6
|
6
6CB-42716-00-00 Rubber, Seal 1 |
6CB-42716-00-00 |
US $61.62 |
||
|
7
|
7
6CB-42815-01-8D Lever, Clamp |
6CB-42815-01-8D |
US $51.67 |
||
| replacement | |||||
|
7
|
7
6CB-42815-02-8D Lever, Clamp 1 |
6CB-42815-02-8D |
from US $51.67 |
||
|
8
|
8
6CB-42816-01-8D Lever, Clamp |
6CB-42816-01-8D |
US $52.78 |
||
| replacement | |||||
|
8
|
8
6CB-42816-02-8D Lever, Clamp 2 |
6CB-42816-02-8D |
from US $52.78 |
||
|
9
|
9
6CB-42817-01-8D Lever, Clamp |
6CB-42817-01-8D |
US $52.78 |
||
| replacement | |||||
|
9
|
9
6CB-42817-02-8D Lever, Clamp 3 |
6CB-42817-02-8D |
from US $52.78 |
||
|
10
|
10
90386-15M73-00 Bush |
90386-15M73-00 |
from US $3.32 |
||
|
11
|
11
90201-156J2-00 Washer, Plate |
90201-156J2-00 |
from US $2.13 |
||
|
12
|
12
90206-15M18-00 Washer, Wave |
90206-15M18-00 |
from US $1.66 |
||
|
13
|
13
6CB-42818-00-00 Lever, Clamp |
6CB-42818-00-00 |
from US $28.48 |
||
|
14
|
14
6CB-42819-00-00 Lever, Clamp |
6CB-42819-00-00 |
from US $28.48 |
||
|
15
|
15
95895-08012-00 Bolt, Flange |
95895-08012-00 |
US $1.28 |
||
| replacement | |||||
|
15
|
15
95D95-08012-00 Bolt, Flange Deep Recess |
95D95-08012-00 |
from US $1.28 |
||
|
16
|
16
90506-22001-00 Spring, Tension |
90506-22001-00 |
from US $7.37 |
||
|
17
|
17
66T-43144-00-00 Hook, Spring |
66T-43144-00-00 |
from US $3.64 |
||
|
18
|
18
95895-06012-00 Bolt, Flange |
95895-06012-00 |
from US $1.28 |
||
|
19
|
19
90480-22M81-00 Grommet |
90480-22M81-00 |
from US $2.32 |
||
|
20
|
20
90387-08M37-00 Collar |
90387-08M37-00 |
from US $7.62 |
||
|
21
|
21
90119-08M22-00 Bolt, With Washer |
90119-08M22-00 |
from US $3.60 |
||
| replacement | |||||
|
21
|
21
901-19081-87-00 BOLT WITH WASHER |
901-19081-87-00 |
from US $5.64 |
||
|
22
|
22
6DA-42717-00-00 Rubber, Seal 2 |
6DA-42717-00-00 |
US $3.54 |
||
|
23
|
23
6DA-42384-00-00 Seal, Cap |
6DA-42384-00-00 |
from US $2.83 |
||
|
24
|
24
6H4-42748-00-00 Grommet |
6H4-42748-00-00 |
US $1.98 |
||
|
25
|
25
6P2-44391-00-00 Nipple, Hose |
6P2-44391-00-00 |
from US $2.98 |
||
|
26
|
26
90338-11007-00 Plug |
90338-11007-00 |
from US $3.83 |
||
|
27
|
27
6CB-42743-00-00 Bracket |
6CB-42743-00-00 |
from US $11.33 |
||
|
28
|
28
95895-06012-00 Bolt, Flange |
95895-06012-00 |
from US $1.28 |
||
|
29
|
29
6CB-42766-00-00 Bracket 2 |
6CB-42766-00-00 |
from US $13.32 |
||
|
30
|
30
95895-06012-00 Bolt, Flange |
95895-06012-00 |
from US $1.28 |
||
|
31
|
31
6CB-42756-00-00 Stay, Clamp |
6CB-42756-00-00 |
from US $14.31 |
||
|
32
|
32
95895-06012-00 Bolt, Flange |
95895-06012-00 |
from US $1.28 |
||
|
33
|
33
68F-42753-00-00 FastnerAP |
68F-42753-00-00 |
from US $10.20 |
||
|
34
|
34
90464-20258-00 ClampAP |
90464-20258-00 |
from US $1.56 |
||
|
35
|
35
6EE-42794-40-00 Label, Warning (General) |
6EE-42794-40-00 |
from US $10.20 |
||
|
36
|
36
6EE-42794-50-00 Label, Warning (General) |
6EE-42794-50-00 |
from US $10.20 |
||
