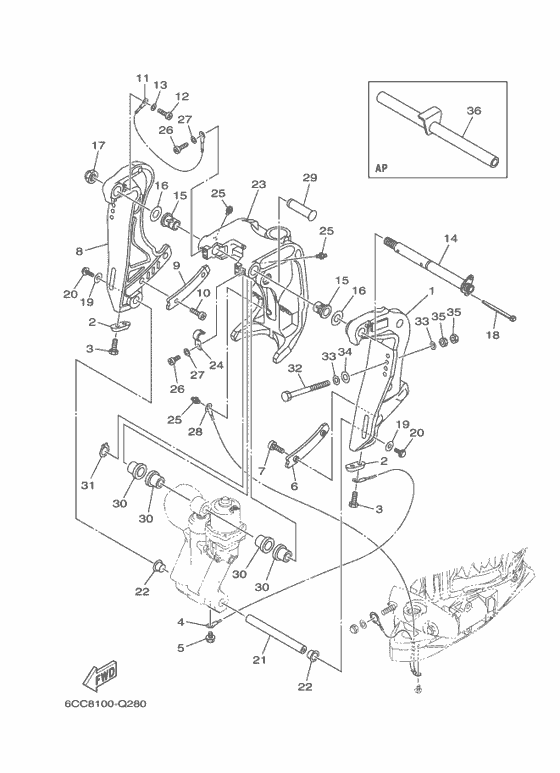

Bracket 1 Diagram Yamaha F225 ETL
- Year
- 2016
- Model
- F225D/VF225A, (V-Max)
- Model code
- 6CC8
- Year
- 2016
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (050)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-43111-02-8D Bracket, Clamp 1 |
6CB-43111-02-8D |
US $368.28 |
||
| replacement | |||||
|
1
|
1
6CB-43111-10-8D Bracket, Clamp 1 |
6CB-43111-10-8D |
from US $368.28 |
||
|
2
|
2
65W-45251-00-00 Anode |
65W-45251-00-00 |
from US $12.61 |
||
|
3
|
3
90101-06020-00 Bolt |
90101-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
4
|
4
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $5.64 |
||
|
5
|
5
97595-06510-00 Bolt, With Washer(61B) |
97595-06510-00 |
US $3.68 |
||
| replacements | |||||
|
5
|
5
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
5
|
5
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
6
|
6
61A-43132-00-00 Washer, Friction |
61A-43132-00-00 |
US $41.59 |
||
|
7
|
7
97885-06010-00 Screw, Pan Head |
97885-06010-00 |
US $1.98 |
||
| replacements | |||||
|
7
|
7
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
7
|
7
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.34 |
||
|
8
|
8
6CB-43112-01-8D Bracket, Clamp 2 |
6CB-43112-01-8D |
US $368.28 |
||
| replacement | |||||
|
8
|
8
6CB-43112-10-8D Bracket, Clamp 2 |
6CB-43112-10-8D |
from US $368.28 |
||
|
9
|
9
61A-43133-00-00 Washer,friction |
61A-43133-00-00 |
US $41.59 |
||
|
10
|
10
97885-06010-00 Screw, Pan Head |
97885-06010-00 |
US $1.98 |
||
| replacements | |||||
|
10
|
10
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
10
|
10
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.34 |
||
|
11
|
11
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $5.64 |
||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
64E-43131-30-00 Bolt, Clamp Bracket |
64E-43131-30-00 |
from US $105.14 |
||
|
15
|
15
90386-25M31-00 Bush |
90386-25M31-00 |
from US $3.64 |
||
|
16
|
16
90201-26M59-00 Washer, Plate |
90201-26M59-00 |
from US $2.66 |
||
|
17
|
17
90185-22M11-00 Nut, Self-Locking |
90185-22M11-00 |
US $33.44 |
||
| replacement | |||||
|
17
|
17
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
18
|
18
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
18
|
18
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
18
|
18
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
19
|
19
90201-10060-00 Washer, Plate |
90201-10060-00 |
from US $17.57 |
||
|
20
|
20
901-19100-54-00 Bolt, With Washer |
901-19100-54-00 |
from US $7.65 |
||
|
21
|
21
6BC-43818-00-00 Pin, Lower Shock Mount |
6BC-43818-00-00 |
from US $103.07 |
||
|
22
|
22
90386-22M98-00 Bush |
90386-22M98-00 |
from US $3.54 |
||
|
23
|
23
6CB-43311-00-8D Bracket, Swivel 1 |
6CB-43311-00-8D |
US $1,438.80 |
||
|
24
|
24
90465-08M63-00 Clamp |
90465-08M63-00 |
from US $6.52 |
||
|
25
|
25
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
26
|
26
98504-06010-00 Screw, Pan Head |
98504-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
26
|
26
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
27
|
27
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
66K-82149-00-00 Wire, Lead 3 |
66K-82149-00-00 |
from US $25.36 |
||
|
29
|
29
64E-43126-00-00 Pin, Upper Shock Mount |
64E-43126-00-00 |
from US $42.14 |
||
|
30
|
30
90386-22M98-00 Bush |
90386-22M98-00 |
from US $3.54 |
||
|
31
|
31
93410-22M11-00 Circlip |
93410-22M11-00 |
from US $3.68 |
||
|
32
|
32
901-01120-47-00 Bolt (L:150Mm) |
901-01120-47-00 |
US $18.42 |
||
| replacement | |||||
|
32
|
32
90101-12066-00 Bolt (L:150Mm) |
90101-12066-00 |
from US $18.42 |
||
|
33
|
33
90201-13M01-00 Washer, Plate |
90201-13M01-00 |
from US $3.24 |
||
|
34
|
34
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
35
|
35
95380-12600-00 Nut |
95380-12600-00 |
from US $4.96 |
||
|
36
|
36
6CB-43611-00-00 Shaft, Tilt LockAP |
6CB-43611-00-00 |
from US $344.25 |
||
