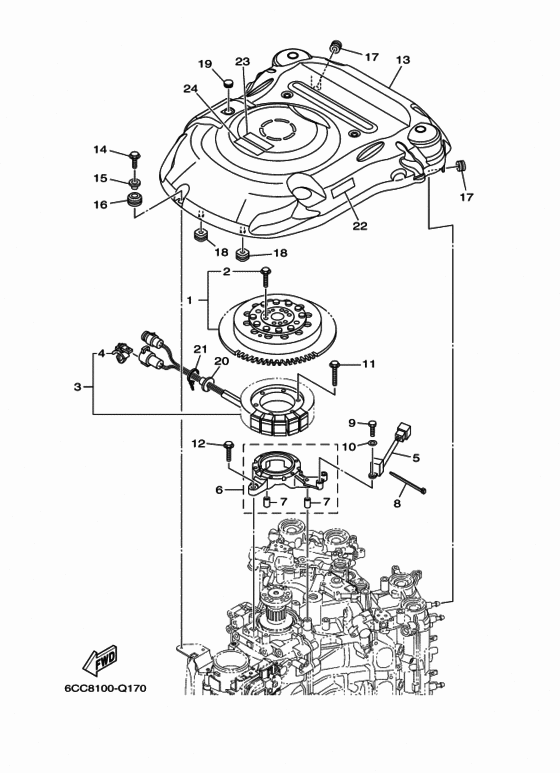

Generator Diagram Yamaha F225 ETL
- Year
- 2016
- Model
- F225D/VF225A, (V-Max)
- Model code
- 6CC8
- Year
- 2016
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (050)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-W8145-10-00 Rotor Assy With Bolts |
6CB-W8145-10-00 |
from US $1,033.56 |
||
|
2
|
2
6AW-W9011-00-00 Bolt Set (For Rotor Assy) |
6AW-W9011-00-00 |
from US $22.95 |
||
| replacement | |||||
|
2
|
2
6EK-W9010-00-00 Bolt Set |
6EK-W9010-00-00 |
from US $22.95 |
||
|
3
|
3
6CB-81410-10-00 Stator Assy |
6CB-81410-10-00 |
US $946.44 |
||
|
4
|
4
90464-12002-00 Clamp |
90464-12002-00 |
from US $2.55 |
||
|
5
|
5
6CB-85580-00-00 Coil, Pulser |
6CB-85580-00-00 |
from US $70.32 |
||
| replacement | |||||
|
5
|
5
6CB-85580-01-00 Coil, Pulser |
6CB-85580-01-00 |
US $134.96 |
||
|
6
|
6
6CB-85561-10-00 Base, Magneto |
6CB-85561-10-00 |
from US $98.65 |
||
|
7
|
7
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.07 |
||
|
8
|
8
90465-13M97-00 Clamp |
90465-13M97-00 |
from US $3.68 |
||
|
9
|
9
97095-05020-00 Bolt |
97095-05020-00 |
from US $1.56 |
||
|
10
|
10
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
11
|
11
95022-06035-00 Bolt, Flange |
95022-06035-00 |
from US $1.42 |
||
|
12
|
12
95895-06030-00 Bolt, Flange |
95895-06030-00 |
US $2.13 |
||
|
13
|
13
6CB-81337-11-00 Cover, Flywheel |
6CB-81337-11-00 |
from US $96.44 |
||
|
14
|
14
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
14
|
14
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
14
|
14
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
14
|
14
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
15
|
15
903-87062-85-00 Collar |
903-87062-85-00 |
from US $1.56 |
||
|
16
|
16
90480-15M31-00 Grommet |
90480-15M31-00 |
from US $3.54 |
||
|
17
|
17
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
18
|
18
6CB-85516-00-00 Spacer |
6CB-85516-00-00 |
US $3.12 |
||
|
19
|
19
904-80160-25-00 Grommet |
904-80160-25-00 |
from US $1.98 |
||
|
20
|
20
6CB-81336-00-00 Grommet |
6CB-81336-00-00 |
from US $4.11 |
||
|
21
|
21
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
21
|
21
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
21
|
21
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
22
|
22
6CB-13437-50-00 Mark, Caution |
6CB-13437-50-00 |
from US $7.08 |
||
|
23
|
23
6EE-81994-40-00 Label, Safety |
6EE-81994-40-00 |
from US $10.20 |
||
| replacement | |||||
|
23
|
23
6EE-H1994-40-00 Label, Safety |
6EE-H1994-40-00 |
from US $10.20 |
||
|
24
|
24
6EE-81994-50-00 Label, Safety |
6EE-81994-50-00 |
from US $10.20 |
||
| replacement | |||||
|
24
|
24
6EE-H1994-50-00 Label, Safety |
6EE-H1994-50-00 |
from US $10.20 |
||
