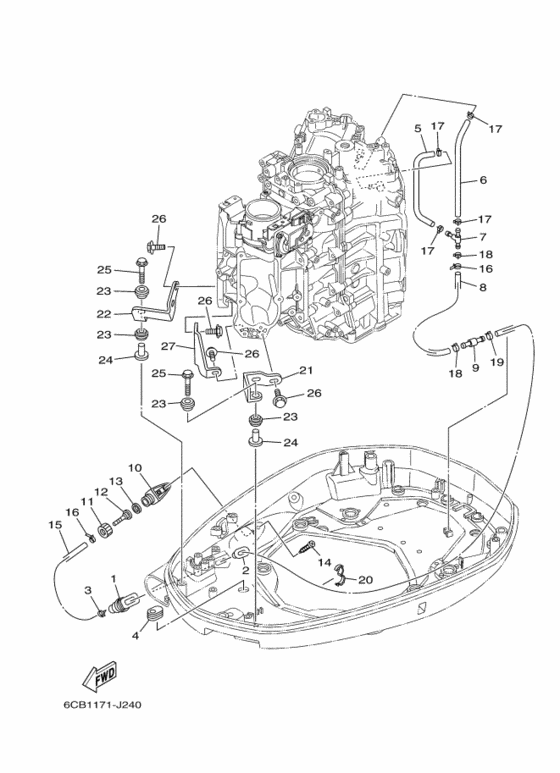

Bottom cowling 2 Diagram Yamaha F225 ETL
- Year
- 2010
- Model
- F225D/VF225A, (V-Max)
- Model code
- 6CC1
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (030)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6BG-42724-00-00 Grommet |
6BG-42724-00-00 |
US $5.81 |
||
| replacement | |||||
|
1
|
1
6BG-42724-01-00 GROMMET |
6BG-42724-01-00 |
from US $5.81 |
||
|
2
|
2
6BG-42384-00-00 Seal, Cap |
6BG-42384-00-00 |
from US $2.83 |
||
|
3
|
3
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
3
|
3
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
3
|
3
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
4
|
4
61A-42727-00-00 Grommet |
61A-42727-00-00 |
US $4.82 |
||
|
5
|
5
6CB-24315-00-00 Pipe 5 |
6CB-24315-00-00 |
from US $16.58 |
||
|
6
|
6
904-45140-21-00 Hose (L185) |
904-45140-21-00 |
from US $9.92 |
||
|
7
|
7
6AW-42169-00-00 Joint |
6AW-42169-00-00 |
from US $6.80 |
||
|
8
|
8
904-45160-15-00 Hose (L300) |
904-45160-15-00 |
from US $38.13 |
||
|
9
|
9
6AW-42785-00-00 Pipe |
6AW-42785-00-00 |
from US $3.26 |
||
|
10
|
10
6AW-12572-00-00 Adapter |
6AW-12572-00-00 |
from US $9.35 |
||
|
11
|
11
6R3-12581-00-00 Joint, Hose 1 |
6R3-12581-00-00 |
from US $2.66 |
||
|
12
|
12
6AW-12582-00-00 Joint, Hose 2 |
6AW-12582-00-00 |
from US $3.26 |
||
|
13
|
13
6R3-12583-00-00 Gasket, Hose Joint |
6R3-12583-00-00 |
from US $1.13 |
||
|
14
|
14
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $1.66 |
||
|
15
|
15
904-45140-19-00 Hose (L1460) |
904-45140-19-00 |
from US $37.72 |
||
|
16
|
16
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
16
|
16
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
16
|
16
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
17
|
17
904-67130-A5-00 Clip |
904-67130-A5-00 |
from US $2.13 |
||
|
18
|
18
904-67140-A8-00 Clip |
904-67140-A8-00 |
from US $3.12 |
||
|
19
|
19
904-67140-A9-00 Clip |
904-67140-A9-00 |
from US $2.69 |
||
|
20
|
20
90464-16001-00 Clamp |
90464-16001-00 |
from US $1.84 |
||
|
21
|
21
6CB-42643-00-00 Plate, Clamp |
6CB-42643-00-00 |
from US $27.49 |
||
|
22
|
22
6CB-42644-00-00 Plate, Clamp 2 |
6CB-42644-00-00 |
from US $49.46 |
||
|
23
|
23
904-80140-29-00 Grommet |
904-80140-29-00 |
from US $1.70 |
||
|
24
|
24
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
25
|
25
901-1906M-61-00
Bolt, With Washer
|
901-1906M-61-00 |
— | ||
| replacements | |||||
|
25
|
25
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
25
|
25
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.39 |
||
|
26
|
26
90105-06039-00 Bolt, Flange |
90105-06039-00 |
from US $1.70 |
||
|
27
|
27
6CB-42744-00-00 Stay |
6CB-42744-00-00 |
from US $23.66 |
||
