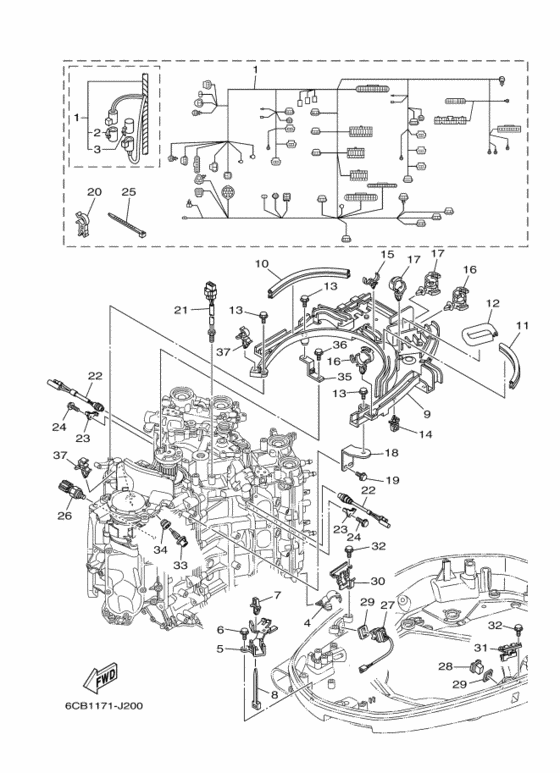

Electrical 4 Diagram Yamaha F225 ETL
- Year
- 2010
- Model
- F225D/VF225A, (V-Max)
- Model code
- 6CC1
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (030)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-82590-00-00 Wire Harness Assy |
6CB-82590-00-00 |
US $1,834.80 |
||
| replacements | |||||
|
1
|
1
6CB-82590-03-00 WIRE HARNESS ASSY |
6CB-82590-03-00 |
US $1,206.77 |
||
|
1
|
1
6CB-82590-05-00 Wire Harness Assy |
6CB-82590-05-00 |
US $1,823.86 |
||
|
2
|
2
6P2-82582-00-00 Cap 1 (Female) |
6P2-82582-00-00 |
from US $4.53 |
||
|
3
|
3
6P2-82582-10-00 Cap 1 (Male) |
6P2-82582-10-00 |
from US $6.94 |
||
|
4
|
4
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.70 |
||
|
5
|
5
6CB-82594-00-00 Clamp |
6CB-82594-00-00 |
from US $37.99 |
||
|
6
|
6
95895-06012-00 Bolt, Flange |
95895-06012-00 |
from US $1.28 |
||
|
7
|
7
90464-06001-00 Clamp |
90464-06001-00 |
from US $1.84 |
||
|
8
|
8
904-6513M-24-00
Band, Switch Cord
|
904-6513M-24-00 |
— | ||
| replacement | |||||
|
8
|
8
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
9
|
9
6CB-82589-00-00 Protecter, Wire Harness |
6CB-82589-00-00 |
US $91.05 |
||
| replacement | |||||
|
9
|
9
6CB-82589-01-00 Protecter, Wire Harness |
6CB-82589-01-00 |
from US $91.05 |
||
|
10
|
10
6BG-42617-00-00 Damper, Form |
6BG-42617-00-00 |
from US $24.79 |
||
|
11
|
11
6CB-42617-00-00 Damper, Form |
6CB-42617-00-00 |
from US $23.24 |
||
|
12
|
12
6CB-42629-00-00 Seal |
6CB-42629-00-00 |
from US $9.49 |
||
|
13
|
13
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
13
|
13
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
13
|
13
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
13
|
13
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
14
|
14
90464-11121-00 Clamp |
90464-11121-00 |
from US $1.84 |
||
|
15
|
15
90464-18246-00 Clamp(4Tr) |
90464-18246-00 |
from US $1.28 |
||
|
16
|
16
90464-12183-00 Clamp |
90464-12183-00 |
from US $3.83 |
||
|
17
|
17
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.70 |
||
|
18
|
18
6CB-82388-00-00 Plate |
6CB-82388-00-00 |
from US $27.20 |
||
|
19
|
19
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
19
|
19
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
19
|
19
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
19
|
19
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
20
|
20
90464-23001-00 Clamp |
90464-23001-00 |
from US $3.54 |
||
|
21
|
21
6CB-85790-00-00 Thermosensor Assy |
6CB-85790-00-00 |
from US $92.24 |
||
|
22
|
22
6P2-82560-01-00 Thermo Switch Assy |
6P2-82560-01-00 |
from US $44.07 |
||
|
23
|
23
6E9-82588-00-00 Plaque |
6E9-82588-00-00 |
from US $5.24 |
||
|
24
|
24
95895-06012-00 Bolt, Flange |
95895-06012-00 |
from US $1.28 |
||
|
25
|
25
90465-14M66-00 Clamp |
90465-14M66-00 |
from US $3.54 |
||
|
26
|
26
6AW-83651-00-00 Sender, Oil Pressure |
6AW-83651-00-00 |
US $225.20 |
||
| replacement | |||||
|
26
|
26
6AW-83651-01-00 Sender, Oil Pressure |
6AW-83651-01-00 |
from US $225.20 |
||
|
27
|
27
69J-82563-00-00
Trim & Tilt Switch Assy
|
69J-82563-00-00 |
— | ||
| replacement | |||||
|
27
|
27
69J-82563-01-00 Trim & Tilt Switch Assy |
69J-82563-01-00 |
from US $69.10 |
||
|
28
|
28
69J-42723-00-8D
Cover, Bottom
|
69J-42723-00-8D |
— | ||
| replacement | |||||
|
28
|
28
69J-42723-01-00 Cover, Bottom |
69J-42723-01-00 |
from US $30.46 |
||
|
29
|
29
69J-82587-00-00 Gasket |
69J-82587-00-00 |
US $5.38 |
||
|
30
|
30
63P-83614-01-00 Bracket |
63P-83614-01-00 |
from US $18.28 |
||
|
31
|
31
63P-83614-01-00 Bracket |
63P-83614-01-00 |
from US $18.28 |
||
|
32
|
32
95895-06012-00 Bolt, Flange |
95895-06012-00 |
from US $1.28 |
||
|
33
|
33
63P-85886-00-00 Sensor, Air Temperature |
63P-85886-00-00 |
from US $56.81 |
||
|
34
|
34
63P-14435-00-00 Grommet |
63P-14435-00-00 |
from US $5.53 |
||
|
35
|
35
6CB-81952-00-00 Holder, Relay |
6CB-81952-00-00 |
from US $20.12 |
||
|
36
|
36
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
36
|
36
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
36
|
36
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
36
|
36
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
37
|
37
90464-09129-00 Clamp |
90464-09129-00 |
from US $1.98 |
||
