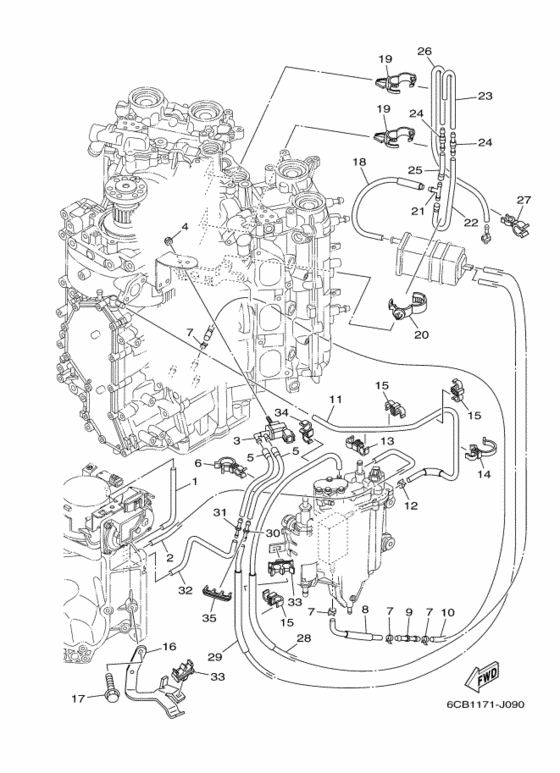

Intake 2 Diagram Yamaha F225 ETL
- Year
- 2010
- Model
- F225D/VF225A, (V-Max)
- Model code
- 6CC1
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (030)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-13533-00-00 Hose, Vacuum Sensing 4 |
6CB-13533-00-00 |
from US $6.38 |
||
|
2
|
2
6CB-13532-00-00 Hose, Vacuum Sensing 3 |
6CB-13532-00-00 |
from US $25.36 |
||
|
3
|
3
6C5-86120-00-00 Solenoid Valve Assy |
6C5-86120-00-00 |
from US $124.48 |
||
|
4
|
4
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
5
|
5
6CB-2416A-00-00 Hose |
6CB-2416A-00-00 |
from US $6.38 |
||
|
6
|
6
90464-23001-00 Clamp |
90464-23001-00 |
from US $3.54 |
||
|
7
|
7
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
7
|
7
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
7
|
7
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
8
|
8
6CB-12482-01-00 Pipe 2 |
6CB-12482-01-00 |
from US $14.03 |
||
|
9
|
9
6CB-24376-00-00 Pipe, Joint 1 |
6CB-24376-00-00 |
from US $17.57 |
||
|
10
|
10
6CB-1248A-00-00 Pipe 8 |
6CB-1248A-00-00 |
from US $18.70 |
||
|
11
|
11
6CB-12484-00-00 Pipe 4 |
6CB-12484-00-00 |
from US $33.15 |
||
|
12
|
12
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
12
|
12
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
12
|
12
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
13
|
13
90464-12010-00 Clamp |
90464-12010-00 |
from US $3.12 |
||
|
14
|
14
904-64260-02-00 Clamp |
904-64260-02-00 |
from US $2.13 |
||
|
15
|
15
90464-09013-00 Clamp |
90464-09013-00 |
from US $3.12 |
||
|
16
|
16
6CB-13782-00-00 Stay |
6CB-13782-00-00 |
from US $18.42 |
||
|
17
|
17
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
17
|
17
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
17
|
17
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
17
|
17
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
18
|
18
6CB-13545-00-00 Hose 1 |
6CB-13545-00-00 |
from US $19.13 |
||
|
19
|
19
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.70 |
||
|
20
|
20
90464-12183-00 Clamp |
90464-12183-00 |
from US $3.83 |
||
|
21
|
21
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $6.94 |
||
|
22
|
22
6CB-13546-00-00 Hose 2 |
6CB-13546-00-00 |
US $11.48 |
||
|
23
|
23
6CB-13547-00-00 Hose 3 |
6CB-13547-00-00 |
from US $9.49 |
||
|
24
|
24
6E5-21744-00-00 Breather |
6E5-21744-00-00 |
from US $6.23 |
||
|
25
|
25
6CB-13548-00-00 Hose, Air 4 |
6CB-13548-00-00 |
from US $3.54 |
||
|
26
|
26
6CB-12483-00-00 Pipe 3 |
6CB-12483-00-00 |
US $8.78 |
||
| replacements | |||||
|
26
|
26
6CB-12483-01-00 Pipe 3 |
6CB-12483-01-00 |
US $8.78 |
||
|
26
|
26
6KA-12483-00-00 Pipe 3 |
6KA-12483-00-00 |
from US $8.78 |
||
|
27
|
27
90464-10010-00 Clamp |
90464-10010-00 |
from US $5.10 |
||
|
28
|
28
6CB-1475A-00-00 Pipe 1 |
6CB-1475A-00-00 |
from US $30.04 |
||
|
29
|
29
6CB-1475F-00-00 Pipe 3 |
6CB-1475F-00-00 |
from US $26.35 |
||
|
30
|
30
6G8-24376-00-00 Pipe, Joint 1 |
6G8-24376-00-00 |
from US $4.53 |
||
|
31
|
31
6CB-14989-00-00 Orifice, Air Vent |
6CB-14989-00-00 |
from US $19.84 |
||
|
32
|
32
6CB-1475G-00-00 Pipe 4 |
6CB-1475G-00-00 |
from US $6.13 |
||
|
33
|
33
90464-11012-00 Clamp |
90464-11012-00 |
from US $1.70 |
||
|
34
|
34
90464-12010-00 Clamp |
90464-12010-00 |
from US $3.12 |
||
|
35
|
35
904-64100-11-00 Clamp |
904-64100-11-00 |
from US $1.56 |
||
