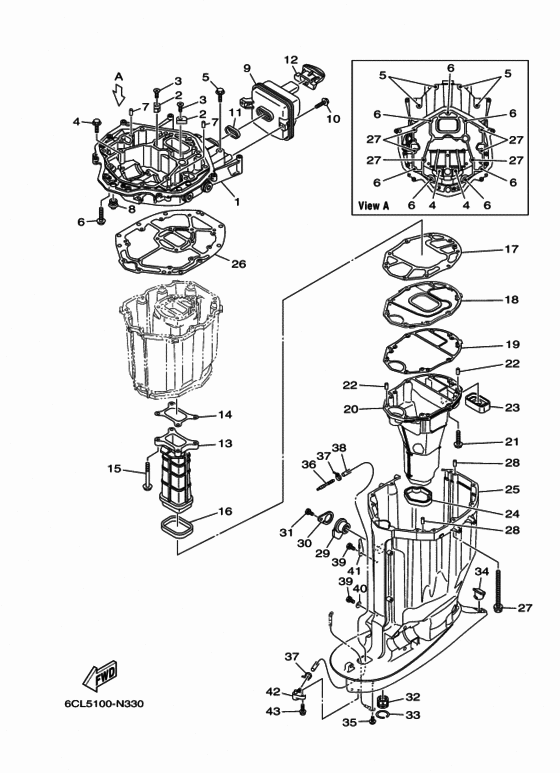

Upper casing Diagram Yamaha F225 ETX
- Year
- 2014
- Model
- F225F
- Model code
- 6CL5
- Year
- 2014
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Canada (130)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CE-41137-00-CA Guide, Exhaust |
6CE-41137-00-CA |
US $760.32 |
||
| replacement | |||||
|
1
|
1
6CE-41137-01-00 Guide, Exhaust |
6CE-41137-01-00 |
from US $760.32 |
||
|
2
|
2
63P-11325-11-00 Anode |
63P-11325-11-00 |
from US $7.51 |
||
|
3
|
3
90151-06M02-00 Screw, Countersunk |
90151-06M02-00 |
from US $1.66 |
||
|
4
|
4
90119-08102-00 Bolt, With Washer |
90119-08102-00 |
US $5.67 |
||
|
5
|
5
97575-10545-00 Bolt, With Washer |
97575-10545-00 |
US $4.82 |
||
| replacement | |||||
|
5
|
5
97E-75105-45-00 BOLT HEXAGON WW DEEP RECESS |
97E-75105-45-00 |
from US $3.97 |
||
|
6
|
6
97575-10535-00 Bolt, With Washer |
97575-10535-00 |
US $3.54 |
||
|
7
|
7
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.30 |
||
|
8
|
8
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
9
|
9
6CB-14750-00-00 Silencer Assy |
6CB-14750-00-00 |
US $52.22 |
||
| replacement | |||||
|
9
|
9
6CB-14750-A0-00 Silencer Assy |
6CB-14750-A0-00 |
from US $52.22 |
||
|
10
|
10
958-75060-20-00 Bolt, Flange |
958-75060-20-00 |
US $1.56 |
||
| replacements | |||||
|
10
|
10
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
10
|
10
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
|
10
|
10
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
11
|
11
6CB-14755-00-00 Gasket, Silencer |
6CB-14755-00-00 |
from US $3.40 |
||
|
12
|
12
6CB-42769-01-00 Seal, Rubber |
6CB-42769-01-00 |
US $15.73 |
||
| replacement | |||||
|
12
|
12
6CB-42769-02-00 SEAL RUBBER |
6CB-42769-02-00 |
from US $15.73 |
||
|
13
|
13
6CB-41132-00-9S Manifold, Exhaust |
6CB-41132-00-9S |
US $151.98 |
||
| replacement | |||||
|
13
|
13
6CB-41132-01-00 Manifold, Exhaust |
6CB-41132-01-00 |
from US $151.98 |
||
|
14
|
14
6CB-41134-00-00 Gasket, Exhaust Manifold |
6CB-41134-00-00 |
from US $9.49 |
||
|
15
|
15
97575-08560-00 Bolt, With Washer |
97575-08560-00 |
US $2.83 |
||
|
16
|
16
6CB-41138-00-00 Seal, Ext. 1 |
6CB-41138-00-00 |
from US $13.60 |
||
|
17
|
17
6CB-41135-00-00 Gasket, Exhaust Manifold |
6CB-41135-00-00 |
from US $27.06 |
||
|
18
|
18
6CE-45181-00-9S Plate |
6CE-45181-00-9S |
US $126.55 |
||
| replacement | |||||
|
18
|
18
6CE-45181-01-00 Plate |
6CE-45181-01-00 |
from US $126.55 |
||
|
19
|
19
6CE-41136-00-00 Gasket, Exhaust Manifold 4 |
6CE-41136-00-00 |
from US $20.54 |
||
|
20
|
20
6CE-14711-00-9S Muffler 1 |
6CE-14711-00-9S |
US $570.24 |
||
| replacement | |||||
|
20
|
20
6CE-14711-01-00 Muffler 1 |
6CE-14711-01-00 |
from US $570.24 |
||
|
21
|
21
97575-08535-00 Bolt, With Washer |
97575-08535-00 |
US $2.13 |
||
| replacements | |||||
|
21
|
21
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
21
|
21
97E75-08535-00 Bolt, Hexagon W/w Deep Recess |
97E75-08535-00 |
from US $2.13 |
||
|
22
|
22
93606-19M23-00 Pin, Dowel |
93606-19M23-00 |
from US $3.69 |
||
|
23
|
23
6CE-45127-00-00 Seal |
6CE-45127-00-00 |
from US $5.81 |
||
|
24
|
24
6CE-45123-00-00 Gasket, Muffler |
6CE-45123-00-00 |
from US $12.33 |
||
|
25
|
25
6CE-45111-00-8D Casing, Upper |
6CE-45111-00-8D |
US $824.51 |
||
| replacement | |||||
|
25
|
25
6CE-45111-01-8D Casing, Upper |
6CE-45111-01-8D |
from US $897.60 |
||
|
26
|
26
6CB-45113-00-00 Gasket, Upper Casing |
6CB-45113-00-00 |
US $49.74 |
||
|
27
|
27
90119-10007-00 Bolt, With Washer |
90119-10007-00 |
from US $25.36 |
||
|
28
|
28
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.30 |
||
|
29
|
29
6BB-15316-00-00 Damper 1 |
6BB-15316-00-00 |
US $11.05 |
||
|
30
|
30
6BB-45152-01-00 Cover, Upper Casing 2 |
6BB-45152-01-00 |
from US $24.65 |
||
|
31
|
31
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
31
|
31
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
32
|
32
69J-45318-01-00 Bushing, Drive Shaft |
69J-45318-01-00 |
from US $46.42 |
||
|
33
|
33
93420-36M01-00 Circlip |
93420-36M01-00 |
from US $5.64 |
||
|
34
|
34
61A-45155-00-00 Cap |
61A-45155-00-00 |
US $15.02 |
||
| replacement | |||||
|
34
|
34
61A-45155-01-00 CAP |
61A-45155-01-00 |
from US $4.32 |
||
|
35
|
35
95895-06010-00 Bolt, Flange |
95895-06010-00 |
US $2.13 |
||
| replacement | |||||
|
35
|
35
95880-06010-00 Bolt, Flange |
95880-06010-00 |
from US $1.56 |
||
|
36
|
36
6E5-83558-00-00 End, NippleEXCEPT LAN SPEED |
6E5-83558-00-00 |
from US $3.64 |
||
|
37
|
37
904-6511M-10-00
Clamp
EXCEPT LAN SPEED |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
37
|
37
80L-26397-00-00 BandEXCEPT LAN SPEED |
80L-26397-00-00 |
from US $1.21 |
||
|
37
|
37
904-65100-98-00 ClampEXCEPT LAN SPEED |
904-65100-98-00 |
from US $1.34 |
||
|
38
|
38
904-45070-32-00 Hose (L1920)EXCEPT LAN SPEED |
904-45070-32-00 |
from US $13.88 |
||
|
39
|
39
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
39
|
39
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
40
|
40
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
41
|
41
904-62100-61-00 Clamp |
904-62100-61-00 |
from US $8.50 |
||
|
42
|
42
63P-45379-00-00 Nipple, Hose |
63P-45379-00-00 |
from US $4.82 |
||
|
43
|
43
90119-06M18-00 Bolt Nla 10/95 |
90119-06M18-00 |
US $4.68 |
||
| replacement | |||||
|
43
|
43
90119-06M48-00 Bolt, With Washer |
90119-06M48-00 |
from US $4.68 |
||
