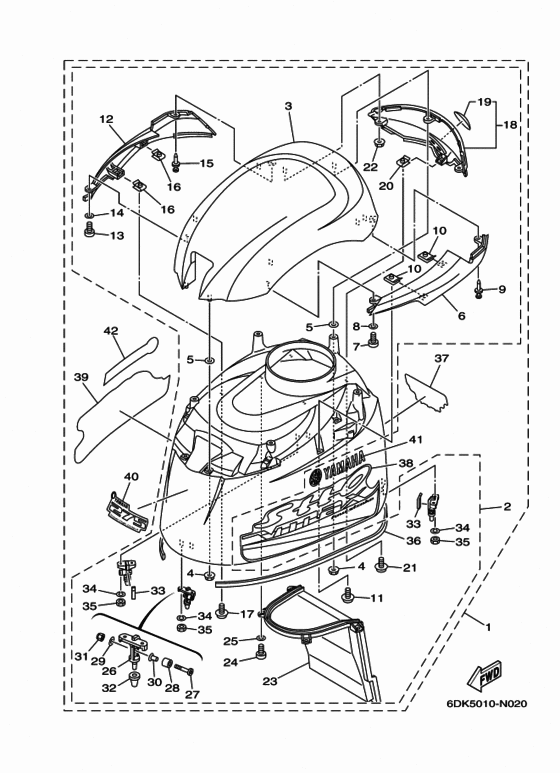

トツプカウリング Diagram Yamaha F225 ETL
- Year
- 2014
- Model
- F225G, (V-Max)
- Model code
- 6DM5
- Year
- 2014
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- Japan (020)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CC-42610-01-00 Top Cowling Assy |
6CC-42610-01-00 |
US $2,362.80 |
||
| replacements | |||||
|
1
|
1
6CC-42610-04-00 Top Cowling Assy |
6CC-42610-04-00 |
US $2,362.80 |
||
|
1
|
1
99999-04487-00 Top Cowling Assy |
99999-04487-00 |
US $2,843.65 |
||
|
2
|
2
6CB-4261A-00-00 Top Cowling W/o Graphics |
6CB-4261A-00-00 |
US $1,914 |
||
|
3
|
3
6CB-42613-00-NA Molding, Air Duct |
6CB-42613-00-NA |
US $623.04 |
||
| replacement | |||||
|
3
|
3
99999-04168-00 GRAPHIC, SIDE 1 |
99999-04168-00 |
from US $429.99 |
||
|
4
|
4
90179-06029-00 Nut |
90179-06029-00 |
US $2.69 |
||
| replacement | |||||
|
4
|
4
90179-06M24-00 Nut |
90179-06M24-00 |
from US $2.69 |
||
|
5
|
5
6CB-42545-00-00 Washer, Plain |
6CB-42545-00-00 |
from US $1.70 |
||
|
6
|
6
6CB-42626-00-NA Louver, 1 |
6CB-42626-00-NA |
from US $104.59 |
||
|
7
|
7
977-80606-16-00
Screw, Tapping
|
977-80606-16-00 |
— | ||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
9
|
9
902-69050-05-00 Rivet |
902-69050-05-00 |
from US $1.70 |
||
|
10
|
10
901-83051-A5-00 Nut, Spring |
901-83051-A5-00 |
from US $5.38 |
||
|
11
|
11
979-80052-14-00 Screw, With Washer |
979-80052-14-00 |
from US $1.35 |
||
|
12
|
12
6CB-42636-00-NA Louver 2 |
6CB-42636-00-NA |
from US $104.59 |
||
|
13
|
13
977-80606-16-00
Screw, Tapping
|
977-80606-16-00 |
— | ||
|
14
|
14
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
15
|
15
902-69050-05-00 Rivet |
902-69050-05-00 |
from US $1.70 |
||
|
16
|
16
901-83051-A5-00 Nut, Spring |
901-83051-A5-00 |
from US $5.38 |
||
|
17
|
17
979-80052-14-00 Screw, With Washer |
979-80052-14-00 |
from US $1.35 |
||
|
18
|
18
6CB-Y426J-00-00 Rear Panel Assy |
6CB-Y426J-00-00 |
from US $432.15 |
||
|
19
|
19
6AW-42697-10-00 Tuning Fork Mark |
6AW-42697-10-00 |
from US $59 |
||
|
20
|
20
901-83051-A5-00 Nut, Spring |
901-83051-A5-00 |
from US $5.38 |
||
|
21
|
21
979-80052-14-00 Screw, With Washer |
979-80052-14-00 |
from US $1.35 |
||
|
22
|
22
90179-06029-00 Nut |
90179-06029-00 |
US $2.69 |
||
| replacement | |||||
|
22
|
22
90179-06M24-00 Nut |
90179-06M24-00 |
from US $2.69 |
||
|
23
|
23
6CB-42635-00-00 Duct, Water Separator |
6CB-42635-00-00 |
US $52.09 |
||
|
24
|
24
977-80606-16-00
Screw, Tapping
|
977-80606-16-00 |
— | ||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
26
|
26
6CB-42647-00-00
Holder, Clamp Band
|
6CB-42647-00-00 |
— | ||
| replacement | |||||
|
26
|
26
6CB-42647-A0-00 Holder, Clamp Band |
6CB-42647-A0-00 |
from US $37.76 |
||
|
27
|
27
901-11080-78-00 Bolt,hex Socket Button |
901-11080-78-00 |
from US $4.39 |
||
|
28
|
28
903-87100-94-00 Collar |
903-87100-94-00 |
from US $2.55 |
||
|
29
|
29
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
30
|
30
90387-08M45-00 Collar |
90387-08M45-00 |
from US $4.11 |
||
|
31
|
31
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.30 |
||
|
32
|
32
6AW-42663-00-00 Damper |
6AW-42663-00-00 |
US $2.98 |
||
|
33
|
33
6CB-42134-00-00 Cover |
6CB-42134-00-00 |
US $1.21 |
||
|
34
|
34
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
34
|
34
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
35
|
35
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
36
|
36
6CB-42628-00-00 Seal |
6CB-42628-00-00 |
from US $182.37 |
||
|
37
|
37
6CC-42678-00-00 Graphic, Rear |
6CC-42678-00-00 |
US $30.89 |
||
| replacement | |||||
|
37
|
37
6CC-42678-01-00 Graphic, Rear |
6CC-42678-01-00 |
from US $30.89 |
||
|
38
|
38
6CB-42675-10-00 Graphic, Side 1 |
6CB-42675-10-00 |
from US $134.71 |
||
|
39
|
39
6CB-42676-10-00 Graphic, Side 2 |
6CB-42676-10-00 |
from US $134.71 |
||
|
40
|
40
6CC-42677-00-00 Graphic, Front |
6CC-42677-00-00 |
US $30.89 |
||
| replacement | |||||
|
40
|
40
6CC-42677-01-00 Graphic, Front |
6CC-42677-01-00 |
from US $30.89 |
||
|
41
|
41
6CB-42681-01-00 Mark, Cowling |
6CB-42681-01-00 |
US $46.15 |
||
| replacement | |||||
|
41
|
41
6CB-42681-02-00 Mark, Cowling |
6CB-42681-02-00 |
from US $46.15 |
||
|
42
|
42
6CB-42682-01-00 Mark, Cowling |
6CB-42682-01-00 |
US $46.15 |
||
| replacement | |||||
|
42
|
42
6CB-42682-02-00 Mark, Cowling |
6CB-42682-02-00 |
from US $46.15 |
||
